Overview Of System Components Of Adaptive Brake - GF42.47-P-9996FG
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213 (except 213.050)
up to model year 2021

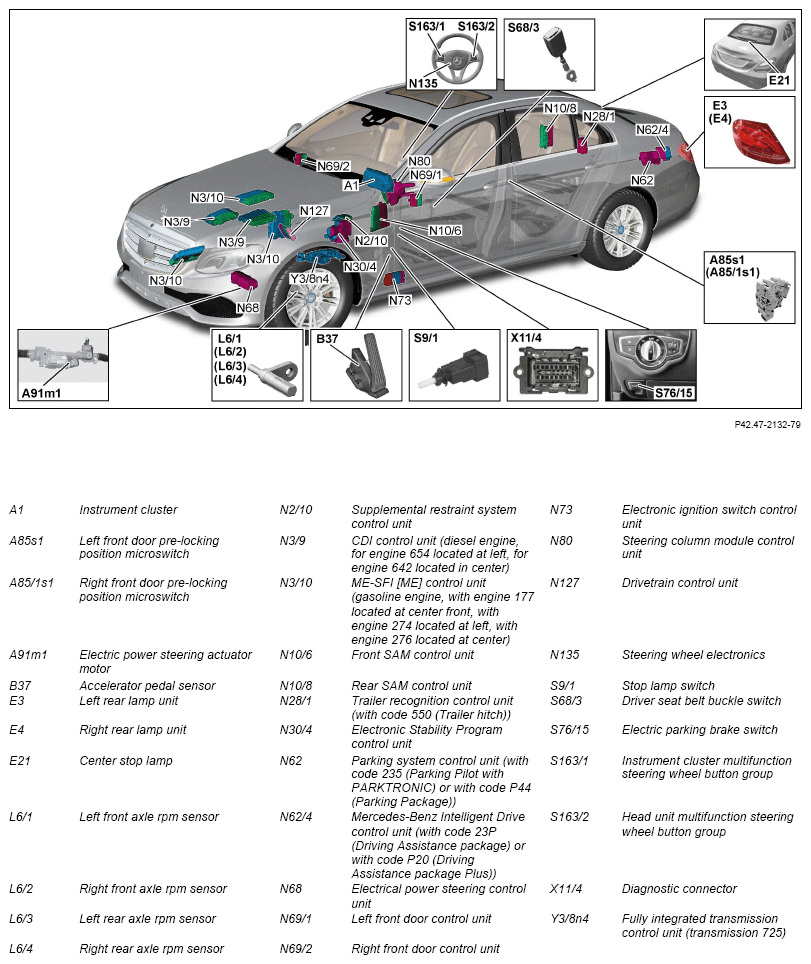

Shown on model 213.0

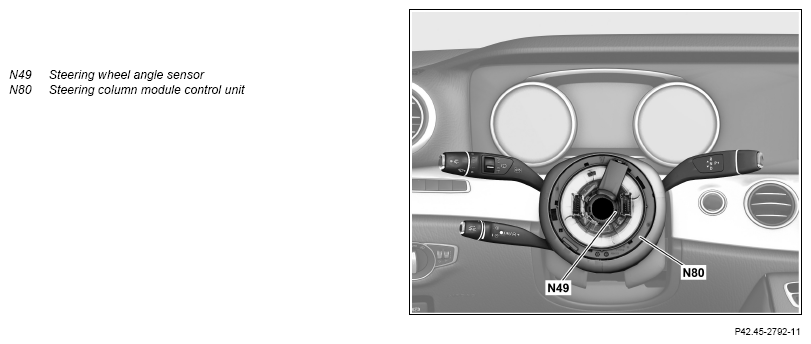

Shown on model 213.0

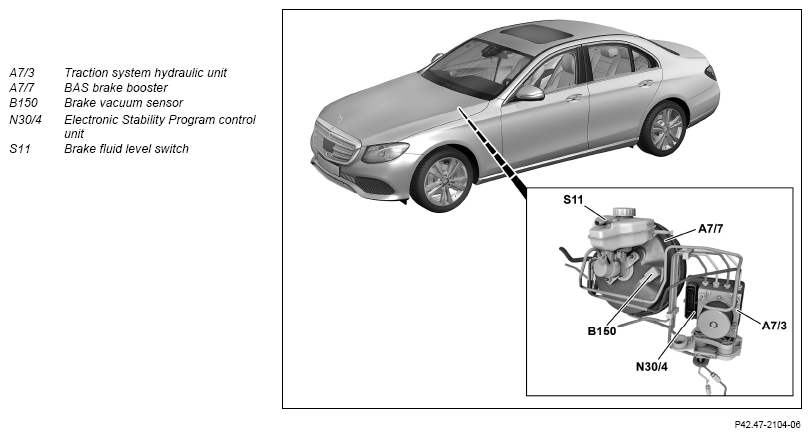

Shown on model 213.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FG | |
| Component description for CDI control unit | Model 213 (except 213.050) with engine 642.8 up to model year 2021 N3/9 | GF07.16-P-6000OGW | |
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORE | ||
| Model 213 with engine 656.9 up to model year 2021 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 213 (except 213.050) with engine 177.9 up to model year 2021 N3/10 | GF07.61-P-6000MNA | |
| Model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRD | ||
| Model 213 (except 213.050) with engine 276.8 up to model year 2021 N3/10 | GF07.61-P-6000MND | ||
| Model 213 (except 213.050) with engine 264.9 up to model year 2021 N3/10 | GF07.61-P-6000MRG | ||
| Model 213 (except 213.050) with engine 256.9 up to model year 2021 N3/10 | GF07.61-P-6000MRT | ||
| Model 213.053 with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRP | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FG | |
| Component description for trailer recognition control unit | Model 213 (except 213.050) up to model year 2021 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050FG | |
| Component description for Electronic Stability Program control unit | Model 213 (except 213.016/050/053/153/216) up to model year 2021 N30/4 | GF42.45-P-5119FG | |
| Model 213.016/216 up to model year 2021 Model 213.053 with engine 274.9 up to model year 2021 N30/4 |
GF42.45-P-5119FGH | ||
| Parking system control unit, component description | Model 213 (except 213.050) up to model year 2021 with code 235 (Active Parking Assist) Model 213 (except 213.050) up to model year 2021 with code P44 (Parking package) N62 |
GF54.65-P-5004FG | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 213 (except 213.050) up to model year 2021 with code 23P (Drive package) Model 213 (except 213.050) up to model year 2021 with code P20 (Driving assistant package Plus) N62/4 |
GF30.30-P-3312FG | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 (except 213.050) up to model year 2019 N80 | GF54.21-P-6051FG | |
| Model 213 (except 213.050) as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FGA | ||
| Drivetrain control unit, component description | Model 213 (except 213.050) with engine 177.9 up to model year 2021 N127 | GF54.21-P-2141MNA | |
| Model 213 (except 213.050) with engine 264.9, 274.9, 276.8 up to model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 | GF54.21-P-2141ORC | ||
| Model 213 (except 213.050) with engine 642.8 up to model year 2021 N127 Model 213 (except 213.050) with engine 256.9 up to model year 2021 N127 |
GF54.21-P-2141LF | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N127 | GF54.21-P-2141ORE | ||
| Model 213 (except 213.050) with engine 656.9 up to model year 2021 N127 | GF54.21-P-2141OGS | ||
| Component description for fully integrated transmission control unit | Model 213 (except 213.050) with transmission 725.0 (except 725.007/017/096) up to model year 2021 Y3/8n4 | GF27.60-P-5165ANL | |
| Model 213 (except 213.050) with transmission 725.007/017 up to model year 2021 Y3/8n4 | GF27.60-P-5165AHU | ||
| Model 213 (except 213.050) with transmission 725.096 up to model year 2021 Y3/8n4 | GF27.60-P-5165ANO | ||
| Table of contents for function description of ADAPTIVE BRAKE | GF42.47-P-0998FG |
