Parking System Control Unit, Component Description - GF54.65-P-5004FG
Model 213 up to model year 2021 with code 235 (Active Parking Assist)
Model 213 up to model year 2021 with code P44 (Parking package)
Shown on model 213.0

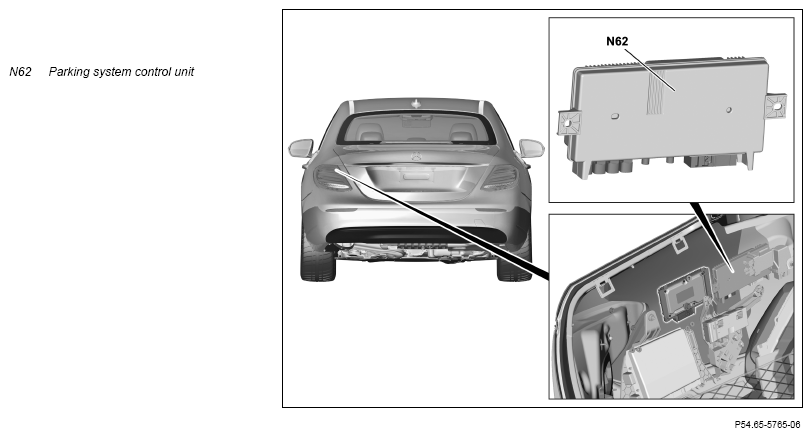

Location
The parking system control unit is located in the trunk on the left sidewall.
Tasks
The parking system control unit has the following tasks:
- Reading in of signals
- Evaluation of input factors
- Actuation of components
- Output of signals
Reading in of signals
The input factors are read in via the following connections:
- Direct line
- HSVL line (high-speed video link)
- Suspension FlexRay (Flex E) Direct line
The signals from the following components are read via direct lines:
- Remote Parking Pilot/stationary heater antenna (A2/164) (with code 503 (Preinstallation for Remote Parking Pilot))
- Remote Parking Pilot/stationary heater antenna splitter (A2/167) (with code 228 (Stationary heater) and code 503 (Preinstallation for Remote Parking Pilot))
- Outer left front parking system distance sensor (B8/1)
- Center left front parking system distance sensor (B8/2)
- Inner left front parking system distance sensor (B8/3)
- Inner right front parking system distance sensor (B8/4)
- Center right front parking system distance sensor (B8/5)
- Outer right front parking system distance sensor (B8/6)
- Outer right rear parking system distance sensor (B8/7)
- Inner right rear parking system distance sensor (B8/8)
- Inner left rear parking system distance sensor (B8/9)
- Outer left rear parking system distance sensor (B8/10)
- Center left rear parking system distance sensor (B8/11)
- Center right rear parking system distance sensor (B8/12)
- Front 360° camera (B84/9) (with code 501 (360° camera))
- Rear camera for 360° Camera (B84/10) (with code 501 (360° camera))
Chassis FlexRay
The parking system control unit also reads in the following information over the suspension FlexRay:
- Terminal status of terminal 15
- Signal "Engine running" or "Drive train operational"
- Wheel speed and wheel rotation direction
- Engaged gear (transmission 716) or engaged gear range (transmission 725)
- Electrical power steering control unit status (N68)
- Electric power steering torque sensor (A91 b1) signal (toothed rack position)
- Front wheel angle
- Steering torque of the driver (Hands-Off/Hands-On Detection status)
- Remote Parking Pilot status (with code 503 (Pre-installation for Remote Parking Pilot))
- Status of parking space selection
- Parking brake, brake, ESP® status
- Remote Park Control KEYLESS GO status (with code 503 (Preinstallation for Remote Parking Pilot))
- Trailer operation status (with code 550 (Trailer hitch))
- Blind Spot Assist warning (with code 234 (Blind Spot Assist) or code 237 (Active Blind Spot Assist)) or Lane Keeping Assist warning (with code 238 (Active Lane Keeping Assist))
HSVL line
The image data from each of the following assembly parts is read in via a separate HSVL line:
- Reversing camera (B84/3) (with CODE 218 (Reversing camera))
- Left outside mirror 360° camera (B84/7) (with code 501 (360° camera))
- Right outside mirror 360° camera (B84/8) (with code 501 (360° camera))
- Blind Spot Assist brake request (with code 234 (Blind Spot Assist) or code 237 (Active Blind Spot Assist)) or Lane Keeping Assist brake request (with code 238 (Active Lane Keeping Assist))
- Steering wheel angle and steering wheel velocity
- Vehicle level (with code 489 (AIR BODY CONTROL))
- Status of PARKTRONIC button
- Status of parking system button
- Accelerator pedal position
- Ambient illumination status (with code 501 (360° camera))
- Outside mirror housing status (with code P49 (Mirror package))
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The parking system control unit actuates the parking system distance sensors and the parking system speaker (H13/4) via direct lines.
The signals for activation of the Audio/COMMAND display (A40/8) are sent by the parking system control unit via chassis FlexRay.
Output of signals
The parking system control unit also sends the following information or requests over the suspension FlexRay:
- Status of parking system
- Request to engage gear range
- Request to increase/reduce braking torque
- Control mode request (speed control/cruise control)
- Request for front wheel angle (steering angle)
- Information on distance to obstacle (remaining distance to obstacle)
- Request for braking mode
- Request for folding in outside mirror housings (with code P49 (Mirror package))
- Request for rear camera cover
- Remote Park Control request (with code 503 (Preinstallation for Remote Parking Pilot))
- Remote Park Control lock vehicle request (with code 503 (Preinstallation for Remote Parking Pilot))
- Request for ambient illumination (with code 501 (360° camera))
- Request for parking system display in Audio/COMMAND display
- Request to issue system or warning messages
The parking system control unit sends the image data via a HSVL line to the head unit (A26/17).
Variants
- Advanced Park Assist (as of 01.06.2017 with code 235 (Parking Pilot with PARKTRONIC))
- Parking Pilot Entry (with code P44 (Parking Package) or code 235 (Parking Pilot with PARKTRONIC) and code 218 (Reversing camera))
- Parking Pilot High (with code 235 (Parking Pilot with PARKTRONIC) and code 501 (360° camera))
- Parking Pilot High Bluetooth (with code 235 (Parking Pilot with PARKTRONIC), code 501 (360° camera) and code 503 (Pre-installation for Remote Parking Pilot))
| Wiring diagram of parking system control unit | PE54.65-P-2105-97DBA |
