Component Description For Instrument Cluster - GF54.30-P-6000FG
Model 213 up to model year 2021

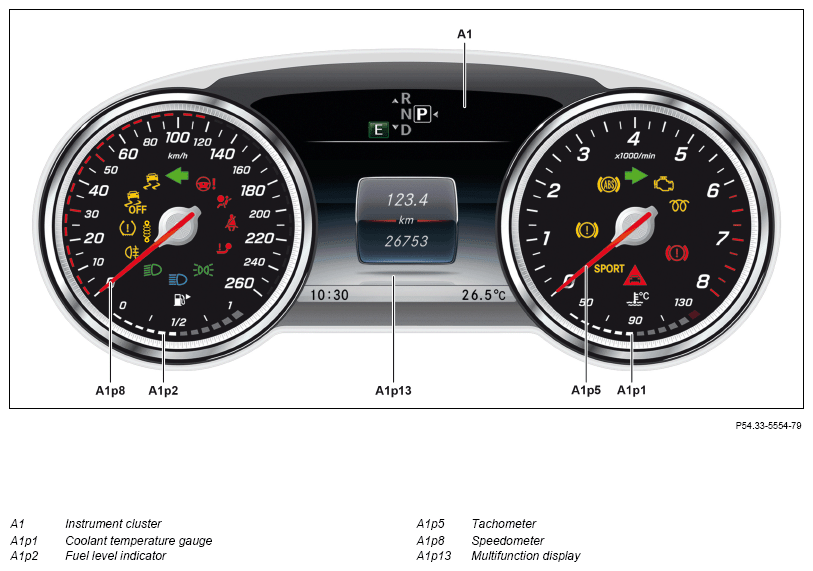

Shown on model 213 as of 01.06.2017, except code 464 (Digital instrument cluster full display) and except code ME05 (HYBRID DRIVE, 80KW VARIANT (INCLUDING PLUG-IN)) and except code ME06 (Hybrid drive, 60 kW variant (including plug-in))
The symbols of the indicator and warning messages are described in a separate document.
Model 213
up to model year 2021
with code 464 (Instrument cluster 12.3" diagonal)
The symbols available on the analog display as indicator and warning lamps are shown accordingly on the digital full display.

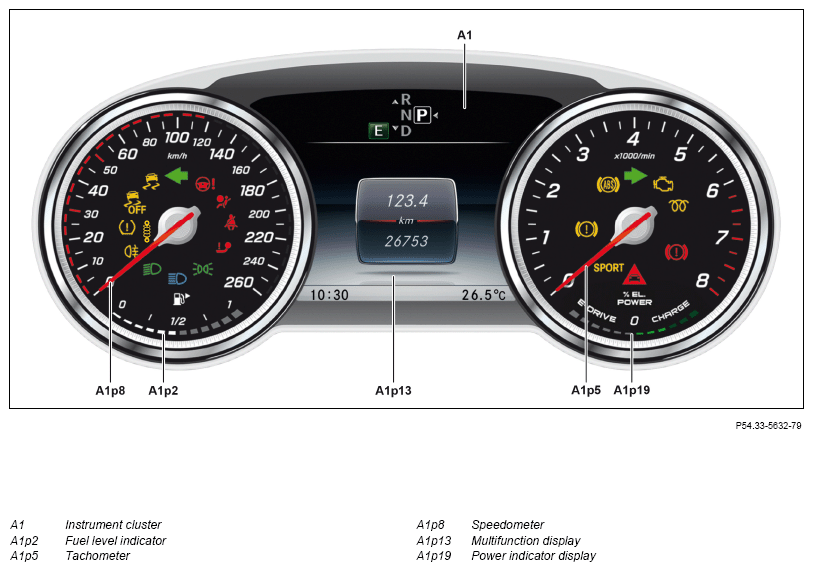

Shown on model 213 as of 01.12.2017, with code ME05 (HYBRID DRIVE, 80KW VARIANT (INCLUDING PLUG-IN)) or code ME06 (Hybrid drive, 60 kW variant (including plug-in), except code 464 (Digital instrument cluster full display))

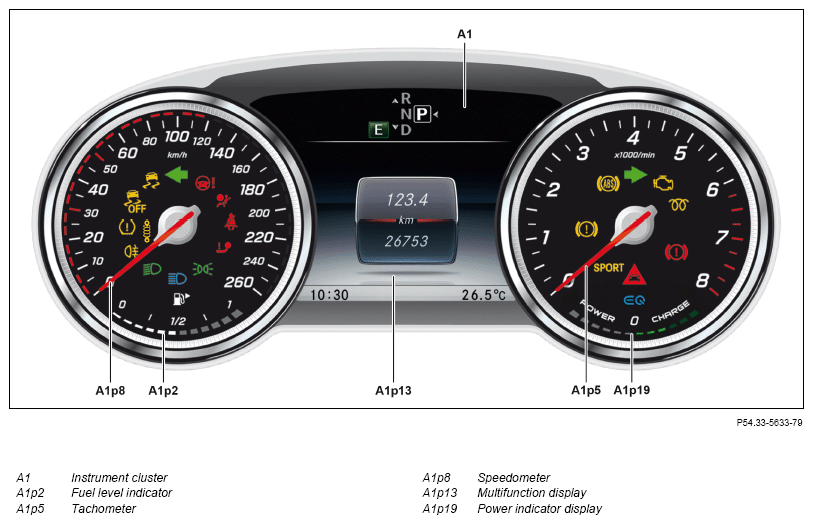

Shown on model 213 up to 01.12.2017, with code ME05 (HYBRID DRIVE, 80KW VARIANT (INCLUDING PLUG-IN)) or code ME06 (Hybrid drive, 60 kW variant (including plug-in), except code 464 (Digital instrument cluster full display))

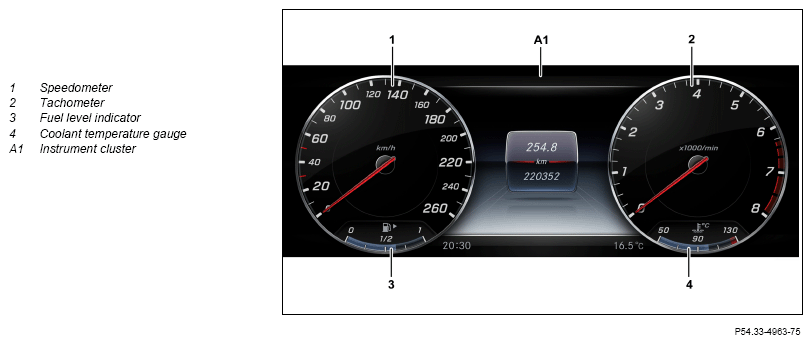

With code 464 (Digital instrument cluster full display), CLASSIC view

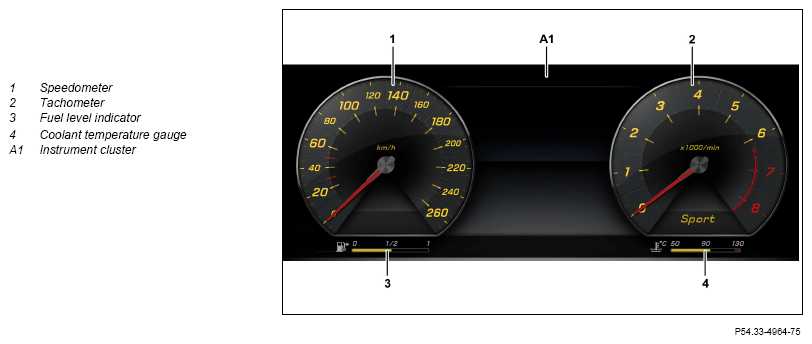

With code 464 (Digital instrument cluster full display), SPORT view

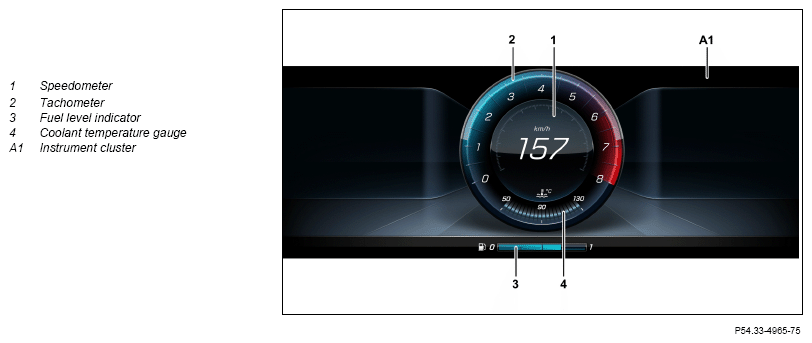

With code 464 (Digital instrument cluster full display), PROGRESSIVE view
Location
The instrument cluster is located in the dashboard on the driver-side.
Tasks
The instrument cluster has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Output of warning tones and indicator tones
- Output of signals
Reading in of sensors and signals
The signals and requests are read in by the instrument cluster via the user interface CAN (CAN HMI).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Output of warning tones and indicator tones
The instrument cluster actuates the instrument cluster speaker (H4/61) in the driver footwell to output warning and indicator tones which are requested by the systems installed in the vehicle.
Output of signals
The instrument cluster sends information and data over the following connections:
- User interface CAN
- High-speed video link (HSVL)
User interface CAN
The instrument cluster transmits information and data via user interface CAN to various control units.
HSVL
The instrument cluster is connected to the head unit (A26/17) via a HSVL. The instrument cluster sends signals for the displays and graphics in the Audio/COMMAND display (A40/8) over this interface.
With code 463 (Head-up display), the instrument cluster is connected to the head-up display (A40/12) via an HSVL line. Via this interface, the instrument cluster sends signals for the displays and graphics to the head-up display.
Variants
- Entry CLASSIC (2-tube, analog) (except code 464 (Digital instrument cluster full display))
- High Traditional (2-tube, digital (virtual)) (with code 464 (Digital instrument cluster full display))
On vehicles with code 464 (Digital instrument cluster full display), the right and center display areas of the instrument cluster can be programmed freely.
The following contents can be selected:
- SPORT, CLASSIC (right side of display area)
- Tachometer
- Power meter (for hybrid vehicles)
- Navigation instructions
- ECO display
- Consumption data
- Apps
- PROGRESSIVE (right side of display area)
- Date
- Navigation instructions
- ECO display
- Consumption data
- Apps
- PROGRESSIVE (center of display area)
- Assist graphic
- Power meter (for hybrid vehicles)
