Remove/Install Flywheel/Drive Plate - AR03.30-P-8001W

ENGINES 276 in MODEL 172

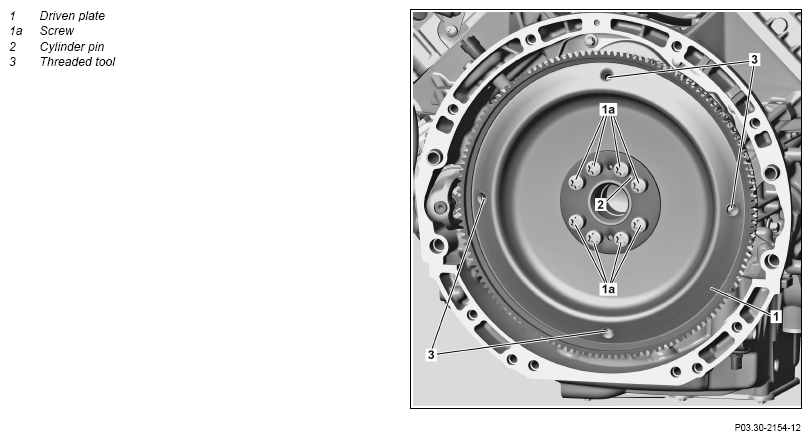

Fig 1: Flywheel/Drive Plate Components Location - Engines 276 In Model 172

G13841731

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove transmission with torque converter		AR27.10-P-0500W
2	Install retaining lock for crankshaft/starter ring gear		AR03.30-P-5000W
3	Remove bolts (1a) from drive plate (1)	Do not use an impact wrench/driver or compressed air tool in order to unscrew and screw in the bolts (1a), otherwise the threads in the crankshaft flange will be damaged. : Replace bolts (1a).	AR03.30-P-8001-02MM
			*BA03.30-P-1002-01M
4	Remove drive plate (1) from crankshaft flange	: The cylinder pin (2) determines the installation location of drive plate (1).
	Checking
5	Check threaded union (3) in drive plate (1)	In case of damaged or loose threaded unions (3), drive plate (1) must be replaced.
6	Install in the reverse order
7	Carry out first initialization and then sensor rotor adaptation using STAR DIAGNOSIS	Only when replacing Menu guidance: Engine control module Adaptations Learning processes	AD00.00-P-2000-04A

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 276
BA03.30-P-1002-01M	Bolt, starter ring gear/drive plate to crankshaft	Stage 1	Nm	20
		Stage 2	Nm	45
		Stage 3	∠°	90
