(Remove/Install Transmission With Torque Converter - AR27.10-P-0500W)

Transmission 722.9 in model 172 with engine 152

Transmission 722.9 in model 172 with engine 271

Transmission 722.9 in model 172 with engine 274.9

Transmission 722.9 in model 172 with engine 276

Transmission 722.9 in model 172 with engine 651

Courtesy of MERCEDES-BENZ USA

Shown on engine 276

Shown on ENGINE 271

Courtesy of MERCEDES-BENZ USA

Shown on left side of transmission with ENGINE 152

Courtesy of MERCEDES-BENZ USA

Shown on right side of transmission with ENGINE 152

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Move selector lever to position N
2	Release parking brake
3	Open engine hood		AR88.40-P-1000V
4	Disconnect ground line of battery		AR54.10-P-0003W
5	Secure vehicle on vehicle lift		AR00.60-P-0100T
6.1	Remove bottom engine compartment paneling	Transmission 722.9 in model 172 with engine 152 Transmission 722.9 in model 172 with engine 271 Transmission 722.9 in model 172 with engine 274.9 Transmission 722.9 in model 172 with engine 276
			AR61.20-P-1105W
6.2	Remove bottom section of soundproofing	Transmission 722.9 in model 172 with engine 651
			AR94.30-P-5300W
7	Remove bracket (2)	Transmission 722.9 in model 172 with engine 276 2 brackets (2) are installed.
		Transmission 722.9 in model 172 with engine 271 Transmission 722.9 in model 172 with engine 276 Bolt, exhaust system bracket to transmission	*BA49.10-P-1014-01AI
		Transmission 722.9 in model 172 with engine 271 Transmission 722.9 in model 172 with engine 276 Bolt, exhaust system bracket to exhaust flange	*BA49.10-P-1015-01AI
8	Mount assembly tool onto decoupling element	Transmission 722.9 in model 172 with engine 271 Transmission 722.9 in model 172 with engine 651 Do not twist the exhaust pipe on the decoupling element of the exhaust system. The exhaust system may leak at the decoupling element as a consequence.
		Assembly tool	Fig 5
9.1	Disconnect exhaust system at flange (3)	Transmission 722.9 in model 172 with engine 271 Transmission 722.9 in model 172 with engine 274.9 Transmission 722.9 in model 172 with engine 276 Transmission 722.9 in model 172 with engine 651 Transmission 722.9 in model 172 with engine 276 Disconnect on left and right.
		Transmission 722.9 in model 172 with engine 651 Bolt, clamp to center of exhaust line/diesel particulate filter	*BA49.10-P-1010-01AI
		Transmission 722.9 in model 172 with engine 274.9 Bolt, clamp for front muffler to catalytic converter	BA49.10-P-1021-01AI
		Transmission 722.9 in model 172 with engine 271 Bolt, clamp to center muffler/exhaust pipe	*BA49.10-P-1002-01AI
		Transmission 722.9 in model 172 with engine 276 Bolt, NOx storage catalytic converter flange to CAT	*BA49.10-P-1003-01AI
9.2	Detach exhaust system from exhaust manifold	Transmission 722.9 in model 172 with engine 152	AR49.10-P-7100MMI
		Disconnect on left and right.
10	Remove bracket of exhaust system from transmission (1)	Transmission 722.9 in model 172 with engine 152
			AR49.10-P-7100MMI
11	Detach electrical connection (4) and unclip electrical lines from transmission (1)	On vehicles with auxiliary oil pump.

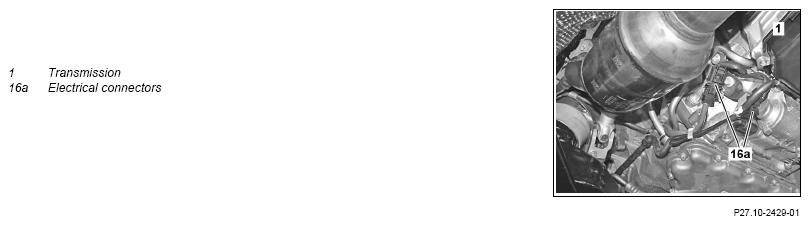

12	Unclip and detach electrical connections (16a, 16b) from transmission (1)	Transmission 722.9 in model 172 with engine 152

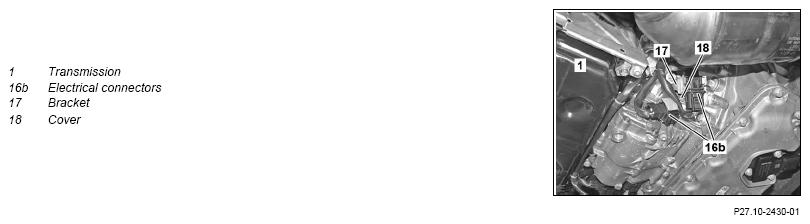

13	Detach bracket (17) of electrical connectors (16b) from transmission (1)	Transmission 722.9 in model 172 with engine 152
14	Remove heat shield (5) and detach electrical connection from transmission (1)		AR27.40-P-0700-01EW
		Bolt, heat shield to transmission housing	*BA27.40-P-1014-01A
15	Detach shift rod at range selector lever of transmission (1)		AR27.60-P-0990VA
		Replace locking plate.
16	Detach right and left oil cooling line from transmission (1) and oil pan and place to one side	Before starting work the area surrounding the oil cooler lines must be thoroughly cleaned in the area around the separation points on the transmission (1). Even the smallest dirt particles in the hydraulic components can lead to malfunctions and a total failure of the transmission (1).
		Make sure that the oil cooling lines are not kinked or bent. Leaks can otherwise occur. Seal off the connections on the transmission (1) and on the oil cooling lines using suitable stop plugs. Replace O-rings.
		Screw, oil cooler oil line to oil pan	*BA27.55-P-1003-01D
		Bolt, oil line to transmission housing	*BA27.55-P-1002-01D
		Record plug	Fig 4
17	Support transmission (1) using major assembly mount and support plate, and lash down securely
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B

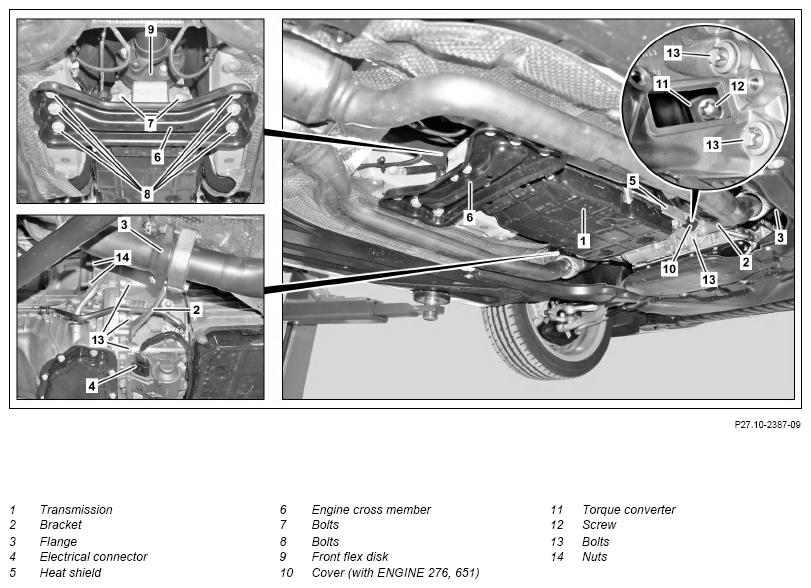

18	Unscrew bolts (7, 8) and remove rear engine cross member (6) with rear engine mount	Note installation position of rear engine mount and pay attention to correct assembly of the ground line.
		Screw/bolt, rear engine mount to bracket or transmission	*BA22.10-P-1003-03E
		Screw/bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03E
19	Mark position of front flexible coupling (9) in relation to output flange	Observe marking.
20	Remove front flexible coupling (9) of propeller shaft	To do so, release pilot bushing of front flexible coupling (9) from output flange. The front flexible coupling (9) remains on the propeller shaft. Check the front flexible coupling (9) for damage and replace if necessary. Install new self-locking nuts.
		Propeller shaft at flexible coupling or flexible coupling to transmission If pilot bushing is seized ↓ Release pilot bushing from front flexible coupling (9).	*BA41.10-P-1001-01I
		Drift for releasing pilot bushing in flexible couplings	AR41.10-P-0050-09V
			WF58.50-P-4110-01A
21.1	Remove covers (10, 18)	Transmission 722.9 in model 172 with engine 152 Transmission 722.9 in model 172 with engine 274.9 Transmission 722.9 in model 172 with engine 276 Transmission 722.9 in model 172 with engine 651

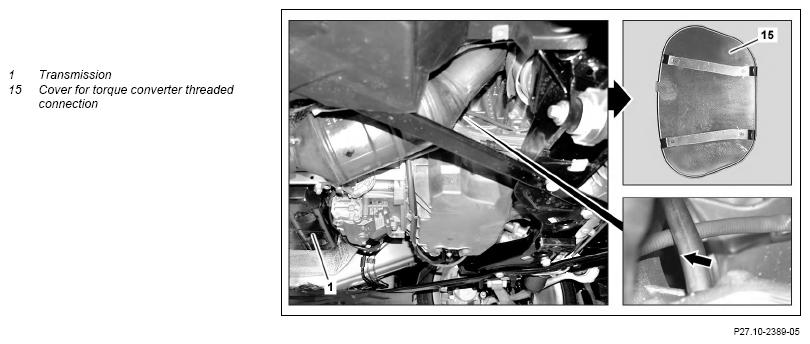

21.2	Remove cover for torque converter threaded connection (15) in crankcase	Transmission 722.9 in model 172 with engine 271
22	Remove bolts (12) and pry off torque converter (11) uniformly using long wedge from driver spider	Continue turning the engine in the direction of engine rotation using socket on the crankshaft center bolt. If the center bolt is not accessible, continue turning the torque converter using a wide screwdriver. ENGINE 271 Unscrew bolts (12) from the front through the hole of the torque converter threaded connection (arrow) in the crankcase. Replace bolts (12).
		Bolt, torque converter to driver spider	*BA27.20-P-1002-01C
		Socket wrench bit	Fig 6
		Long wedge	Fig 2
23	Detach starter from transmission (1)	Model 172 with engine 274.9 with transmission 722.9	AR15.30-P-7100MR
		Model 172 with engine 651 with transmission 722.9	AR15.30-P-7100CD
		Model 172 with engine 271 with transmission 722.9	AR15.30-P-7100CW
		Model 172 with engine 152 with transmission 722.9 Model 172 with engine 276 with transmission 722.9 Place starter to the side with lines connected and secure to prevent it falling down.	AR15.30-P-7100W
24	Unscrew nuts (14) and remove sheet metal cover	Transmission 722.9 in model 172 with engine 152 Transmission 722.9 in model 172 with engine 276
25	Unscrew bolts (13) around circumference of transmission (1)	Fasten bracket of electrical lines on transmission (1).
		Bolt, automatic transmission to engine	*BA27.40-P-1008-01A

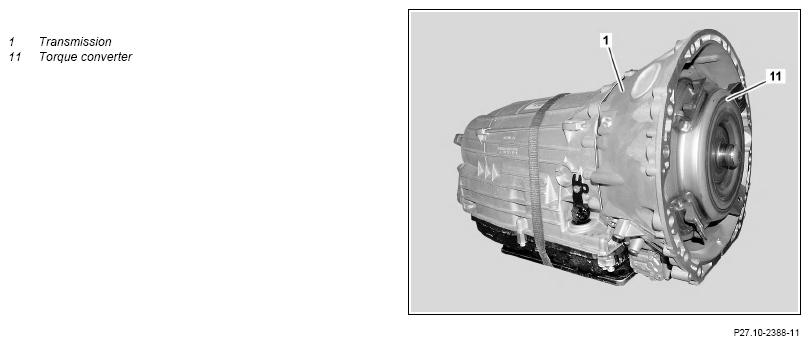

26	Remove transmission (1) downwards	Secure torque converter (11) to prevent it from falling out. Align the bores of the torque converter (11) with the threaded unions in the driver spider.
27	Remove torque converter (11) from transmission (1)	If necessary.
			AR27.20-P-0500-01W
		Installed height of torque converter	*BE27.20-P-1001-01E
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Handles	Fig 3
		Parallel rest	Fig 1
28	Remove corrosion from crankshaft		AR03.20-P-1000-01A
		Assembly cleaner	*BR00.45-Z-1028-04A
		Multi-purpose paste	*BR00.45-Z-1009-06A
29	Check threaded unions in driver spider	If threaded unions are damaged or loose ↓ Install a new driver spider
30	Install in the reverse order
31	Check transmission oil level and correct if necessary		AR27.00-P-0270W
32	Read out fault memory using the diagnostic system and clear if necessary
			AD00.00-P-2000-04A
33	Perform transmission adaptation using diagnostic system	After replacement or repair of transmission (1).
34	Reset data on service life of torque converter lockup clutch using diagnostic system	After replacement of torque converter (11).
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
35	Perform engine test run and check transmission (1) for proper operation and leak tightness

Number	Designation				Transmission 722.9
BE27.20-P-1001-01E	Installed height of torque converter	Distance, bolt flange to transmission housing flange	Helical screwed connection	mm	9, 5
			See picture		AR27.20-P-0500-01W
			Axial screwed connection	mm	19, 5

Number	Designation			Model 172
BA22.10-P-1003-03E	Screw/bolt, rear engine mount to bracket or transmission	M8	Nm	50
		M10	Nm	-

Number	Designation				Model 172
BA22.10-P-1005-03E	Screw/bolt, rear engine support to frame floor assembly	M10x22	Silver	Nm	65
			Black	Nm	-
		M10x24	Black	Nm	-
		M10x38		Nm	-
		M10x20	Stage 1	Nm	-
			Stage 2	Nm	-

Number	Designation				Transmission 722.9
BA27.20-P-1002-01C	Bolt, torque converter to driver spider	Straight threaded connection	M8	Nm	42
		Angled threaded connection	Stage 1	Nm	4
			Stage 2	Nm	30
			Stage 3	∠°	90

Number	Designation			Transmission 722.9
BA27.40-P-1008-01A	Bolt, automatic transmission to engine	M10X40	Nm	38
		M10X45	Nm	38
		M10X90	Nm	38
		M12	Nm	-

Number	Designation		Transmission 722.9
BA27.40-P-1014-01A	Bolt, heat shield to transmission housing	Nm	9

Number	Designation				Transmission 722.9
BA27.55-P-1002-01D	Bolt, oil line to transmission housing	Banjo bolt	Stage 1	Nm	5
			Stage 2	∠°	90
		Hexalobular bolt		Nm	12

Number	Designation		Transmission 722.9
BA27.55-P-1003-01D	Screw, oil cooler oil line to oil pan	Nm	12

Number	Designation				Model 172
BA41.10-P-1001-01I	Propeller shaft at flexible coupling or flexible coupling to transmission	Self-locking nut		Nm	68
		Direct threaded connection	Stage 1	Nm	60
			Stage 2	∠°	90

Number	Designation		Engine 271 in model 172
BA49.10-P-1002-01AI	Bolt, clamp to center muffler/exhaust pipe	Nm	35

Number	Designation		Engine 276 in model 172
BA49.10-P-1003-01AI	Bolt, NOx storage catalytic converter flange to CAT	Nm	20

Number	Designation		Engine 651 in model 172
BA49.10-P-1010-01AI	Bolt, clamp to center of exhaust line/diesel particulate filter	Nm	35

Number	Designation		Engine 271 in model 172	Engine 276 in model 172
BA49.10-P-1014-01AI	Bolt, exhaust system bracket to transmission	Nm	25	25

Number	Designation		Engine 271 in model 172	Engine 276 in model 172
BA49.10-P-1015-01AI	Bolt, exhaust system bracket to exhaust flange	Nm	35	35

Number	Designation	Order number
BR00.45-Z-1009-06A	Multi-purpose paste	A 000 989 80 51
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
