Retrofit Universal Media Interface - AZ82.85-P-0004W

Model 172.### (except 172.475) 1#

with CODE (460) Canada version

with CODE (494) USA version

with CODE (523) MB Audio 20 radio

except CODE (359) TELE AID emergency call system

Courtesy of MERCEDES-BENZ USA

	Remove
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Move front passenger seat toward rear
2	Fold floor covering at right front backwards
3	Detach right front footrest and fold backwards	Do not disconnect electrical lines from control units.
4	Remove glove box
5	Remove radio (A2)		AR82.60-P-7502W
6	Remove Audio/COMAND® display (A40/8)		AR82.60-P-7722W
	Install
7	Retrofit Universal Media Interface adapter wiring harness		AZ82.85-P-0004-02W
		Long wedge	Fig 1
8	Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness		AZ82.85-P-0004-03W
9	Retrofit GPS antenna (A2/23)		AZ82.61-P-0003-02W
10	Install radio (A2)		AR82.60-P-7502W
11	Install Audio/COMAND® display (A40/8)		AR82.60-P-7722W
12	Retrofit connecting cable (2)		AZ82.85-P-0004-05W
13	Install glove box	The connecting cable (2) must be routed into the front passenger footwell when installing the glove box. It is connected at a later stage to the Universal Media Interface control unit (1).
14	Retrofit Universal Media Interface control unit (1)		AZ82.85-P-0004-04W
15	Install remaining parts
16	Connect Star Diagnosis
17	Perform variant coding with XENTRY using the software calibration number (SCN)	Log in navigation by entering 3-digit code "56o" into instrument cluster. Make sure here that the third digit must be the letter "o" for Oscar. For vehicles without code (518) Media Interface, perform the variant coding manually. The "UCI" parameter in the Universal Media Interface must be set to "not installed".
18	Disconnect Star Diagnosis
19	Run function check on Universal Media Interface	The AUX connection electrical connector that is installed as standard no longer works. The information on the Universal Media Interface is displayed through the instrument cluster.
20	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Universal Media Interface (Navigation 20) retrofitted as per AZ82.85-P-0004W" note under field organization text to design group 82.

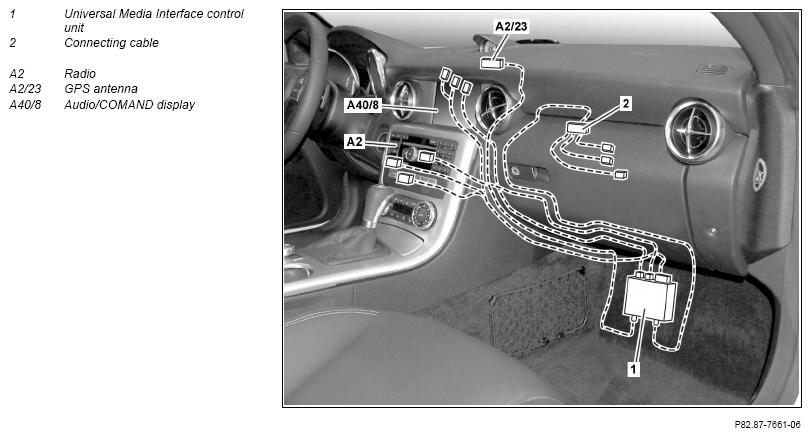

Fig 1: Identifying Long Wedge (115 589 03 59 00)
