Retrofit GPS Antenna - AZ82.61-P-0003-02W

MODEL 172.### 1#

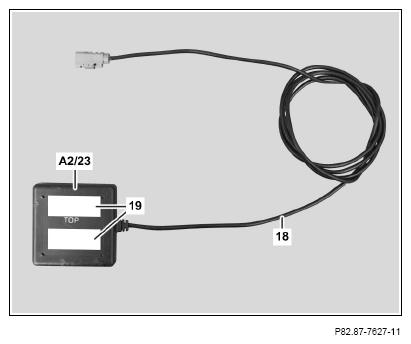

1. Wrap felt tape around wiring harness of global positioning system (GPS) antenna (18) of GPS antenna (A2/23).
2. Stick Velcro strip (19) onto upper side of GPS antenna (A2/23).

   The upper side of the GPS antenna (A2/23) is marked by the inscription "TOP".

   Courtesy of MERCEDES-BENZ USA

3. Remove carrier film from Velcro strip.

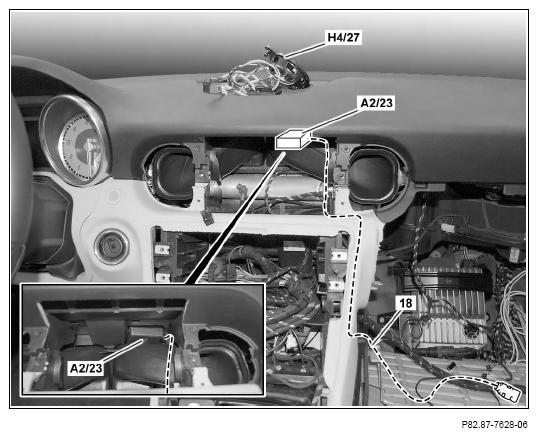

4. Stick GPS antenna (A2/23) at right next to instrument panel center speaker (H4/27) from below into instrument panel.
5. Route GPS antenna wiring harness (18) from Audio/COMAND® display slot through the radio slot to the front passenger footwell.

Courtesy of MERCEDES-BENZ USA
