Retrofit Media Interface - AN82.60-P-0016W

MODEL 172.4## (except 172.475) 1#

with CODE (512) COMAND® APS with DVD changer

with CODE (527) COMAND® APS with single DVD drive (with navigation)

with CODE (510) Audio 20 with CD changer

except CODE (494) USA version

except CODE (498) Japan version

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove center console (1)		AR68.20-P-2000W

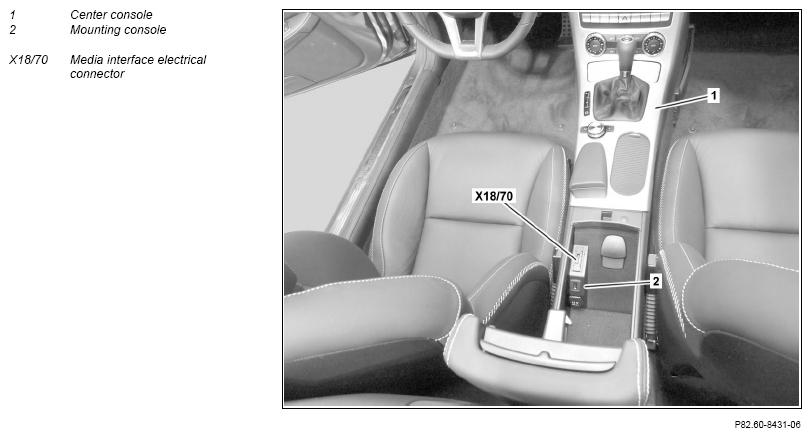

2	Remove mounting console (2) from center console (1)		AR68.20-P-2150W
3	Remove radio or COMAND® controller unit		AR82.60-P-7502W

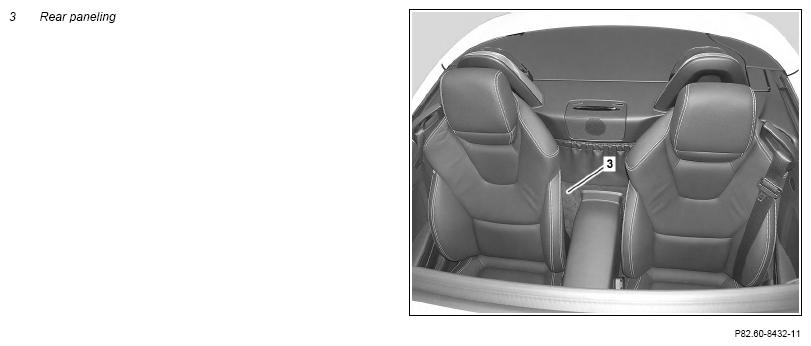

4	Remove rear paneling (3) behind seats

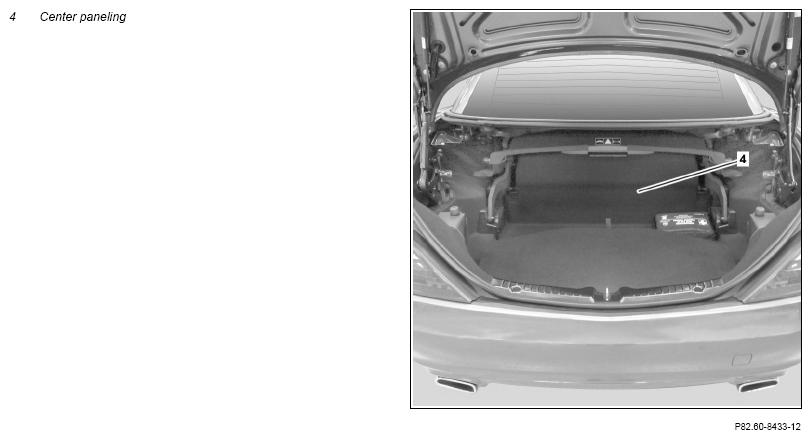

5	Remove center lining (4) from trunk		AR68.30-P-4600W
	Install
6	Install optical fiber for Media Oriented System Transport (MOST)	In vehicles without  one of the following codes: Code (537) Digital radio Code (810) Sound system	AN82.61-P-0001-06W
		In vehicles with  one of the following codes: Code (537) Digital radio Code (810) Sound system	AN82.61-P-0001-06WA
	Notes on avoiding damage to optical fibers during repair work	With Media Oriented System Transport (MOST)	AH82.60-P-0001-05AK
	Notes on removal/installation of the optical fiber for the Media Oriented System Transport (MOST)		AH82.60-P-0001-06A
7	Prepare media interface power supply wiring harness		AN82.60-P-0016-04W
		Wiring harness repair kit, basic	Fig 1
		New passenger vehicle wiring harness repair kit	Fig 2
8	Install power supply wiring harness		AN82.60-P-0016-03W
		Wiring harness repair kit, basic	Fig 1
		New passenger vehicle wiring harness repair kit	Fig 2
9	Install media interface wiring harness		AN82.60-P-0016-02W
10	Retrofit media interface control unit		AN82.60-P-0016-01W
11	Install center console (1)	In doing so, connect connector of video signal branch-off line.	AR68.20-P-2000W
12	Install remaining parts
13	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add:  Code (518) Media interface
14	Document retrofitted equipment through VeDoc	Attach "Media interface retrofitted, as per AN82.60-P-0016W" note under the field organization texts to DG 82
15	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
16	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding with XENTRY using the software calibration number (SCN) must be carried out for the following control unit: Media interface control unit (N125/1)
17	Activate media interface
18	Disconnect Star Diagnosis
19	Perform function test with an external audio source

Fig 1: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA
