Disassemble/Assemble Center Console - AR68.20-P-2150W
MODEL 172.4

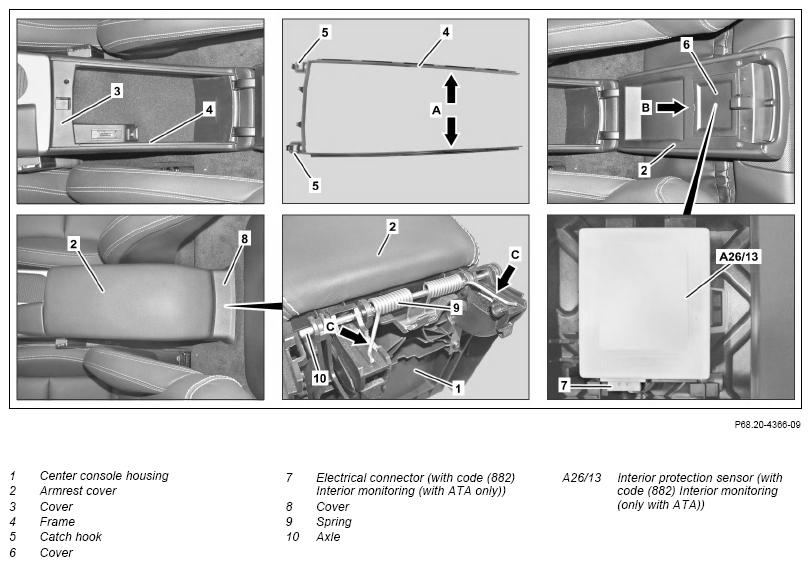

Shown with code (882)
Shown with code (882) Interior monitoring (only with ATA), code (518) Media Interface and code (309) Cup holder
| Disassemble/assemble | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Open armrest cover (2) | ||
| 2 | Unclip cover (3) | ||
| 3 | First unclip frame (4 upward at side struts (arrows A) from center console housing (1), then unclip from catch hook (5) and remove | ||
| 4 | Unclip cover (6) on cutout (arrow B) from armrest cover (2) with suitable screwdriver | ||
| 5 | Unclip interior protection sensor (A26/13) from armrest cover (2), disconnect electrical connector (7) and remove interior protection sensor (A26/13) | On vehicles with code (882) Interior monitoring (with ATA only) | |
| 6 | Unclip cover (8) upward and remove | ||
| 7 | Unhook spring (9) at both ends (arrows C), remove shaft (10) and remove armrest cover (2) | On vehicles without code (882) Interior monitoring (only with ATA) | |

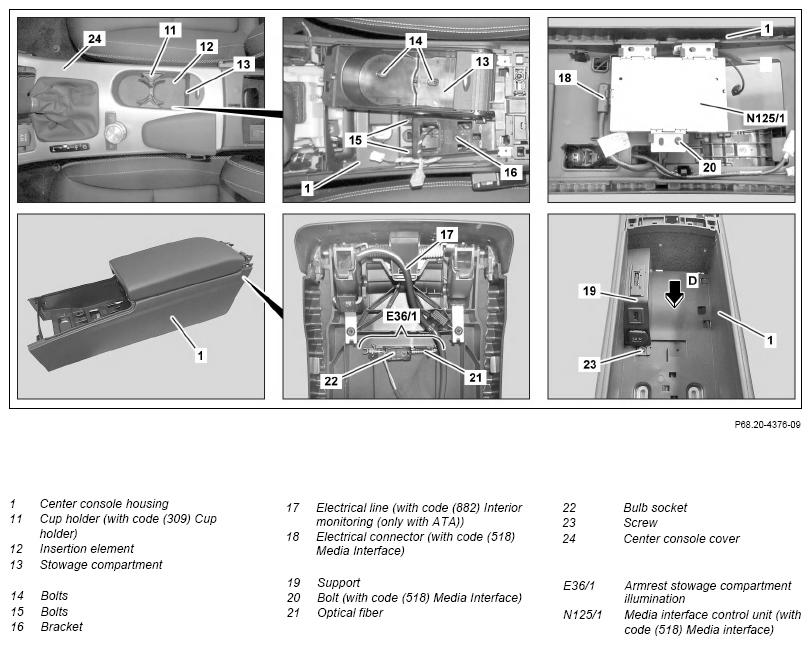

| 8 | Remove center console cover (24) | AR68.20-P-2000W | |
| 9 | Remove cup holder (11) and insert (12) from stowage compartment (13) | ||
| 10 | Unscrew bolts (14) and move stowage compartment (13) out of center console housing (1) toward front and remove | ||
| 11 | Unscrew bolts (15) and remove bracket (16) from center console housing (1) | ||
| 12 | Remove center console housing (1) | AR68.20-P-2000W | |
| 13 | Remove electrical line (17) from center console housing (1) | On vehicles with code (882) Interior monitoring (with ATA only) | |
| 14 | Unhook spring (9) at both ends (arrows C), remove shaft (10) and remove armrest cover (2) | On vehicles with code (882) Interior monitoring (with ATA only) | |
| 15 | Disconnect electrical connector (18) from Media Interface control unit (N125/1) | On vehicles with code (518) Media Interface | |
| 16 | Unscrew bolt (23) and unclip mount (19) from center console housing (1) in direction of arrow (arrow D) | Fig 3 | |
| 17 | Remove mount (19) with associated electrical lines | ||
| 18 | Unscrew bolt (20) and remove Media Interface control unit (N125/1) from center console housing (1) | On vehicles with code (518) Media Interface | |
| 19 | Unclip optical fiber (21) from armrest stowage compartment illumination (E36/1) from center console housing (1) | ||
| 20 | Unclip lamp socket (22) on armrest stowage compartment illumination (E36/1) from optical fiber (21) | When replacing optical fiber (21) on armrest stowage compartment illumination (E36/1). | |
| 21 | Remove all electrical lines from center console housing (1) | When replacing center console housing (1). | |
| 22 | Assemble in the reverse order |
