Remove/Install Front Bumper - AR88.20-P-2000W
Model 172.4
Shown on vehicle up to model year 2016 with code 621 (Intelligent Light System (left-hand traffic))
Shown on vehicle up to model year 2016 with code 621 (Intelligent Light System (left-hand traffic))
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line at the on-board electrical system battery | Model 172.4 with code U60 (Active Bonnet (Pedestrian protection)) |
AR54.10-P-0003W |
| 2.1 | Remove bottom engine compartment paneling at front | Model 172.4 with engine 152, 271, 274, 276 | AR61.20-P-1105W |
| 2.2 | Remove bottom section of soundproofing at front | Model 172.4 with engine 651 | AR94.30-P-5300W |
| 3 | Disconnect Electrical connection (9) | If installed. |
|

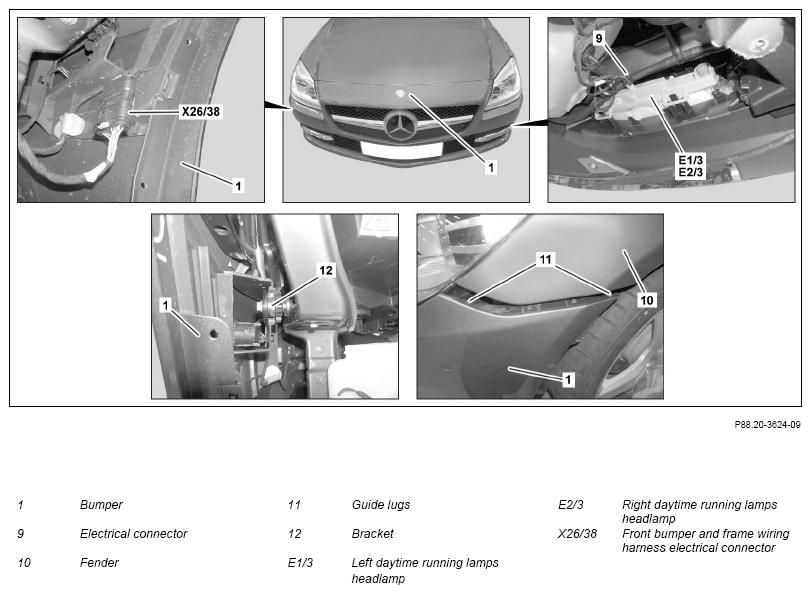

| 4 | Remove expansion rivets (2, 4) from fender liner (3, 5) and expansion rivet (6) on left and right on bumper (1) | Fig 2 | |
| 5 | Disconnect electrical connector on frame wiring harness and front bumper (X2638) | ||

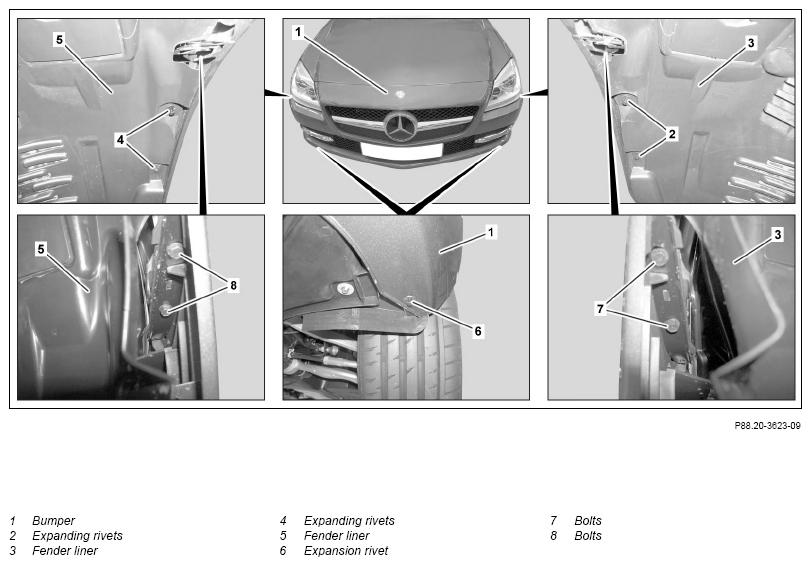

| 6 | Detach fender liner (3, 5) only until bolts (7, 8) are accessible | Fig 3 | |
| 7 | Remove bolts (7, 8) | ||
| 8 | Loosen bumper (1) from fenders (10) | ||
| 9 | Unscrew bolts (13) from bumper (1) | ||

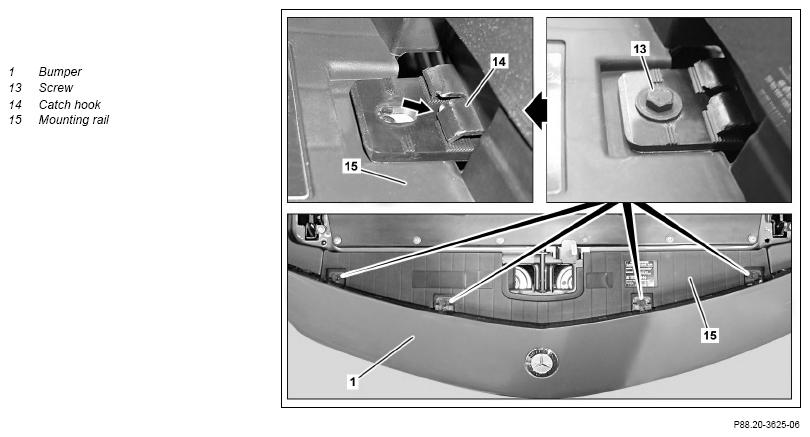

| 10 | Carefully loosen catch hooks (14) in sequence from mounting rail (15) starting at one side with screwdriver | Carefully pull bumper (1) toward front when detaching catch hooks (14). |
|
| 11 | Remove bumper (1) toward front with aid of helper | ||
| Check | |||
| 12 | Check front bumper pedestrian protection sensor for any kind of damage (cracks, holes, kins, etc.) | Model 172.4 as of 10/31/11 with code U60 (Active Bonnet (Pedestrian protection)) |
|
| Notes on pedestrian protection sensor | AH91.60-P-0001-01A | ||
| If damage is visible. → Replace pedestrian protection sensor. |
AR91.60-P-0950RK | ||
| 13 | Disassemble front bumper (1) | When replacing bumper (1). Model 172 as of model year 2017 |
AR88.20-P-2050WM |
| Model 172.4 up to model year 2016 |
AR88.20-P-2050W | ||
| 14 | Install in the reverse order | ||
| Check | |||
| 15 | Check gap dimensions on bumper, adjust if necessary | AR60.00-P-0700-01V | |
| Gap dimension | *BE60.00-P-1001-01Y | ||
| Fig 1 |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 172 | ||||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01Y | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4, 0 (+1/-0, 5) | |
| Engine hood to headlamp | Dimension "R" | mm | 4, 0 (±1) | |||
| Radiator grille to headlamp | Dimension "N" | mm | - | |||
| Engine hood to bumper | Dimension "B" | mm | 4, 0 (±1) | |||
| Fender to headlamp | Dimension "C" | mm | 4, 0 (+1/-1, 5) | |||
| Bumper to headlamp (circumferential) | Dimension "D" | mm | 3, 5 (±1, 5) | |||
| Mounting rail, bumper to engine hood | Dimension "I" | Outside | mm | 39, 5 (-1, 0) | ||
| Center | mm | 58, 5 (-1, 0) | ||||
| Picture | AR60.00-P-0700-01V | |||||
