Remove/Install Crash Sensor - AR91.60-P-0950RK

Model 172.4 as of 10/31/11

with code U60 (Pedestrian protection - Active hood)

Model 231

with code U60 (Pedestrian protection - Active hood)

MODIFICATION NOTES

19.10.2015

Disconnect electrical connectors at left front bumper pedestrian protection sensor (B151/1) and right front bumper pedestrian protection sensor (B151/3), added.

Step 4

Shown on model 231

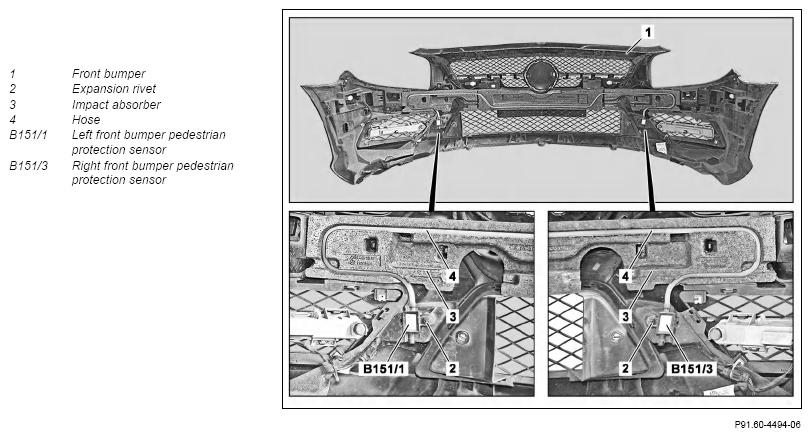

Fig 1: Front Bumper Pedestrian Protection Sensor - Model 172.4 With Code U60 Shown On Model 231

Courtesy of MERCEDES-BENZ USA

	General information on the impact absorber		AH88.20-P-1000-01A
	Notes on pedestrian protection sensor		AH91.60-P-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front bumper (1).	Model 172.4 as of 10/31/11 with code U60 (Pedestrian protection - Active hood)	AR88.20-P-2000W
		Model 231 with code U60 (Pedestrian protection - Active hood)	AR88.20-P-2000RK
2	Set down front bumper (1) on a suitable base
3	Remove hose (4) from groove in impact absorber (3)	Ensure that hose (4) is seated correctly in impact absorber (3). Hose (4) must be routed without tension or kinks. Malfunctions can occur otherwise. The hose (4) must be seated as deeply as possible within the groove of the impact absorber (3) and have the same protrusion length at left and right.
4	Disconnect electrical connectors at left front bumper pedestrian protection sensor (B151/1) and right front bumper pedestrian protection sensor (B151/3)
5	Remove left and right expansion rivet (2)
6	Remove left front bumper pedestrian protection sensor (B151/1) and right front bumper pedestrian protection sensor (B151/3) together with hose (4) from front bumper (1)	Left front bumper pedestrian protection sensor (B151/1) and right front bumper pedestrian protection sensor (B151/3) must not be disconnected from hose (4). Malfunctions can occur otherwise.
7	Install in the reverse order
