(Disassemble/Assemble Front Bumper - AR88.20-P-2050W)
Model 172.4
up to model year 2016

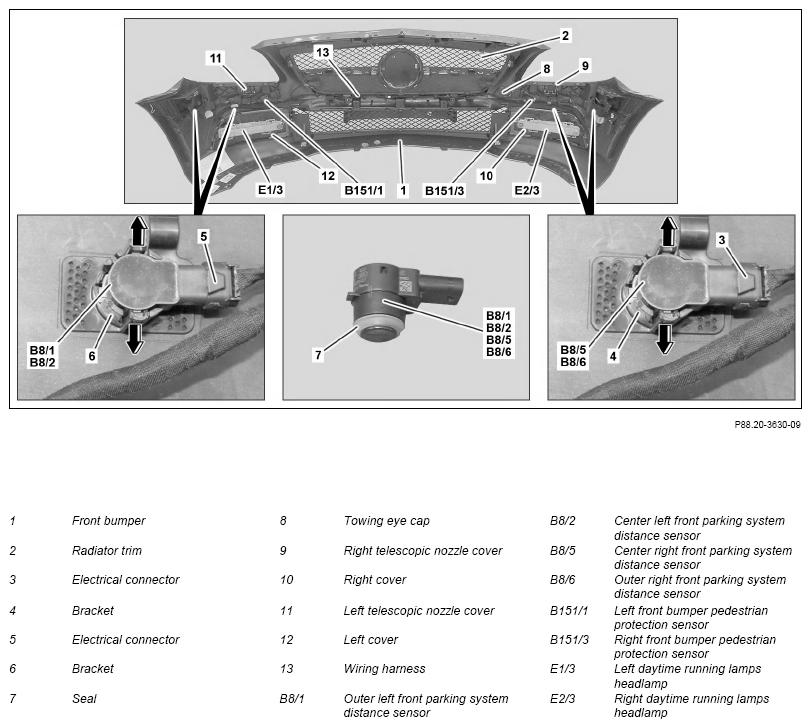

Shown with code 240 (LED daytime running light) and code 230 (Exclusive parking assist)
| Disassemble/assemble | |||
| 1 | Remove front bumper (1) | AR88.20-P-2000W | |
| 2 | Remove radiator trim (2) | AR88.40-P-4001W | |
| 3 | Disconnect electrical connectors (3, 5) from front parking system distance sensors (B8/1, B8/2, B8/5, B8/6) | Model 172.4 up to model year 2016 with code 230 (Advanced Parking Guidance) |
|
| 4 | Release bracket (4, 6) from catch hooks (arrows) and remove front parking system distance sensors (B8/1, B8/2, B8/5, B8/6) from brackets (4, 6) | Model 172.4 up to model year 2016 with code 230 (Advanced Parking Guidance) |
|
| 5 | Remove towing eye cap (8) | ||
| 6 | Remove right telescopic nozzle cover (9) and left telescopic nozzle cover (11) | Model 172.4 up to model year 2016 with code 600 (Headlamp cleaning system) |
|
| 7.1 | Remove left Daytime Running Lights headlamp (E1/3) and right Daytime Running Lights headlamp (E2/3) | Model 172.4 up to model year 2016 with code 236 (Daytime Running Lights in LED design) Model 172.4 up to model year 2016 with code 240 (LED-Daytime Running Lights) |
AR82.10-P-2300W |
| 7.2 | Remove left front fog lamp and right front fog lamp | Model 172.4 up to model year 2016 except code 236 (Daytime Running Lights in LED design) except code 240 (LED-Daytime Running Lights) |
AR82.10-P-5103W |
| 8 | Unclip left cover (12) and right cover (10) | ||
| 9 | Remove left front bumper pedestrian protection sensor (B151/1) and right front bumper pedestrian protection sensor (B151/3) | Model 172.4 up to 10/31/11 up to model year 2016 with code U60 (Active Bonnet (Pedestrian protection)) |
AR91.60-P-0950WA |
| 10 | Expose wiring harness (13) and remove | ||
| 11 | Assemble in the reverse order |
