Gap Dimensions On Hoods, Doors And Lids - Ar60.00-P-0700-01V
Model 171, 172
MODIFICATION NOTES
| 5.5.11 | Value modified: Gap dimension, Dimension "T" | *BE60.00-P-1005-01Y |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 171 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01L | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.0 (+0.8) |
| Engine hood to headlamp | Dimension "R" | mm | 3, 0 (±1.2) | ||
| Radiator grille to headlamp | Dimension "N" | mm | 3, 0 (±1.2) | ||
| Engine hood to bumper | Dimension "B" | mm | - | ||
| Fender/headlamps | Dimension "C" | mm | - | ||
| Bumper to headlamp (circumferential) | Dimension "D" | mm | - | ||
| Mounting rail, bumper to engine hood | Dimension "G" | mm | - | ||
| Mounting rail, bumper to engine hood | Dimension "I" | mm | - | ||
| See picture | AR60.00-P-0700-01V | ||||
| BE60.00-P-1002-01L | Gap dimension | Front door to fender | Dimension "H" | mm | 3.0 (+0.8) |
| Fender to A-pillar | Dimension "Q" | mm | 2.0 (+1.5/-0.5) | ||
| Front door to rear fender | Dimension "P" | mm | 3.0 (+0.8) | ||
| See picture | AR60.00-P-0700-01V | ||||
| BE60.00-P-1003-01L | Gap dimension | Trunk lid to rear fender | Dimension "F" | mm | 3.5 (+1.5) |
| Trunk lid to rear lamp unit | Dimension "M" | mm | 4.0 (+1.6/-0.5) | ||
| Trunk lid to bumper | Dimension "V" | mm | 5.0 (+1.5/-1.0) | ||
| Rear fender to rear lamp unit | Dimension "U" | mm | 2.5 (±0.5) | ||
| Trunk lid tip to rear fender | Dimension "E" | mm | 5, 0 (+1, 5) | ||
| See picture | AR60.00-P-0700-01V | ||||
| BE60.00-P-1004-01L | Gap dimension | Fuel filler flap | Dimension "K" | mm | 3, 0 (±0.5) |
| See picture | AR60.00-P-0700-01V | ||||
| BE60.00-P-1005-01L | Gap dimension | Roof to windshield frame | Dimension "S" | mm | 5, 0 (+1.0) |
| Roof to rear window frame | Dimension "T" | mm | 5, 0 (±0.5) | ||
| See picture | AR60.00-P-0700-01V | ||||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 172 | ||||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01Y | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4, 0 (+1/-0.5) | |
| Engine hood to headlamps | Dimension "R" | mm | 4.0 (±1) | |||
| Radiator grille to headlamp | Dimension "N" | mm | - | |||
| Engine hood to bumper | Dimension "B" | mm | 4.0 (±1) | |||
| Fender/headlamps | Dimension "C" | mm | 4, 0 (+1/-1.5) | |||
| Bumper to headlamp (circumferential) | Dimension "D" | mm | 3.5 (±1.5) | |||
| Mounting rail, bumper to engine hood | Dimension "I" | Outer | mm | 39, 5 (-1.0) | ||
| Center | mm | 58, 5 (-1.0) | ||||
| See picture | AR60.00-P-0700-01V | |||||
| BE60.00-P-1002-01Y | Gap dimension | Front door to fender | Dimension "H" | mm | 4.5 (+1/-0.5) | |
| Fender to A-pillar | Dimension "Q" | mm | 3.5 (±1.5) | |||
| Front door to rear fender | Dimension "P" | mm | 4.0 (±1) | |||
| See picture | AR60.00-P-0700-01V | |||||
| BE60.00-P-1003-01Y | Gap dimension | Trunk lid to rear fender | Dimension "F" | mm | 4.5 (±1) | |
| Trunk lid to rear lamp unit | Dimension "M" | mm | 4.5 (+1.5/-0.5) | |||
| Trunk lid to bumper | Dimension "V" | mm | 6.0 (±1.5) | |||
| Rear fender to rear lamp unit | Dimension "U" | mm | 1.5 (±1) | |||
| Trunk lid tip to rear fender | Dimension "E" | mm | 6, 5 (+1/-0.5) | |||
| See picture | AR60.00-P-0700-01V | |||||
| BE60.00-P-1004-01Y | Gap dimension | Fuel filler flap | Dimension "K" | mm | 3, 0 (+1.5/-0.5) | |
| See picture | AR60.00-P-0700-01V | |||||
| BE60.00-P-1005-01Y | Gap dimension | Roof to windshield frame | Dimension "S" | mm | 7, 0 (+1.0) | |
| Roof to rear window frame | Dimension "T" | mm | 5.0 (±1.0) | |||
| See picture | AR60.00-P-0700-01V | |||||

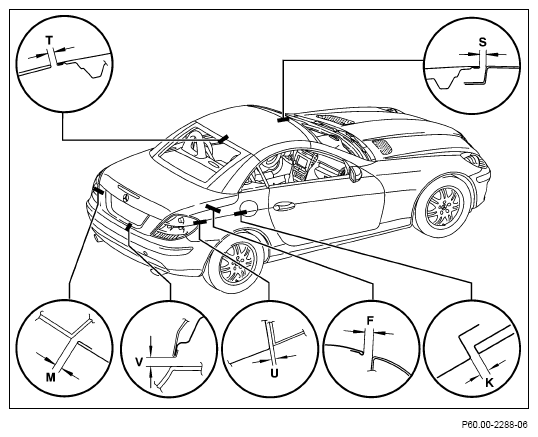

Shown on model 171
Adjust hood, doors and lids as shown in drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.

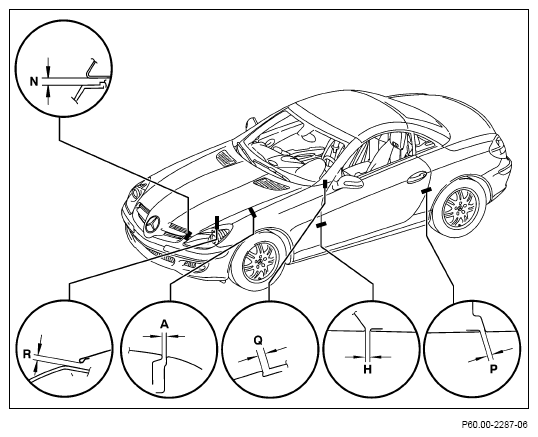

Shown on model 171

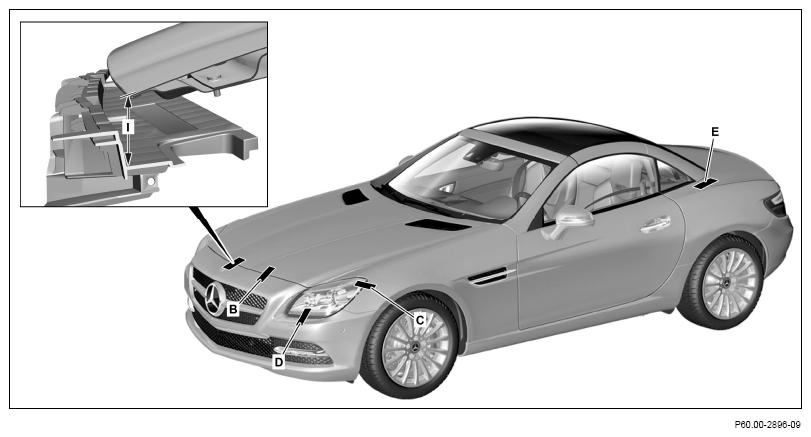

Illustrated on model 172
