Remove/Install Fog Lamp - AR82.10-P-5103W
MODEL 172.4
except CODE (240) LED daytime running lights

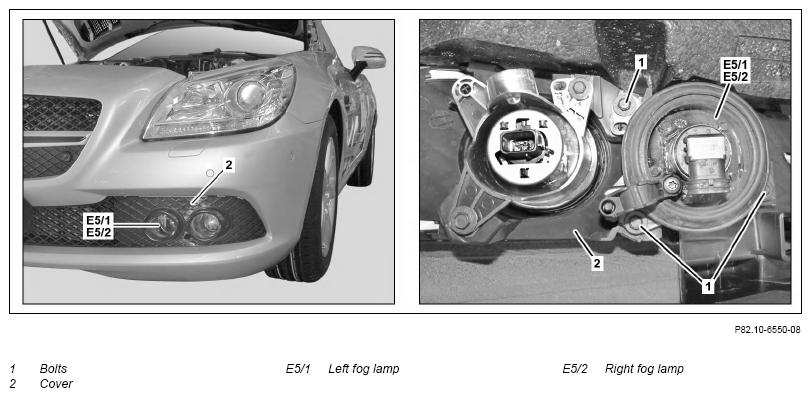

Shown on left side of vehicle
| Remove/install | |||
| 1 | Lift vehicle on lifting platform. | AR00.60-P-1000V | |
| 2.1 | Remove bottom engine compartment paneling at front | Engine 271, 276 When removing the left front fog lamp (E5/1). |
AR61.20-P-1105W |
| 2.2 | Remove bottom section of soundproofing at front | Engine 651 When removing the left front fog lamp (E5/1). |
AR94.30-P-5300W |
| 2.3 | Detach right fender liner in front area until right front fog lamp (E5/2) is accessible | When removing the right front fog lamp (E5/2). | AR88.10-P-1300W |
| 3 | Disconnect electrical connector at left front fog lamp (E5/1) or right front fog lamp (E5/2) | ||
| 4 | Remove screws/bolts (1) and remove left front fog lamp (E5/1) or right front fog lamp (E5/2) | ||
| 5 | Install in the reverse order |
