Remove/Install Dashboard - AR68.10-P-1000LF
Model 222
MODIFICATION NOTES
| 09.03.2020 | Remove head unit. | Operation step 1.2. | |
| 09.03.2020 | Remove left and right potentiometer for air vents. | Operation step 3. | |
| 17.03.2020 | Special tool inserted. | Operation step 19. | |
| 09.03.2020 | Remove front passenger airbag. | Operation step 26. |

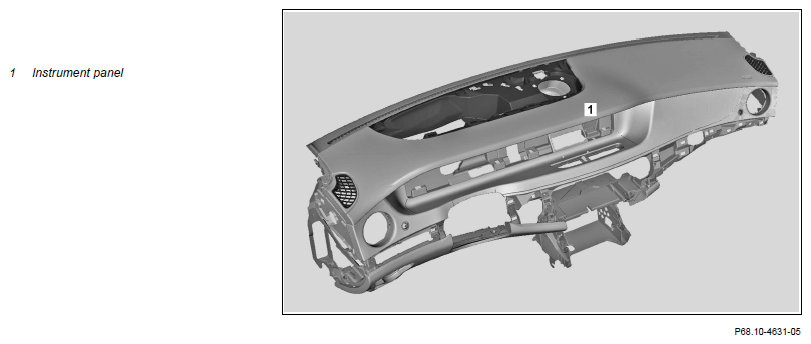

Shown in removed condition
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Remove/install | |||
| 1.1 | Remove COMAND controller unit. | Model 222 up to model year 2018 |
|
| AR82.85-P-1100LF | |||
| 1.2 | Remove head unit. | Model 222 as of model year 2018 |
|
| AR82.85-P-1101LFM | |||
| 2 | Remove trim element from instrument panel (1). | AR68.10-P-1180LF | |
| 3 | Remove left and right potentiometer for air vents. | AR83.10-P-4506LF | |
| 4 | Remove cover under the left instrument panel (1). | AR68.10-P-1500LF | |
| 5 | Remove air ducts under the left and right instrument panel (1). | ||
| 6 | Remove trims from the A-pillar. | AR68.30-P-4050LF | |
| 7 | Remove display module. | AR54.30-P-6023LF | |
| 8 | Remove steering column module. | AR54.25-P-2802LF | |
| 9 | Remove side air vents. | AR83.10-P-4740LF | |

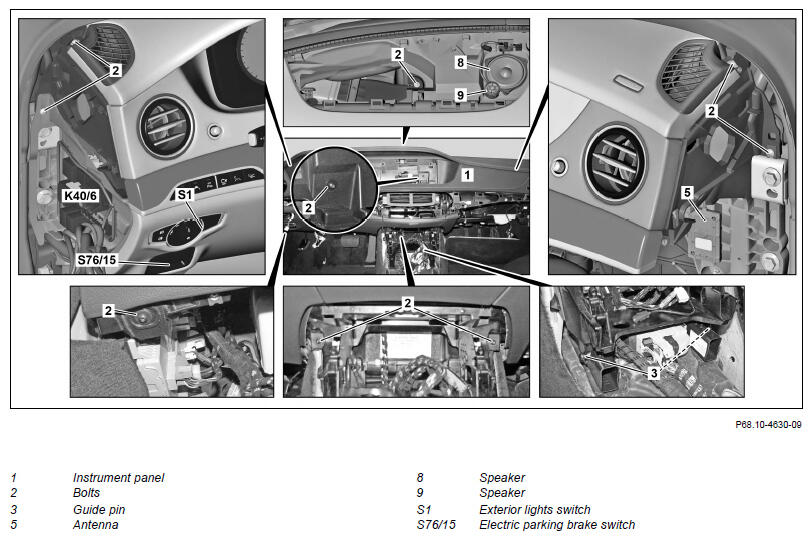

| 10 | Remove speaker (8). | ||
| 11 | Remove speaker (9). | Model 222 with code 811 (High-End sound system) |
|
| 12 | Remove screw/bolts (2). | ||

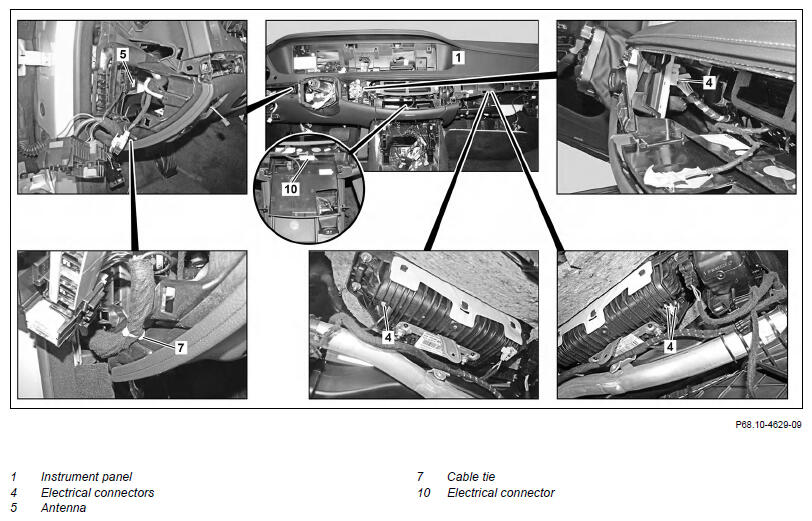

| 13 | Disconnect cable tie (7). | ||
| 14 | Remove exterior lights switch (S1). | ||
| 15 | Remove electric parking brake switch (S76/15). | ||
| 16 | Unclip antennas (5) from the instrument panel (1). | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| 17 | Release and disconnect electrical connector (10). | ||
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| 18 | Release and disconnect the electrical connections (4). | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Fig 1 | |||
| 19 | Remove screws (3 pcs.) from the left and right head-up display. | Model 222 with code 463 (Head-up display) |
|
| 20 | Lift head-up display and release and disconnect electrical connector from the head-up display. | Model 222 with code 463 (Head-up display) |
|
| 21 | Carefully remove instrument panel (1) from vehicle. | with code 463 (Head-up display) Lift head-up display slightly when removing. |
|
| 22 | Remove head-up display from the instrument panel (1). | Model 222 with code 463 (Head-up display) When replacing instrument panel (1). |
|
| AR54.30-P-6400LF | |||
| 23 | Remove front passenger airbag. | When replacing instrument panel (1). | AR91.60-P-0680LF |
| 24 | Install in the reverse order. |
