Remove/Install Headliner - AR68.30-P-4300LW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/1
Shown on model 205.0 with code 414 (Sliding sunroof)
Shown on model 205.0 with code 235 (Active parking assist with PARKTRONIC)
Shown on model 205.0 with code 235 (Active Parking Assist with PARKTRONIC) and code 414 (Sliding sunroof)
Shown on model 205.0 with code 414 (Sliding sunroof)
| Remove/install | |||
| 1 | Completely open sliding roof lining on sliding roof | Model 205.0/1 with code 414 (Sliding sunroof) |
|
| 2 | Completely open front roller sun blind and rear roller sun blind on panoramic roof | Model 205.0/1 with code 413 (Automatic panoramic sliding sunroof) |
|
| 3 | Completely open roller sun blind on rear window | Model 205.0/1 with code 540 (Electric sunblind for rear window) |
|
| 4 | Remove inside rearview mirror (A67) | AR68.40-P-0001LW | |

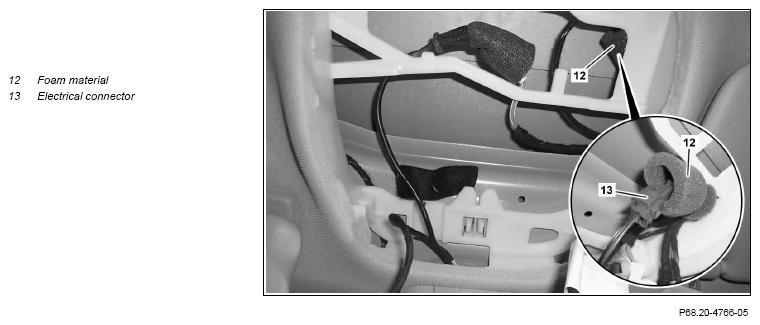

| 5 | Slightly fold back foam material (12) and disconnect electrical connectors (13) | Model 205.0/1 with code 235 (Active Parking Assist with PARKTRONIC) Completely pull foam material (12) over electrical connector (13). Otherwise noises can occur. |
|

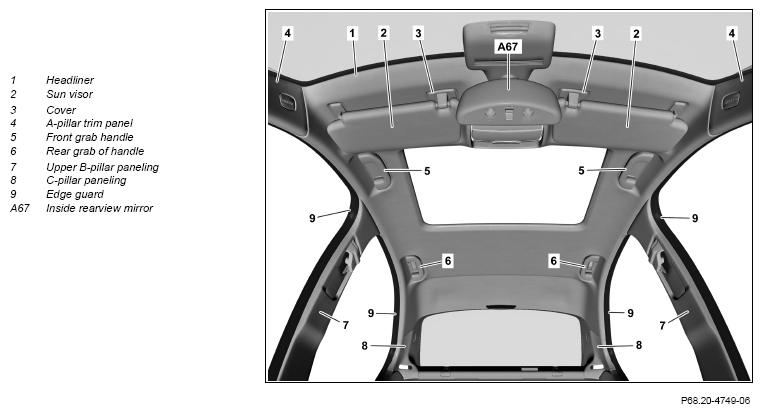

| 6 | Remove left and right sun visor (2). | AR68.60-P-5480NKB | |
| 7 | Unclip left and right cover (3) from roof lining (1) | ||
| 8 | Remove left and right A-pillar trim (4) | AR68.30-P-4050LW | |
| 9 | Remove front grab handles (5) and rear grab handles (6) | AR68.30-P-4330NKB | |
| 10 | Remove left and right top B-pillar trim (7) | AR68.30-P-4700LW | |
| 11 | Remove left and right C-pillar trim (8) and place to one side with installed seat belt | AR68.30-P-4490LW | |
| 12 | Remove left and right front seat | AR91.10-P-1000LW | |
| 13 | Remove center console | Model 205.0/1 with transmission 722, 724, 725 | AR68.20-P-2000LW |
| Model 205.0 with transmission 716 | AR68.20-P-2000LWA | ||
| 14 | Remove edge guards (9) in area of roof lining (1) from body flange | ||
| 15 | Press together the catch hooks (arrows) and unclip roof lining (1) from front roof frame | ||

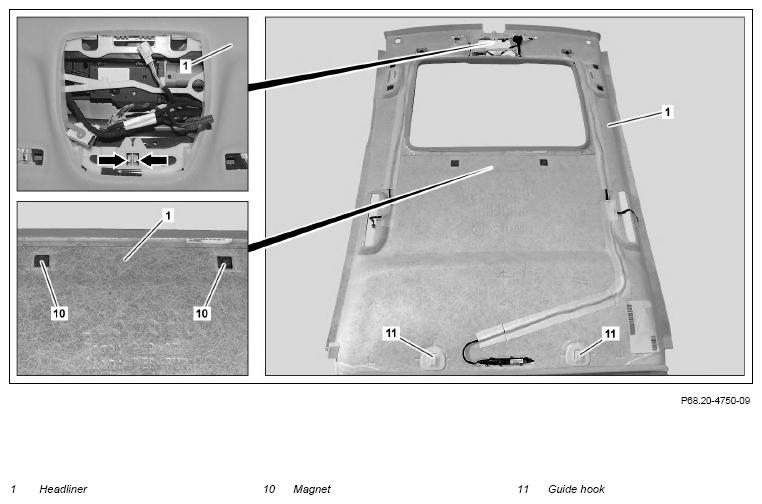

| 16 | Detach headliner (1) on magnets (10) from roof bow | ||
| 17 | Push headliner (1) toward rear until guide hooks (11) are unhooked from rear roof frame and lay headliner (1) down into vehicle | ||

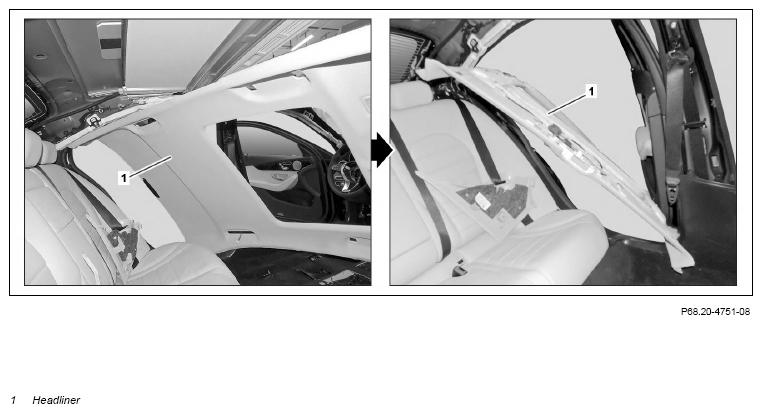

| 18 | Remove headliner (1) through rear left door cutout from vehicle as shown | ||
| 19 | Check all dampings on roof lining (1) for correct seat and status | Model 205.0 with code 460 (Canada version) Model 205.0 with code 494 (US version) Where roof lining (1) is reused. If complaint present ↓ Replace affected dampings on roof lining (1). |
|
| 20 | Prepare new headliner (1) for installation | When replacing roof paneling (1). | AR68.30-P-4305-16LW |
| Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | *BR00.45-Z-1144-02A | ||
| 21 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |
