Remove/Install Trim At C-Pillar - AR68.30-P-4490LW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205.0/1
Shown on right side of vehicle
| Remove/install | |||
| 1 | Remove seat cushion in the rear | MODEL 205.0/1 without CODE 248 (Rear seat with integrated child seat) without CODE P10 (Taxi package Germany) |
AR91.12-P-1020LW |
| MODEL 205.0/1 with CODE 248 (Rear seat with integrated child seat) MODEL 205.0 with CODE P10 (Taxi package Germany) |
AR91.12-P-1020LWA | ||
| 2 | Remove edge guard (2) in area of C-pillar paneling (1) | ||
| 3 | Unscrew bolt (3) | *BA91.40-P-1005-01U | |

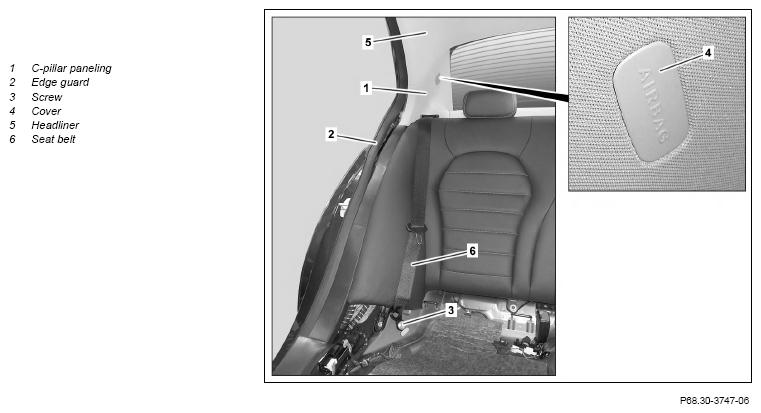

| 4 | Unclip cover (4) | Fig 1 | |
| 5 | Detach C-pillar paneling (1) from C-pillar, slightly tilt toward center of vehicle and then move out toward front | Otherwise the headliner (5) can be damaged. Clip in C-pillar paneling (1) completely preassembled. Ensure that C-pillar paneling (1) is seated correctly. |
|
| 6 | Guide seat belt (6) through C-pillar paneling (1) | ||
| 7 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | MODEL 205.0 | MODEL 205.1 | |
|---|---|---|---|---|
| BA91.40-P-1005-01U | Screw/bolt, rear belt end fitting | Nm | 35 | 35 |
