Remove/Install Center Console - AR68.20-P-2000LW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 with transmission 722, 724, 725
Shown on model 205.0 with code 386 (Comfort telephony)
| Remove/install | |||

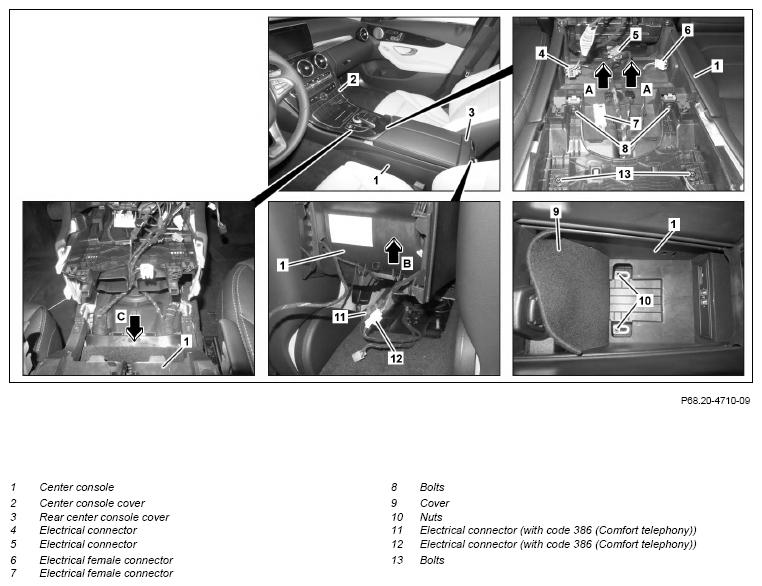

| 1 | Remove center console cover (2) | AR68.20-P-2350LW | |
| 2 | Remove rear center console covering (3) | AR68.20-P-2358LW | |
| 3 | Disconnect electrical connector (4) and unclip from center console (1) | ||
| 4 | Disconnect electrical connection (5) | ||
| 5 | Unclip electrical sockets (6, 7) from center console (1) | ||
| 6 | Unclip wiring harness from center console (1) (arrows A) | ||
| 7 | Lift paneling (9) in armrest stowage compartment and lay down to side | ||
| 8 | Unscrew nuts (10) | ||
| 9 | Remove screws (13) | ||
| 10 | Remove bolt (8) | ||
| 11 | Disconnect electrical connections (11, 12) | Model 205 with transmission 722, 724, 725 with code 386 (Comfort telephony) | |
| 12 | Lift center console (1) at rear (arrow B) and move out of instrument panel (arrow C) toward rear | ||
| 13 | Install in the reverse order |
