Overview Of Interior Illumination (IBL) System Components - GF82.20-P-9997RFM
Model 205
as of Model year 2019
Model 253 (except 253.99)
as of Model year 2020
Model 253.99

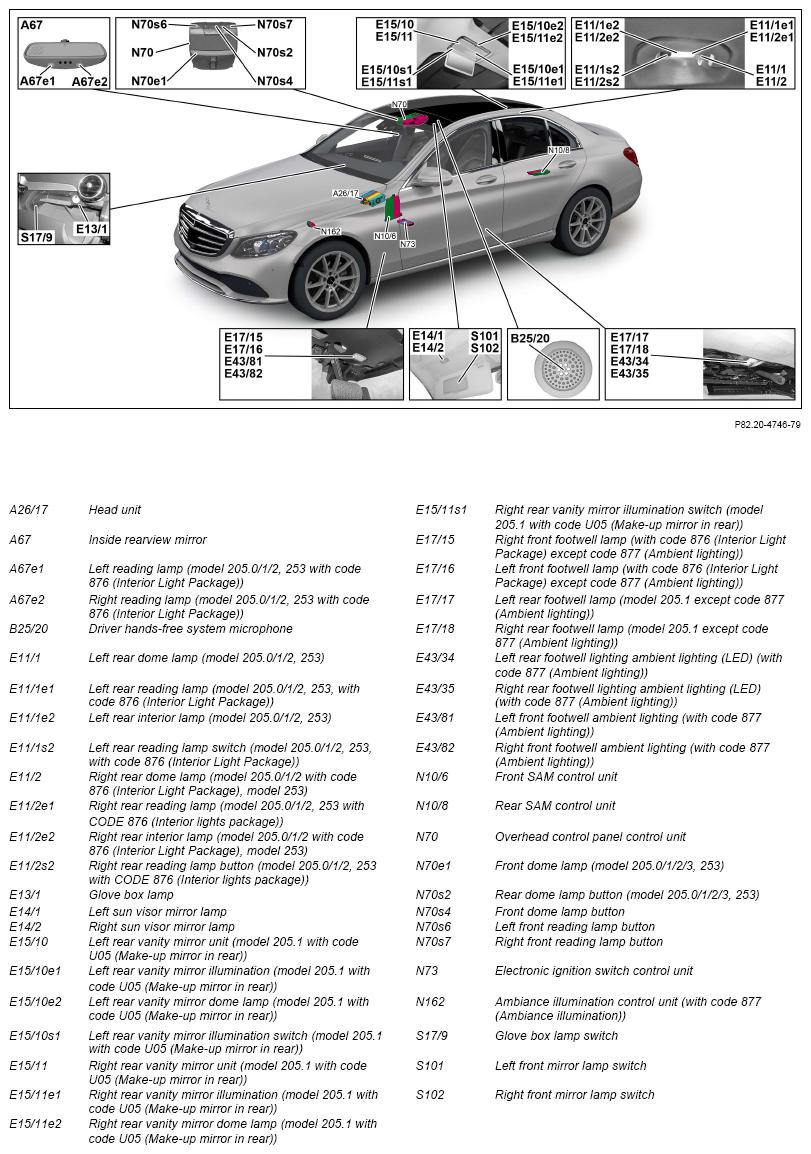

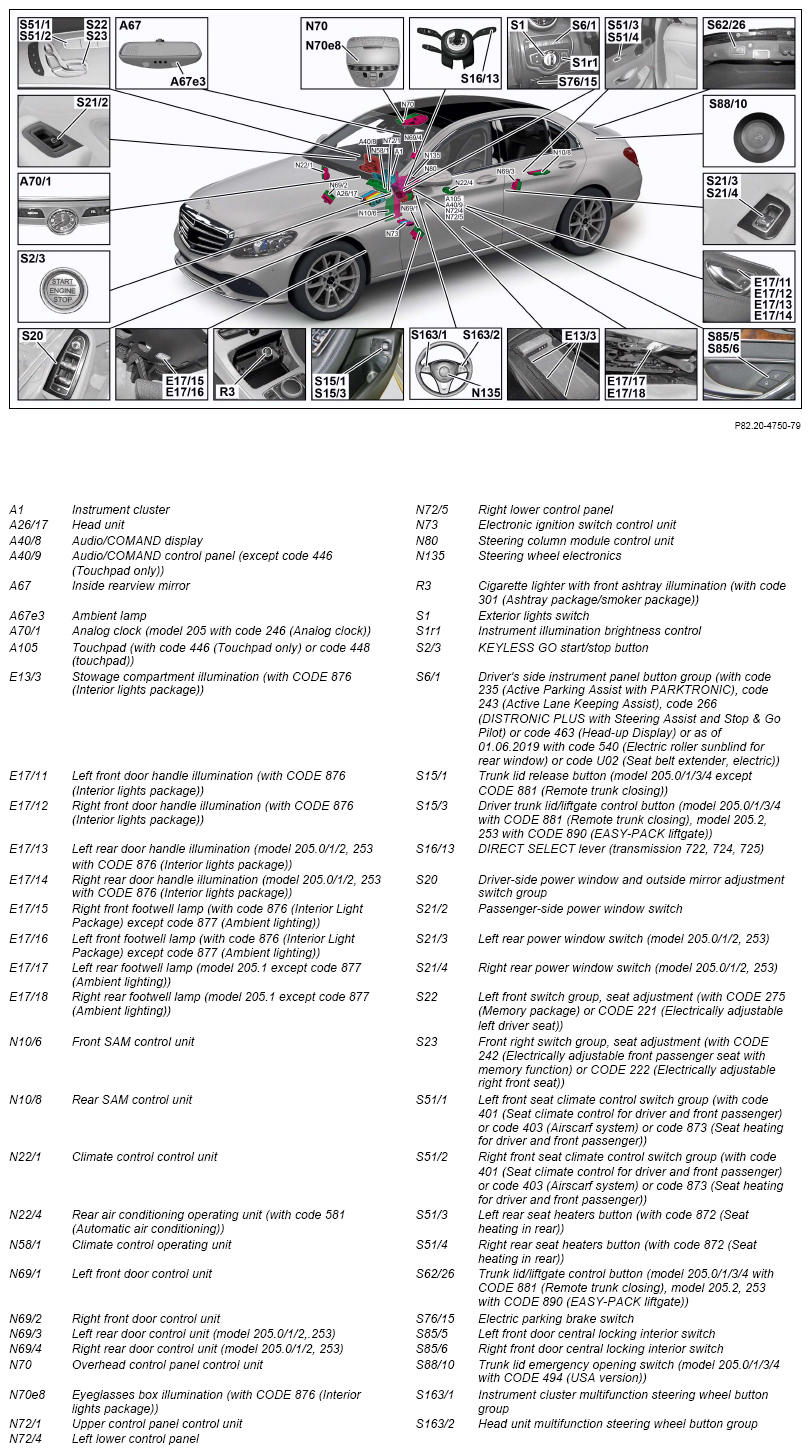

Manual interior lights control, shown on Model 205.0
Model 205.3
as of Model year 2019
with code 876 (Interior Light package)

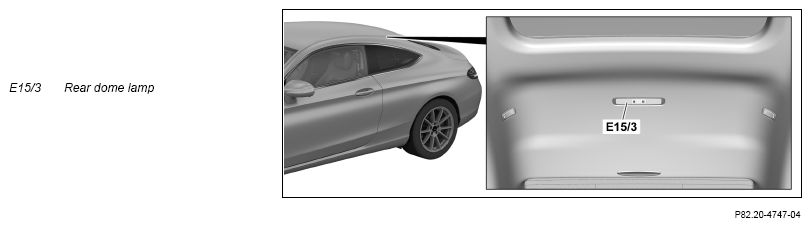

The rear dome lamp (E15/3) with the rear interior lamp (E15/3e3) is installed in addition.
Model 253 (except 253.99)
as of Model year 2020
with code 77B (Contactless gesture control at front)
The hand motion sensor (B84/15) is additionally installed.
Model 205.3 with CODE 876 (Interior lights package)
Model 205.4
as of Model year 2019

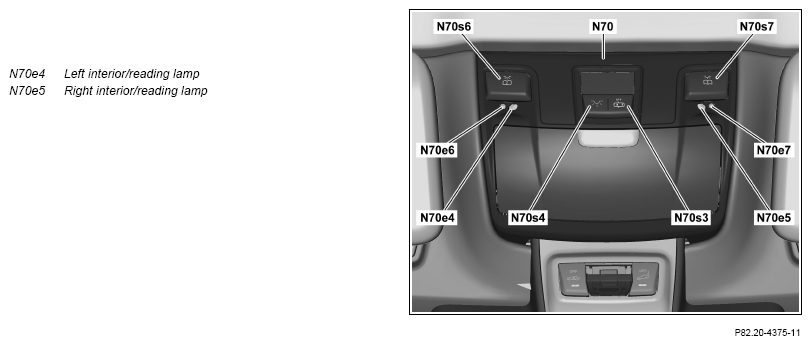

The left interior/reading lamp (N70e4) and the right interior/reading lamp (N70e5) are also installed.
Shown on overhead control panel control unit on Model 205.4

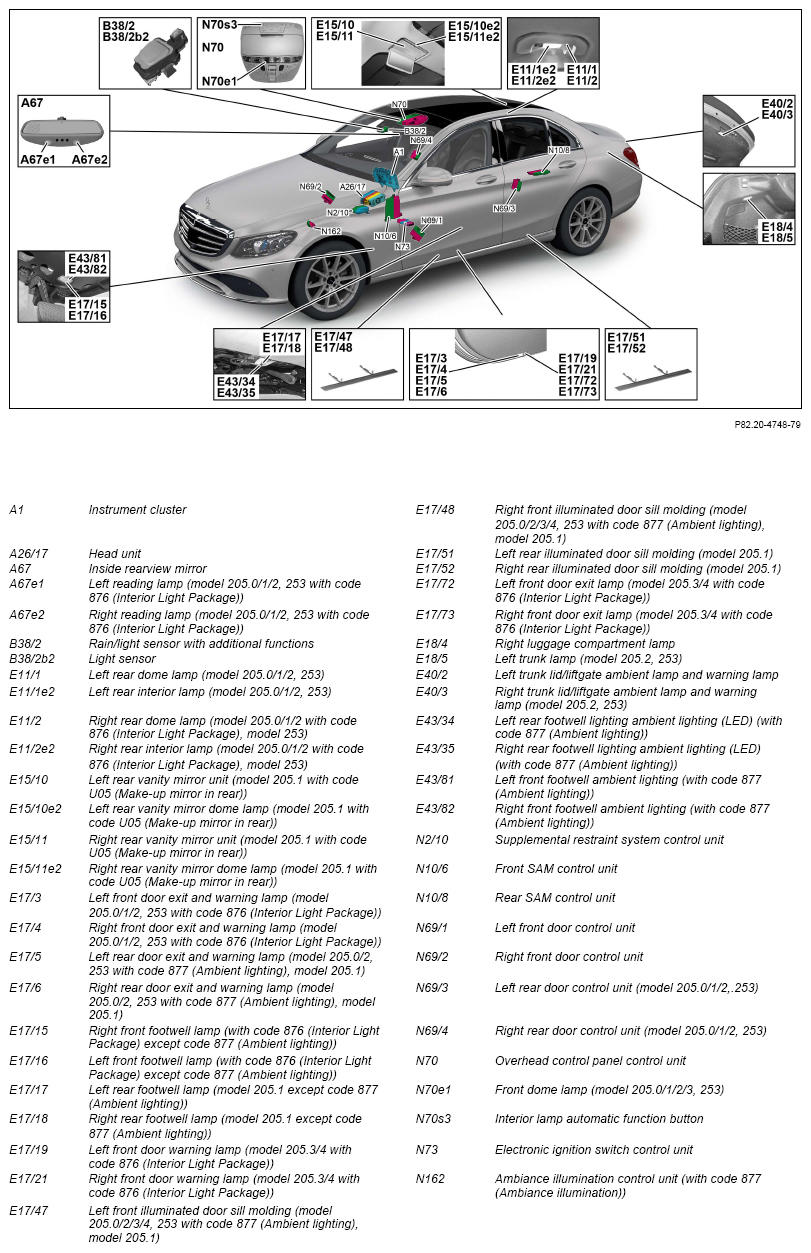

Automatic interior lights control, shown on Model 205.0
Model 205.3
as of Model year 2019
with code 876 (Interior Light package)
The rear dome lamp (E15/3) is also installed.
Model 205.4
as of Model year 2019
The left interior/reading lamp (N70e4) and the right interior/reading lamp (N70e5) are also installed.
Search and symbol illumination, shown on Model 205.0
Model 205.3
as of Model year 2019
with code 876 (Interior Light package)
The rear dome lamp (E15/3) with rear dome lamp ambiance illumination (E15/3e5) is also installed.
Model 205.4
as of Model year 2019
with code 351 (eCall emergency call system)
The emergency call system button group (S93/3) is also installed.

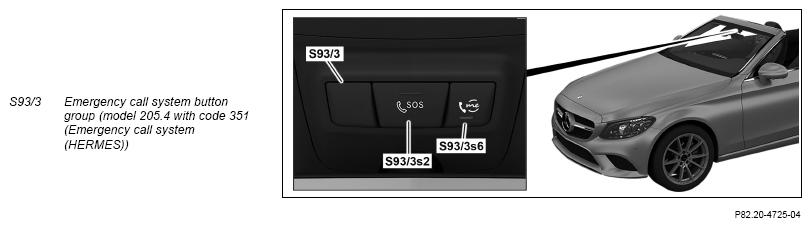

Emergency call system button group (S93/3) for Model 205.4 with code 351 (Emergency call system (HERMES))
Shown on overhead control panel control unit on Model 205.4

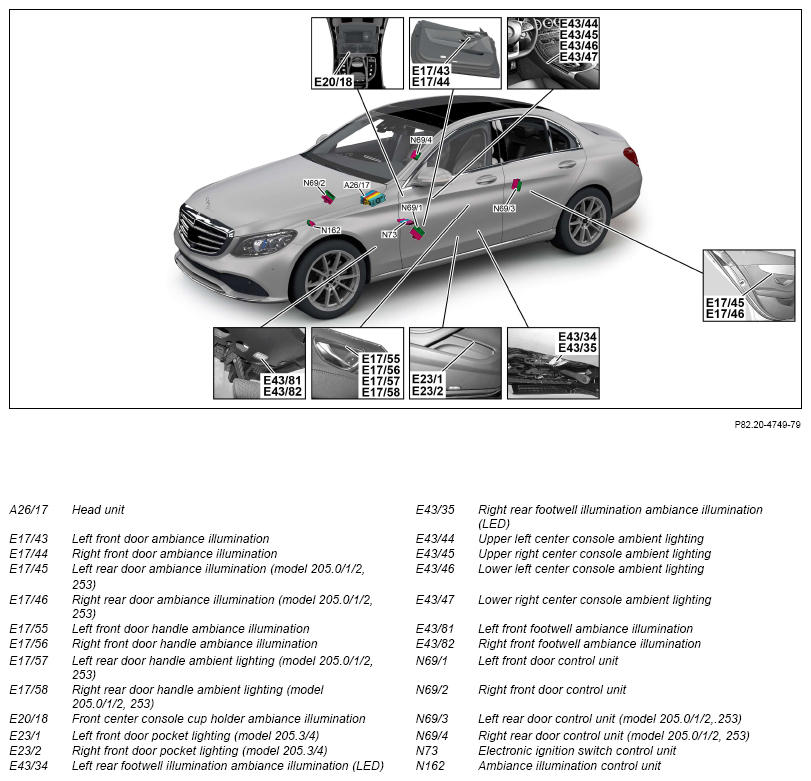

Ambiance illumination (with CODE 877 (Ambiance illumination)), shown on Model 205.0
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 253 (except 253.99) as of Model year 2020 with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 (except 253.99) as of Model year 2020 with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 (except 253.99) as of Model year 2020 with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) A26/17 |
GF82.85-P-3140RFM | |
| Model 205 as of Model year 2019 with code 506 (Audio 20 NTG 5.5 radio) Model 205 as of Model year 2019 with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253.99 with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND® display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND® control panel | Model 205 as of Model year 2019 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Hand motion sensor, component description | Model 253 (except 253.99) as of Model year 2020 with code 77B (Contactless gesture control at front) B84/15 |
GF82.90-P-4025RFM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Rear climate control operating unit, component description | Model 205 as of Model year 2019 with code 581 (Automatic climate control) Model 253 (except 253.99) as of Model year 2020 with code 581 (Automatic climate control) Model 253.99 with code 581 (Automatic climate control) N22/4 |
GF83.40-P-3050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of Model year 2019 Model 253 (except 253.353/354/953/954/99) as of Model year 2020 N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253 as of Model year 2019 Model 253.354/954 as of Model year 2020 Model 253.99 N30/4 |
GF42.45-P-5119RFH | ||
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2 as of Model year 2019 Model 253 (except 253.99) as of Model year 2020 Model 253.99 N69/3, N69/4 |
GF72.29-P-6021RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RFM | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RFM | |
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006RFM | |
| Ambiance illumination control unit, component description | Model 205 as of Model year 2019 with code 877 (Ambient lighting) Model 253 (except 253.99) as of Model year 2020 with code 877 (Ambient lighting) Model 253.99 with code 877 (Ambient lighting) N162 |
GF82.20-P-5161RFM | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998RF |
