Front Climate Control Operating Unit, Component Description - GF83.40-P-2260RF
Model 205, 253

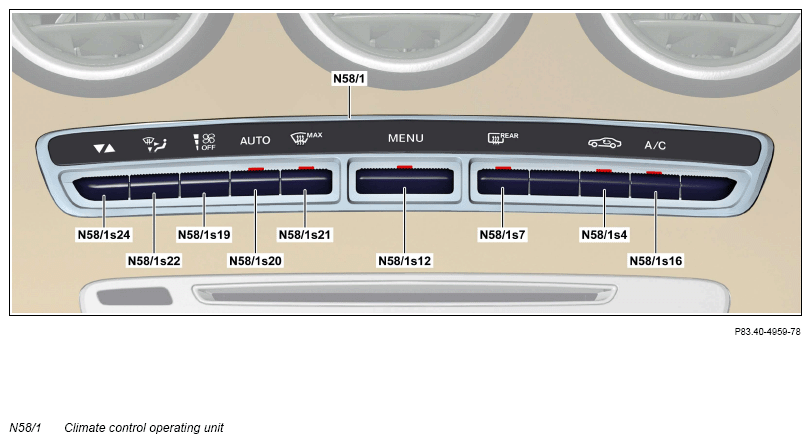

Model 205 (except model 205.012/013/047/053/147/212/213/247/253) with code 579 (One-zone air conditioning)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Climate control menu button (N58/1s12) | Climate control menu On/Off | Integrated LED and indicator in the Audio/COMAND® display (A40/8) |
| "A/C" button (N58/1s16) | Refrigerant compressor ON/OFF | Integrated LED |
| Front blower button (N58/1s19) | Set front blower setting | Audio/COMAND® display |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND® display |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND® display |
| Air distribution button (N58/1s22) | Change air distribution | Audio/COMAND® display |
| Temperature selection button (N58/1s24) | Specified temperature setting, front | Audio/COMAND® display |

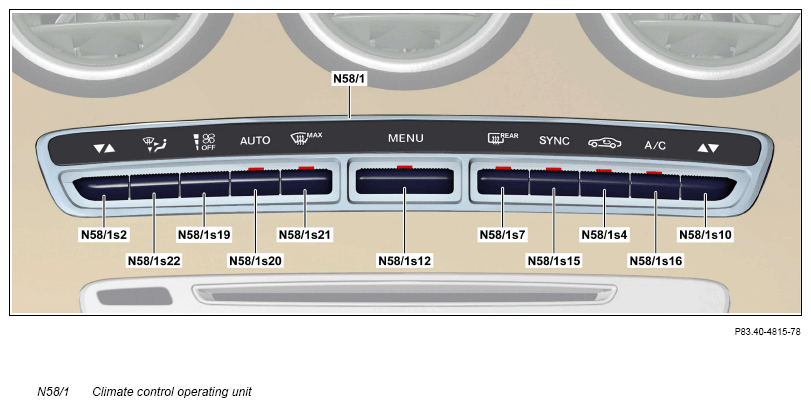

Model 205 (except 205.013/047/053/147/213/247/253), model 253 (except 253.354/954/99) with code 580 (Air conditioning), shown on model 205 Except code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Setting of specified temperature, left front | Audio/COMAND® display |
| Air recirculation mode button | Air recirculation mode ON/OFF | Integrated LED |
| Rear window heater button | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button (N58/1s10) | Setting of specified temperature, right front | Audio/COMAND® display |
| Climate control menu button | Climate control menu On/Off | Integrated LED and indicator in the Audio/COMAND® display |
| "SYNC" button (N58/1s15) | Accept settings of driver side for passenger side | Integrated LED and indicator in the Audio/COMAND® display |
| "A/C" button | Refrigerant compressor ON/OFF | Integrated LED |
| Blower button, front | Set front blower setting | Audio/COMAND® display |
| AUTO button, front | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND® display |
| Defrosting button | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND® display |
| Air distribution button | Change air distribution | Audio/COMAND® display |

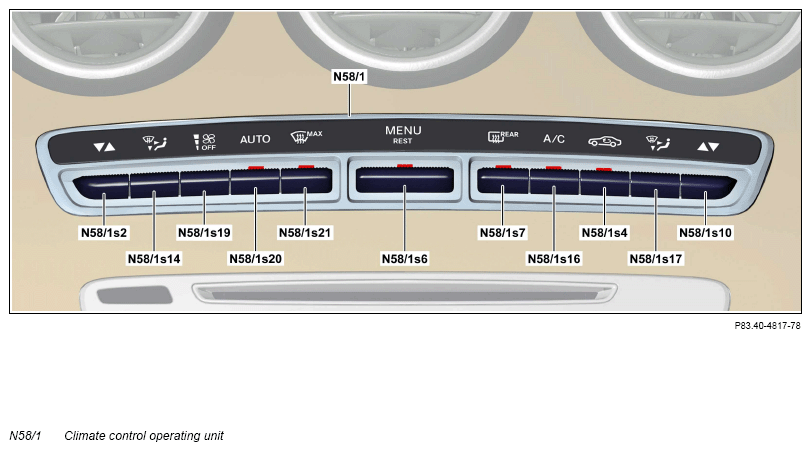

Model 205 (except 205.013/047/053/147/213/247/253), model 253 (except 253.354/954/99) with code 580 (Air conditioning), shown on model 205 with code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button | Setting of specified temperature, left front | Audio/COMAND® display |
| Air recirculation mode button | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OFF button (N58/1s6) | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 Off), otherwise indicator in Audio/COMAND® display |
| Rear window heater button | Rear window heater ON/OFF | Integrated LED |
| Stationary heater button (N58/1s8) | Stationary heater On/Off | Integrated LED |
| Right temperature selection button | Setting of specified temperature, right front | Audio/COMAND® display |
| "A/C" button | Refrigerant compressor ON/OFF | Integrated LED |
| Blower button, front | Set front blower setting | Audio/COMAND® display |
| AUTO button, front | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND® display |
| Defrosting button | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND® display |
| Air distribution button | Change air distribution | Audio/COMAND® display |

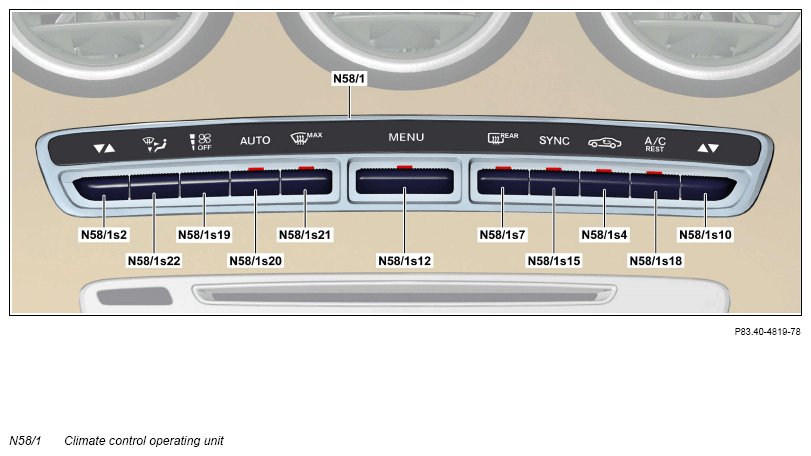

Model 205 (except 205.013/047/053/147/213/247/253) with code 580 (Air conditioning), shown on model 205 with code 965 (Taxi/rental car pre-installation)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button | Setting of specified temperature, left front | Audio/COMAND® display |
| Air recirculation mode button | Air recirculation mode ON/OFF | Integrated LED |
| Rear window heater button | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button | Setting of specified temperature, right front | Audio/COMAND® display |
| Climate control menu button | Climate control menu On/Off | Integrated LED and indicator in the Audio/COMAND® display |
| "SYNC" button | Accept settings of driver side for passenger side | Integrated LED and indicator in the Audio/COMAND® display |
| "A/C" and residual heat On/Off button (N58/1s18) | Residual heat utilization or refrigerant compressor ON/OFF | Integrated LED |
| Blower button, front | Set front blower setting | Audio/COMAND® display |
| AUTO button, front | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND® display |
| Defrosting button | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND® display |
| Air distribution button | Change air distribution | Audio/COMAND® display |

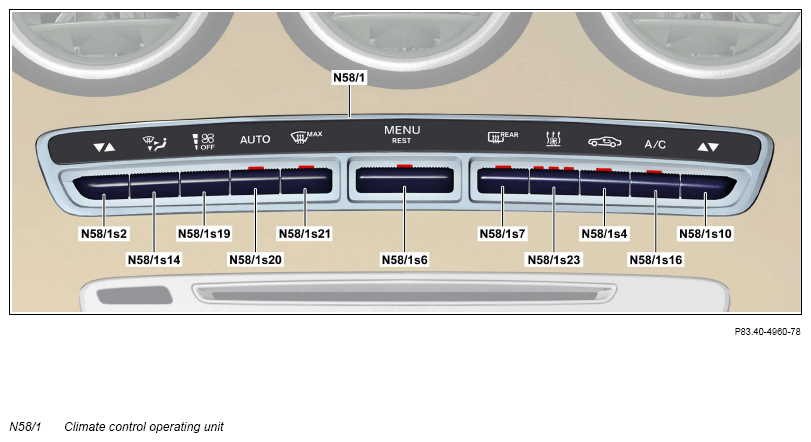

Model 205 (except 205.013/047/053/147/213/247/253), model 253 (except 253.354/954/99) with code 581 (Automatic air conditioning), shown on model 205 except code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button | Setting of specified temperature, left front | Audio/COMAND® display |
| Air recirculation mode button | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat on/off button | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 Off), otherwise indicator in Audio/COMAND® display |
| Rear window heater button | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button | Setting of specified temperature, right front | Audio/COMAND® display |
| Left air distribution button (N58/1s14) | Change left air distribution | Audio/COMAND® display |
| "A/C" button | Refrigerant compressor ON/OFF | Integrated LED |
| Right air distribution button (N58/1s17) | Change right air distribution | Audio/COMAND® display |
| Blower button, front | Set front blower setting | Audio/COMAND® display |
| AUTO button, front | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND® display |
| Defrosting button | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND® display |

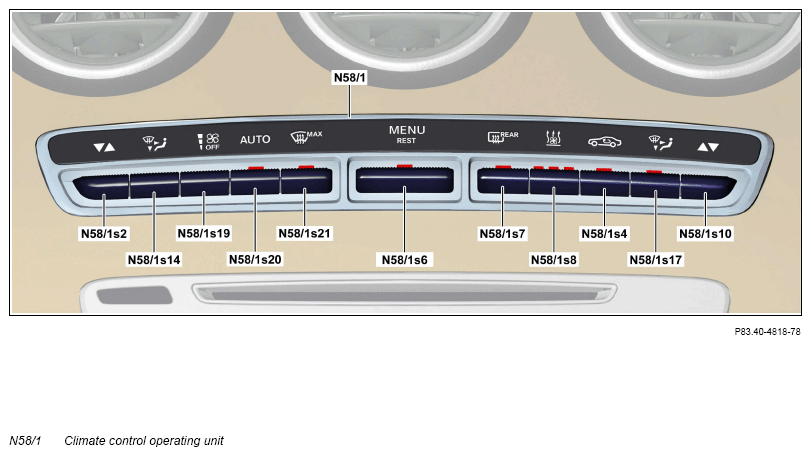

Model 205 (except 205.013/047/053/147/213/247/253), model 253 (except 253.354/954/99) with code 581 (Automatic air conditioning), shown on model 205 with code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button | Setting of specified temperature, left front | Audio/COMAND® display |
| Air recirculation mode button | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat on/off button | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 Off), otherwise indicator in Audio/COMAND® display |
| Rear window heater button | Rear window heater ON/OFF | Integrated LED |
| Stationary heater button | Stationary heater On/Off | Integrated LED |
| Right temperature selection button | Setting of specified temperature, right front | Audio/COMAND® display |
| Air distribution button, left | Change left air distribution | Audio/COMAND® display |
| Air distribution button, right | Change right air distribution | Audio/COMAND® display |
| Blower button, front | Set front blower setting | Audio/COMAND® display |
| AUTO button, front | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND® display |
| Defrosting button | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND® display |
Model 205.013/047/053/147/213/247/253, model 253.354/954/99, shown on model 205
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button | Setting of specified temperature, left front | Audio/COMAND® display |
| Air recirculation mode button | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat on/off button | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 Off), otherwise indicator in Audio/COMAND® display |
| Rear window heater button | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button | Setting of specified temperature, right front | Audio/COMAND® display |
| Air distribution button, left | Change left air distribution | Audio/COMAND® display |
| "A/C" button | Refrigerant compressor ON/OFF | Integrated LED |
| Blower button, front | Set front blower setting | Audio/COMAND® display |
| AUTO button, front | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND® display |
| Defrosting button | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND® display |
| Pre-entry climate control button (N58/1s23) | Pre-entry climate control ON/OFF | Integrated LED |
The air conditioning system or the respective refrigerant compressor can be switched off using the "A/C" button or "A/C" and residual heat ON/OFF button. If these buttons are not installed on a control panel, the air conditioning or the respective refrigerant compressor can only be switched off via the menu in the head unit (A26/17).
The "SYNC" function is available independently from the operating unit via the Audio/COMAND® control panel (A40/9) (even if the installed operating unit does not have a "SYNC button").
Location
The climate control operating unit is located in the center console.
Tasks
The climate control operating unit has the following tasks:
- Reception of signals and requests
- Transmission of signals and requests
Reception of signals and requests
The climate control operating unit receives requests for function feedback via the climate control LIN (LIN B8-3) for the following functions:
- Climate control
- Recirculated air mode
- Rear window heater (R1)
- Stationary heater (with CODE 228 (Stationary heater))
- Pre-entry climate control (model 205.013/047/053/147/213/247/253, model 253.354/954/99)
- Residual heat utilization (with code 228 (Stationary heater) or code 581 (Automatic air conditioning) or code 965 (Taxi/rental car preinstallation) or model 205.013/047/053/147/213/247/253, model 253.354/954/99)
- Windshield defrost function
Transmission of signals and requests
The climate control operating unit sends function requests via the climate control LIN that can be selected via the following controls:
- Left temperature selection button (with CODE 580 (A/C) or CODE 581 (Automatic air conditioning))
- Air recirculation mode button
- Climate control and residual heat ON/OFF menu button (with code 228 (Stationary heater) or code 581 (Automatic air conditioning) or model 205.013/047/053/147/213/247/253, 253.354/954/99)
- Rear window heater button
- Stationary heater button (with CODE 228 (Stationary heater))
- Right temperature selection button (with CODE 580 (A/C) or CODE 581 (Automatic air conditioning))
- Climate control menu button (with code 579 (Single-zone air conditioning) or code 580 (Air conditioning) and except code 228 (Stationary heater))
- Left air distribution button (with CODE 581 (Automatic air conditioning))
- "SYNC" button (with code 580 (Air conditioning) or code 965 (Taxi/rental car preinstallation))
- "A/C" button (with code 579 (One-zone air conditioning) or code 580 (Air conditioning) or code 581 (Automatic air conditioning) and except code 228 (Stationary heater) or model 205.012/013/047/053/147/212/213/247/253, 253.354/954/99)
- Right air distribution button (with CODE 581 (Automatic air conditioning))
- "A/C" and residual heat ON/OFF button (with code 965 (Taxi/rental car pre-installation))
- Blower button, front
- AUTO button, front
- Defrosting button
- Air distribution button (with code 579 (Single-zone air conditioning) or code 580 (Air conditioning))
- Pre-entry climate control (model 205.013/047/053/147/213/247/253, model 253.354/954/99)
- Temperature selection button (with code 579 (Single-zone air conditioning))
