Remove/Install Right Catalytic Converter - AR49.10-P-5503MND

Engine 276.8 in model 213, 238

Shown on engine 276.853

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Fig 1: Right Catalytic Converter Components Location - Engine 276.8 In Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove
1	Remove right air filter housing		AR09.10-P-1152MND
2	Remove soundproofing of right rail
3	Unclip electrical connections (21, 22), release and disconnect	Engine 276.823 in model 213, 238

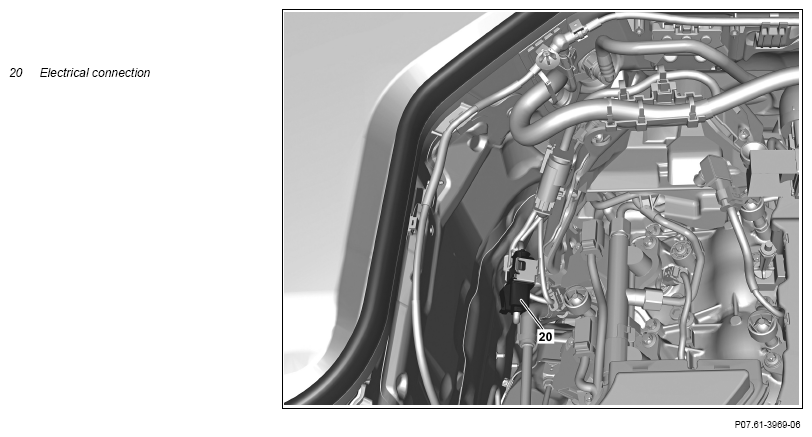

4	Unclip, release and disconnect electrical connection (20)	Engine 276.853 in model 213
5	Remove rear lower engine compartment paneling		AR61.20-P-1105LWE

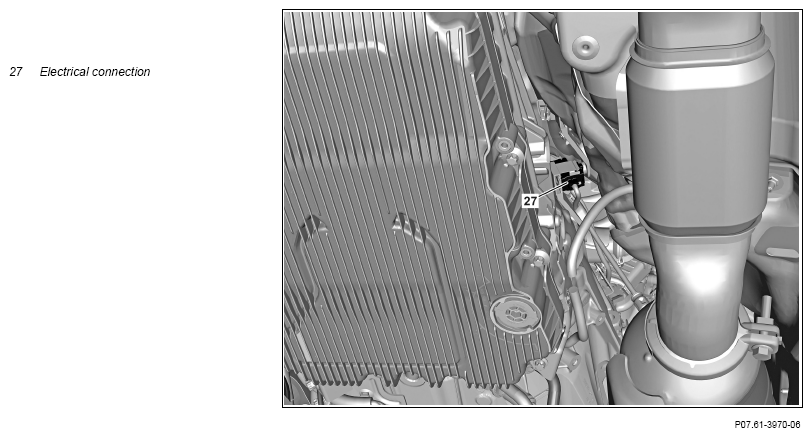

6	Unclip electrical connections (27), release and disconnect	Engine 276.853 in model 213
7	Remove screw/bolts of holder (8) of CAT (2) on transmission and take out CAT (2) downwards
8	Detach screw/bolts (11) of catalytic converter (2) from exhaust line
9	Remove screw/bolt of clamp (3) at center exhaust system
10	Remove clamp (3) and remove CAT (2) downwards
11	Modify oxygen sensor upstream of catalytic converter (6)	When replacing catalytic converter (2).	AR07.04-P-0083MND
12	Modify oxygen sensor downstream of catalytic converter (7)	When replacing catalytic converter (2).	AR07.04-P-0084MND
13	Remove exhaust line to ATL	When replacing the catalytic converter (2).	AR09.40-P-6038MND
14	Remove combustion and corrosion residue at connecting points
	Install
15	Install new exhaust line to ATL	When replacing the catalytic converter (2).	AR09.40-P-6038MND
16	Replace sealing ring on CAT (2) to center exhaust system
17	Position CAT (2)
18	Position clamp (3)
19	Tighten screw/bolts of bracket (8) of CAT (2) on torque converter housing slightly by hand
20	Tighten screw/bolts (10) of CAT (2) on exhaust line slightly by hand	Replace screw/bolts (10).
21	Tighten screw/bolt of clamp (3) on center exhaust system slightly by hand	Replace clamp (3).
22	Check installation position and unobstructed movement of catalytic converter (2)
23	Tighten screw/bolts of holder (8) of CAT (2) on torque converter housing	engine 276.8 in model 213Nut/bolt, catalytic converter bracket to torque converter housing/engine	*BA49.10-P-1007-02G
		engine 276.8 in model 238Nut/bolt, catalytic converter bracket to torque converter housing/engine	*BA49.10-P-1007-02I
24	Tighten screw/bolts (11) of catalytic converter (2) on exhaust line	engine 276.8 in model 213Screw/bolt for catalytic converter at front exhaust line	*BA49.10-P-1012-02G
		engine 276.8 in model 238Bolt, catalytic converter to front exhaust line	*BA49.10-P-1012-02I
25	Tighten screw/bolt of clamp (3) at center exhaust system	engine 276.8 in model 213Clamp at turbocharger and catalytic converter/front exhaust line	*BA49.10-P-1001-02G
		engine 276.8 in model 238Clamp at turbocharger and catalytic converter/front exhaust line	*BA49.10-P-1001-02I
26	Put together electrical connections (21, 22), lock and clip in	Engine 276.823 in model 213, 238
27	Plug in electrical connection (20) together, lock and clip in	Engine 276.853 in model 213
28	Plug in electrical connection (27) together, lock and clip in	Engine 276.853 in model 213
29	Install soundproofing of right rail
30	Install right air filter housing		AR09.10-P-1152MND
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
31	Carry out an engine test run and check exhaust system for leaktightness
32	Install rear lower engine compartment paneling		AR61.20-P-1105LWE

EXHAUST SYSTEM

Number	Designation		Model 213 with engine 276
BA49.10-P-1001-02G	Clamp at turbocharger and catalytic converter/front exhaust line	Nm	17

EXHAUST SYSTEM

Number	Designation		Model 238 with engine 276
BA49.10-P-1001-02I	Clamp at turbocharger and catalytic converter/front exhaust line	Nm	17

EXHAUST SYSTEM

Number	Designation			Model 213 with engine 276
BA49.10-P-1007-02G	Nut/bolt, catalytic converter bracket to torque converter housing/engine	M8	Nm	-
		M10	Nm	39

EXHAUST SYSTEM

Number	Designation			Model 238 with engine 276
BA49.10-P-1007-02I	Nut/bolt, catalytic converter bracket to torque converter housing/engine	M8	Nm	-
		M10	Nm	39

EXHAUST SYSTEM

Number	Designation		Model 213 with engine 276
BA49.10-P-1012-02G	Screw/bolt for catalytic converter at front exhaust line	Nm	22

EXHAUST SYSTEM

Number	Designation		Model 238 with engine 276
BA49.10-P-1012-02I	Bolt, catalytic converter to front exhaust line	Nm	22
