Remove/Install Front Engine Mount - AR22.10-P-4330MSA

Engine 256 in model 213, 238, 257, 290

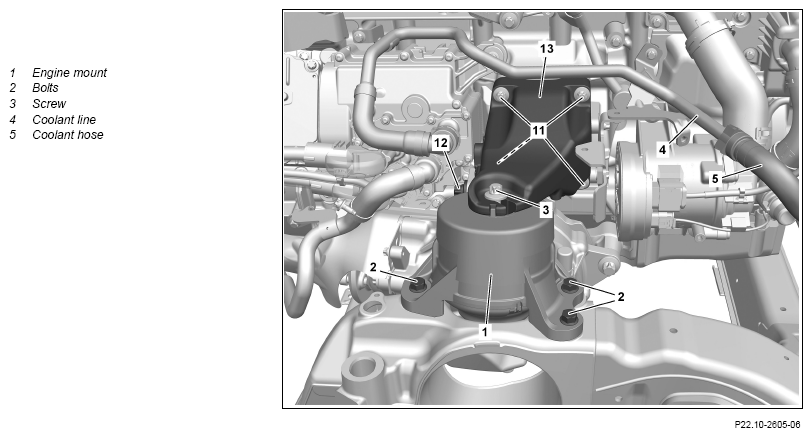

Fig 1: Front Engine Mount Component Location - Engine 256 In Model 213
G13745286Courtesy of MERCEDES-BENZ USA
G13745287Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVINGINSTALLING Remove/install
1 Remove charge-air distributor. Engine 256.9 in model 213, 238, 257, 290 AR09.41-P-8683MSA

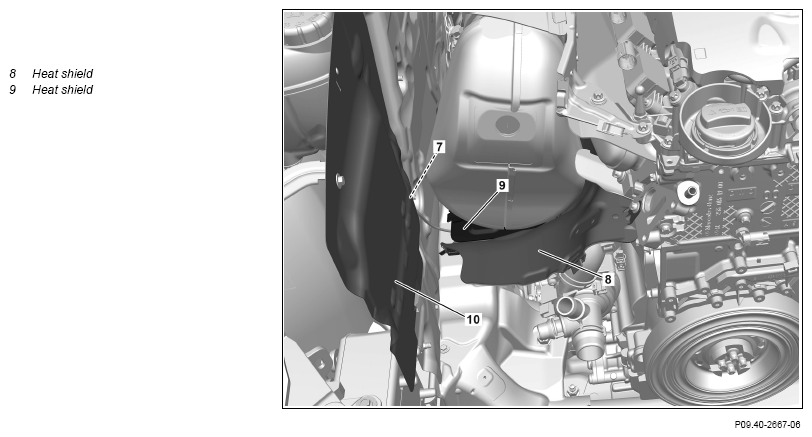

2 Remove heat shields (8, 9). TORQUE SPECIFICATION M6X1 *BA00.10-P-1002-04A
3 Mount engine support fixture. Engine 256.9 in model 213, 238, 257, 290 AR01.10-P-2400-18MSA
TORQUE SPECIFICATION Screw/bolt, upper struts to suspension strut tower mounting bracket *BA62.30-P-1001-02K
TORQUE SPECIFICATION Screw, low-temperature circuit expansion reservoir to crossmember *BA20.20-P-1004-02MR
SPECIAL TOOL Engine lifting device Fig 5
SPECIAL TOOL Adapter kit Fig 9
SPECIAL TOOL Adaptation plates Fig 8
SPECIAL TOOL Adapter set Fig 3
SPECIAL TOOL Mount Fig 7
SPECIAL TOOL Adaptation of engine lifting device Fig 2
4 Remove front axle shafts. Engine 256 in model 213, 238, 257, 290 with code M005 (4MATIC) Engine 256 in model 213, 238 with code M005 (4MATIC) AR33.30-P-0620LW
Engine 256 in model 290 with code M005 (4MATIC) AR33.30-P-0620MNI
Engine 256 in model 257 with code M005 (4MATIC) AR33.30-P-0620MSA
5 Remove screw (3) of the right and left engine mount (1). TORQUE SPECIFICATION Engine 256.9 in model 238 except code M005 (4MATIC)
Engine 256.9 in model 238 with code M005 (4MATIC) Bolt, front engine mount to engine support		 *BA22.10-P-1001-03O
TORQUE SPECIFICATION Engine 256.9 in model 213, 257, 290Bolt, front engine mount to engine support *BA22.10-P-1001-03N
SPECIAL TOOL Engine mount wrench set Fig 4
6 Remove coolant hose (5) from coolant line (4) and seal openings with suitable stop plugs. When removing right engine mount (1).
    SPECIAL TOOL Record plug Fig 6
7 Lift engine until left and right engine mount (1) is relieved. NOTES
Raise engine carefully.
Damage may otherwise occur to lines and hoses.
8 Remove screws/bolts (2). TORQUE SPECIFICATION Engine 256.9 in model 238 except code M005 (4MATIC)
Engine 256.9 in model 238 with code M005 (4MATIC) Bolt, front engine mount to front axle carrier		 *BA22.10-P-1002-03O
TORQUE SPECIFICATION Engine 256.9 in model 213, 257, 290Bolt, front engine mount to front axle carrier *BA22.10-P-1002-03N
9 Remove left and right engine mount (1) IMPORTANT If necessary, press engine to the side.
IMPORTANT Observe environmental protection regulations for the disposal of the left and right engine mount (1).
Dispose of left and right engine mount (1) into mixed scrap.
IMPORTANT Always replace left and right engine mount (1) in pairs.
IMPORTANT Aid of helper required.
10 Install in the reverse order.
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6x1 Nm 9 13
ENGINE RADIATOR, COOLANT HOSES AND LINES

Number Designation Engine 256
BA20.20-P-1004-02MRT Screw, low-temperature circuit expansion reservoir to crossmember Nm 8
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 213 with engine 256, 264, 274, 276, 642, 654, 656 Model 257
BA22.10-P-1001-03N Bolt, front engine mount to engine support M10 Stage 1 Nm 50 50
Stage 2 ∠° - -
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 290 with engine 256
BA22.10-P-1001-03N Bolt, front engine mount to engine support M10 Stage 1 Nm 50
Stage 2 ∠° -
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 238 except code M005 (4MATIC) Model 238 with code M005 (4MATIC)
BA22.10-P-1001-03O Bolt, front engine mount to engine support Nm 50 50
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 213 with engine 256, 264, 274, 276, 642, 654, 656 Model 257
BA22.10-P-1002-03N Bolt, front engine mount to front axle carrier M8 Nm 30 30
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 290 with engine 256
BA22.10-P-1002-03N Bolt, front engine mount to front axle carrier M8 Nm 30
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 238 except code M005 (4MATIC) Model 238 with code M005 (4MATIC)
BA22.10-P-1002-03O Bolt, front engine mount to front axle carrier Nm 30 30
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 213 Model 238
BA62.30-P-1001-02K Screw/bolt, upper struts to suspension strut tower mounting bracket Stage 1   Nm 35 35
Stage 2   Nm 50 50
Stage 3 Release ∠° 180 180
Stage 4   Nm 50 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1001-02K Screw/bolt, upper struts to suspension strut tower mounting bracket Stage 1   Nm 35 35
Stage 2   Nm 50 50
Stage 3 Release ∠° 180 180
Stage 4   Nm 50 50
Fig 2: Identifying Adaptation Of Engine Lifting Device (642 589 00 61 00)
G13655188Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Adapter Set (715 589 22 63 00)
G13770014Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G12816349Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Engine Lifting Device (240 589 00 61 00)
G13655194Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Record Plug (129 589 00 91 00)
G13745292Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Mount (240 589 00 61 10)
G13655189Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Adaptation Plates (240 589 00 32 00)
G13655190Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Adapter Kit (240 589 01 31 00)
G11974182Courtesy of MERCEDES-BENZ USA
