Attach/Detach Engine Support Fixture - AR01.10-P-2400-18MSA

Engine 256.9 in model 213, 238, 257, 290

	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A

MODIFICATION NOTES

20.04.2018

Screw/bolt, upper struts to suspension strut tower mounting bracket

Model 257

BA62.30-P-1001-02K

ENGINE RADIATOR, COOLANT HOSES AND LINES

Number	Designation		Engine 256
BA20.20-P-1004-02MRT	Screw, low-temperature circuit expansion reservoir to crossmember	Nm	8

FROND END WITH FRONT REINFORCEMENT

Number	Designation				Model 213	Model 238
BA62.30-P-1001-02K	Screw/bolt, upper struts to suspension strut tower mounting bracket	Stage 1		Nm	35	35
		Stage 2		Nm	50	50
		Stage 3	Release	∠°	180	180
		Stage 4		Nm	50	50

FROND END WITH FRONT REINFORCEMENT

Number	Designation				Model 257	Model 290
BA62.30-P-1001-02K	Screw/bolt, upper struts to suspension strut tower mounting bracket	Stage 1		Nm	35	35
		Stage 2		Nm	50	50
		Stage 3	Release	∠°	180	180
		Stage 4		Nm	50	50

Fig 1: Identifying Adapter (257 589 00 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adaptation Of Engine Lifting Device (642 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Mount (240 589 00 61 10)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter Set (715 589 22 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Adaptation Plates (240 589 00 32 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Adapter Kit (240 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Engine Hoist (205 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Engine Lifting Device (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Remove covers (1).
Remove seal (2) in area of seals (3).
Remove expansion reservoir low-temperature circuit from crossmember .

Courtesy of MERCEDES-BENZ USA
Remove bolts (4) Engine 256.9 in model 213, 238, 257, 290 .
Install ring nuts (5) with thread adapter from adapter set and tighten.

Courtesy of MERCEDES-BENZ USA

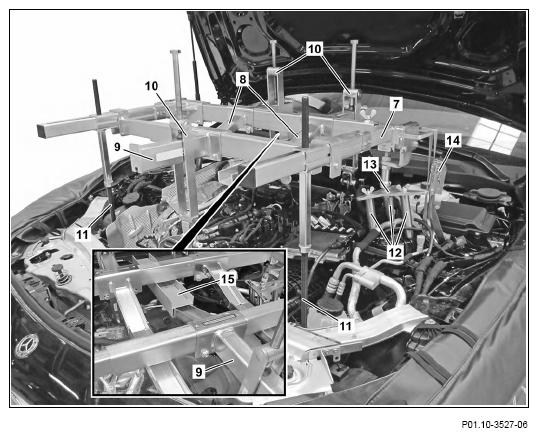

Attach engine hoist (11) to engine hoist (7).
Insert adapter (15) in engine hoist adaptation (9) and install engine hoist adaptation (9) on engine hoist (7).
Observe the manufacturer's assembly specifications and safety information.
Install engine hoist adaptations (8) on engine hoist (7).
Install mounts (10) on engine hoist adaptations (8, 9).
Install adapters (12) on left and right on adaptation plates (13).

Courtesy of MERCEDES-BENZ USA
Install adaptation plates (13) on left and right on engine hoist (7).
Attach assembled engine hoist (7) to suspension strut towers and longitudinal members.
Aid of helper required.

Observe the manufacturer's assembly specifications and safety information.
Adjust engine hoist (7), align horizontally and tighten threaded connections.
Secure engine hoist (7) using tensioning straps (14).
Install shackles on mounts (10) and engine lifting lugs (6).
Slightly tighten tensioning screws of mounts (10).
Do not subject engine mounts to tension.

Engine mount will otherwise be damaged
Remove in the reverse order.
