(Remove/Install Front Axle Shafts - AR33.30-P-0620MNI)

Model 290 with transmission 725.0

with code M005 (4MATIC)

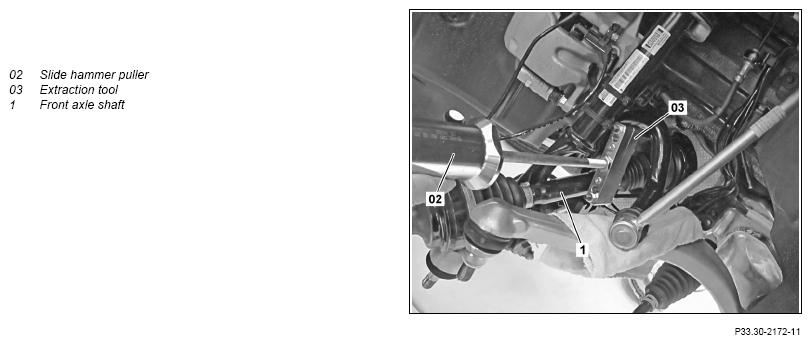

G13771972Courtesy of MERCEDES-BENZ USA

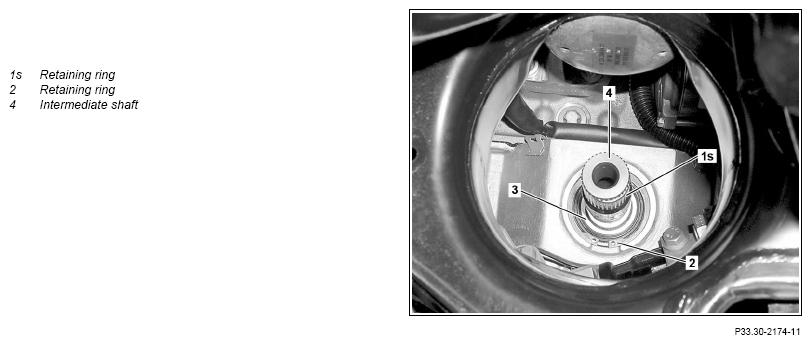

G13771973Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
INSTALLING Remove
1 Remove left or right front wheel-and-tire assembly.   AR40.10-P-1102A
2 Unscrew screw of front axle shaft (1) on wheel hub. IMPORTANT The aid of a helper is required to remove the screw.
3 Detach steering knuckle from upper transverse control arm.   AR33.25-P-0400FRX
4 Remove front axle shaft (1) from steering knuckle.
5 Pull front axle shafts (1) out of front axle differential and intermediate shift (4) using impact extractor (02) and pull-off device (03). NOTES
If the left front axle shaft (1) is seized, remove the retaining ring (2) on the intermediate shaft (4) and pull out the left front axle shaft (1) with the intermediate shaft (4). Otherwise the oil pan may be damaged.
NOTES
Ensure scrupulous cleanliness when working on the front axle differential.
Otherwise the front axle differential will be damaged.

SPECIAL TOOL Extraction tool Fig 2
SPECIAL TOOL impact extractor Fig 1
6 Fix steering knuckle in place on upper transverse control arm.
7.1 Remove retaining ring from front axle shaft (1). When removing right front axle shaft (1).
7.2 Remove retaining ring (1s) of intermediate shaft (4). When removing left front axle shaft (1).
8 Remove radial shaft sealing ring. When removing right front axle shaft (1). AR33.30-P-0540MNI
INSTALLING Install
9 Check dust boots of front axle shafts (1). If damage is found,

Replace respective front axle shaft (1).

10 Install radial shaft sealing ring. When installing right front axle shaft (1). TORQUE SPECIFICATION Replace radial shaft sealing ring. AR33.30-P-0540MNI
11.1 Install retaining ring (1s) of intermediate shaft (4). When installing left front axle shaft (1).
TORQUE SPECIFICATION Replace retaining ring (1s) of intermediate shaft (4).
TORQUE SPECIFICATION Apply light coating of microgrease to retaining ring (1s).

Klueber Microlube GNY 202 *BR00.45-Z-1071-06A
11.2 Install retaining ring of front axle shaft (1). When installing right front axle shaft (1).
TORQUE SPECIFICATION Replace retaining ring of front axle shaft (1).
TORQUE SPECIFICATION Apply light coating of microgrease to retaining ring.

Klueber Microlube GNY 202 *BR00.45-Z-1071-06A
12 Install intermediate shaft (4). If necessary. AR33.30-P-0625MNI
13 Lightly grease gearing of intermediate shaft (4). Before installation of the left front axle shaft (1).
Klueber Microlube GNY 202
*BR00.45-Z-1071-06A
14 Press front axle shafts (1) into front axle differential and intermediate shaft (4).
15 Release fixing and insert front axle shafts (1) into steering knuckle.
16 Attach steering knuckle to upper transverse control arm. TORQUE SPECIFICATION Nut, steering knuckle to transverse contro arm *BA33.20-P-1006-01U
17 Tighten screw of front axle shaft (1) on wheel hub. IMPORTANT Replace bolt.
IMPORTANT The aid of a helper is required to tighten the screw.

TORQUE SPECIFICATION Screw/bolt, front axle shaft to wheel hub *BA33.30-P-1001-02H
18 Install left or right front wheel-and-tire assembly.   AR40.10-P-1102A
19 Check front axle differential for leaktightness and proper operation.
WHEEL CONTROL, HUB

Number Designation Model 290
BA33.20-P-1006-01U Nut, steering knuckle to transverse control arm Stage 1 Nm 50
Stage 2 ∠° 45
FRONT AXLE SHAFT

Number Designation Model 290
BA33.30-P-1001-02H Screw/bolt, front axle shaft to wheel hub Stage 1 Nm 160
Stage 2 loosen approx. 90°
Stage 3 Nm 220
Stage 4 ∠° 45
Fig 1: Identifying Impact Extractor (602 589 00 33 00)
G07274420Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Extraction Tool (221 589 04 33 00)
G07300534Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1071-06A Klueber Microlube GNY 202 A 001 989 44 51 10
