(Remove/Install Front Axle Shafts - AR33.30-P-0620MSA)

Model 257 with engine 256 with transmission 725.0

with code M005 (4MATIC)

G13771980Courtesy of MERCEDES-BENZ USA
G13771981Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVING Remove
1 Remove left or right front wheel-and-tire assembly.   AR40.10-P-1102A
2 Remove screw fastening front axle shaft to wheel hub. IMPORTANT The aid of a helper is required to remove the screw.
3 Detach steering knuckle from upper transverse control arm.   AR33.25-P-0400FR
4 Remove drive shaft from steering knuckle.

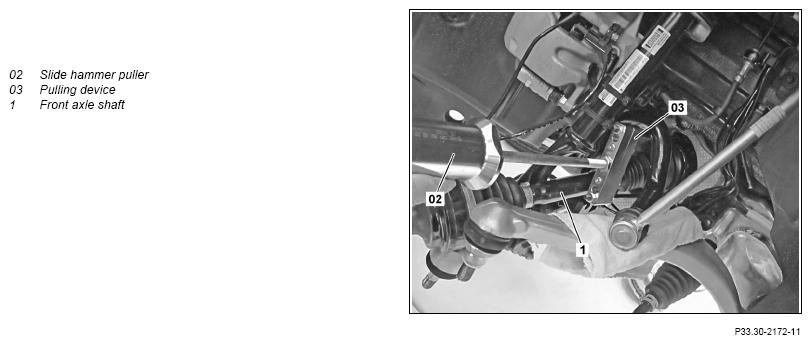

5 Pull front axle shafts (1) out of front axle differential and intermediate shaft (4) using impact extractor (02) and pull-off device (03). NOTES

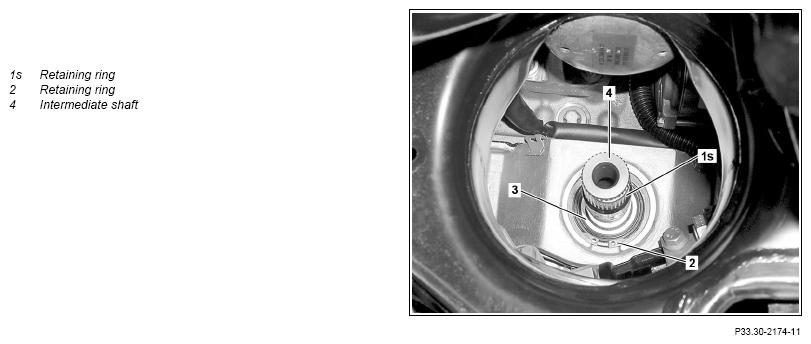

If the left front axle shaft (1) is seized, remove the retaining ring (2) on the intermediate shaft (4) and pull out the left front axle shaft (1) with the intermediate shaft (4). Otherwise the oil pan may be damaged.

NOTES
Ensure scrupulous cleanliness when working on the front axle differential.
Otherwise the front axle differential will be damaged.
SPECIAL TOOL Extraction tool
Fig 2
SPECIAL TOOL Impact extractor Fig 1
6 Fix steering knuckle on upper transverse control arm.
7.1 Remove retaining ring from front axle shaft (1). When removing right front axle shaft (1).
7.2 Remove retaining ring (1s) of intermediate shaft (4). When removing left front axle shaft (1).
8 Remove radial shaft sealing ring. When removing right front axle shaft (1). AR33.30-P-0540MSA
INSTALLING Install
9 Check dust boots of front axle shafts (1). If damage is found,

Replace front axle shaft.

10 Install radial shaft sealing ring. When installing right front axle shaft (1). IMPORTANT Replace radial shaft sealing ring. AR33.30-P-0540MSA
11.1 Install retaining ring (1s) of intermediate shaft (4). When installing left front axle shaft (1).
IMPORTANT Replace retaining ring (1s) of intermediate shaft (4).
IMPORTANT Apply light coating of microgrease to retaining ring (1s).

Klueber Microlube GNY 202 *BR00.45-Z-1071-06A
11.2 Install retaining ring of front axle shaft (1). When installing right front axle shaft (1).
IMPORTANT Replace retaining ring of front axle shaft (1).
IMPORTANT Apply light coating of microgrease to retaining ring.

Klueber Microlube GNY 202 *BR00.45-Z-1071-06A
12 Install intermediate shaft (4). If necessary. AR33.30-P-0625MSA
13 Lightly grease gearing of intermediate shaft (4). Before installation of the left front axle shaft (1).
Klueber Microlube GNY 202
*BR00.45-Z-1071-06A
14 Press front axle shafts (1) into front axle differential and intermediate shaft (4).
15 Release fixing and insert front axle shafts (1) into steering knuckle.
16 Attach steering knuckle to upper transverse control arm. TORQUE SPECIFICATION Nut, steering knuckle to transverse contro arm *BA33.20-P-1006-01U
17 Tighten screw fastening front axle shaft to 1 wheel hub. IMPORTANT Replace bolt.
IMPORTANT The aid of a helper is required to tighten the screw.

TORQUE SPECIFICATION Screw/bolt, front axle shaft to wheel hub *BA33.30-P-1001-02H
18 Install left or right front wheel-and-tire assembly.   AR40.10-P-1102A
19 Check front axle differential for leaktightness and proper operation.
WHEEL CONTROL, HUB

Number Designation Model 257
BA33.20-P-1006-01U Nut, steering knuckle to transverse control arm Stage 1 Nm 50
Stage 2 ∠° 45
FRONT AXLE SHAFT

Number Designation Model 257
BA33.30-P-1001-02H Screw/bolt, front axle shaft to wheel hub Stage 1 Nm 160
Stage 2 loosen approx. 90°
Stage 3 Nm 220
Stage 4 ∠° 45
Fig 1: Identifying Impact Extractor (602 589 00 33 00)
G07274420Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Extraction Tool (221 589 04 33 00)
G07300534Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1071-06A Klueber Microlube GNY 202 A 001 989 44 51 10
