Remove/Install Fan Unit - AR20.40-P-5050OLC
Model 213 with Engine 274.9, 642, 654
MODIFICATION NOTES
| 22.02.2021 | New operation step inserted. | Operation step 7 |
Shown on engine 654
Shown on Model 213.050
Shown on Model 213.016
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min.2 m). | ||

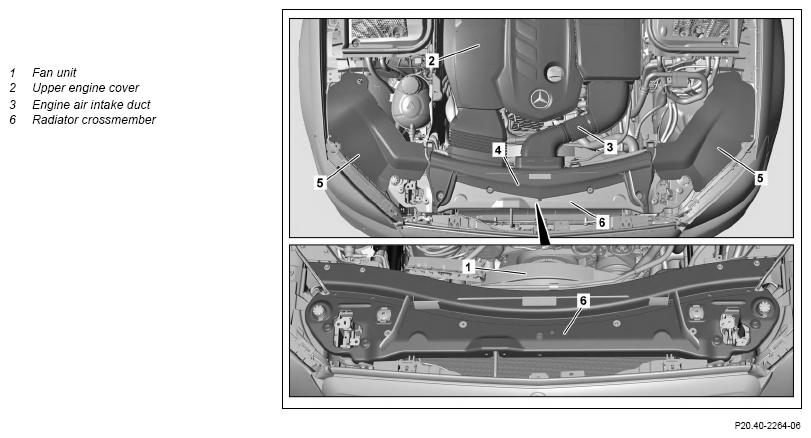

| 2 | Remove upper engine cover (2). | Model 213 with engine 654 | AR01.10-P-2405OLC |
| 3 | Remove engine air intake duct (3). | ||
| 4 | Remove coolant line (9) from fan unit (1) | Model 213.050 with Engine 274.9 | |
| 5 | Remove coolant lines (10) from fan unit (1) | Model 213.011/016/211/216 with engine 654 | |
| 6 | Release and disconnect electrical connector of fan unit (1). | ||

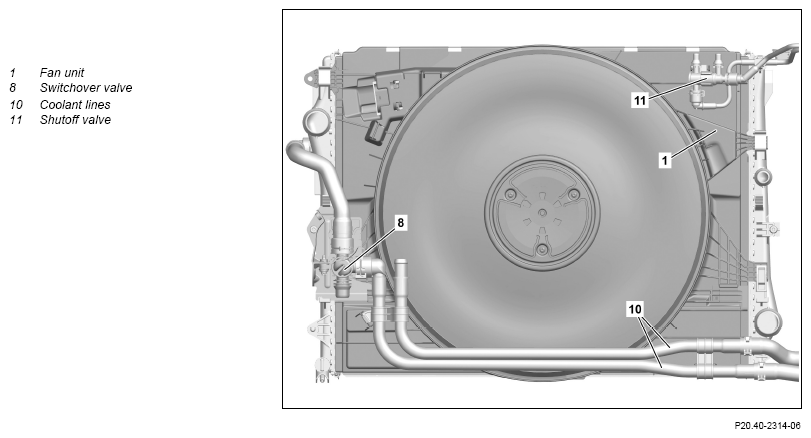

| 7 | Unclip electric line from fan unit (1). | Fig 2 | |
| 8 | Remove radiator crossmember (6). | AR62.30-P-2300LWA | |
| 9 | Remove oil cooler (7) from fan unit (1) and put it to one side with connected lines | Model 213 with Engine 274 with transmission 725.0 Model 213 with engine 642 with transmission 725.0 |
|
| AR27.55-P-1000OLD | |||
| 10 | Remove switchover valve (8) with holder from cooler unit and place to one side with lines connected. | Model 213.011/016/211/216 with engine 654 Model 213.050 with Engine 274.9 | |
| 11 | Remove lower center and front engine compartment lining. | AR61.20-P-1105LWE | |
| 12 | Unclip top cold air guide from fan unit (1). | ||
| 13 | Slowly open cap of coolant expansion reservoir and relieve pressure in engine cooling system | ||
| 14 | Close the coolant expansion reservoir cap | ||
| 15 | Remove shutoff valve (11) with holder from fan unit (1) and place to one side with lines connected. | Model 213.011/016/211/216 with engine 654 | |
| 16 | Remove cooler vent line, catch escaping coolant using a suitable container and close off openings using suitable stop plugs | AR20.20-P-7441-01RQ | |

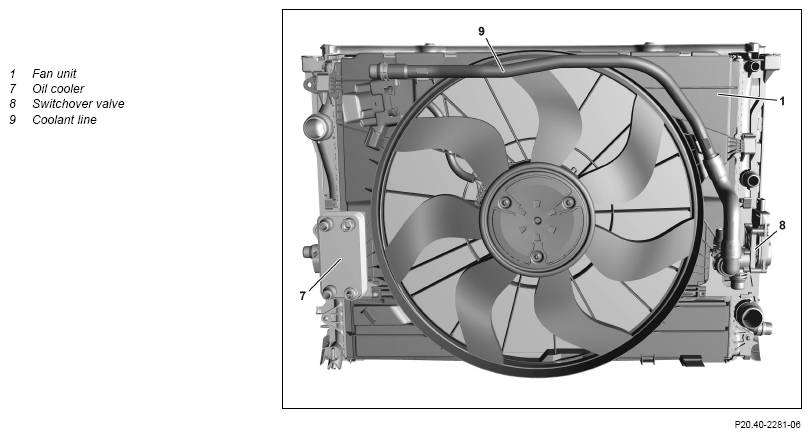

| Fig 3 | |||
| 17 | Remove fan unit (1) from radiator mount and pull out upwards | ||
| 18 | Install in the reverse order. | ||
| Check | |||
| 19 | Check engine cooling system for leak tightness. | AR20.00-P-1011OLC |
