(Remove/Install Engine Cover - AR01.10-P-2405OLC)

Engine 654 in model 213, 238, 257

Shown with code M014 (up-rated engine)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install

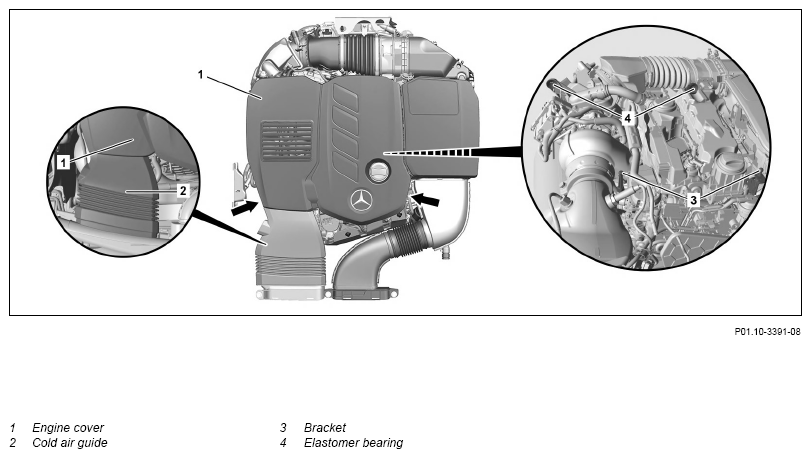

1	Remove cold air duct (2) from cold air-intake manifold.	Engine 654 in model 213, 238, 257 with code M014 (Engine up-rated)
2	Raise engine cover (1) in front area (arrows) and unclip from brackets (3).	: Wet elastomer bearings with lubricant. Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
3	Pull engine cover (1) in direction of cold air- intake manifold, unclip from elastomer bearings (4), and remove.	: Wet elastomer bearing (4) with lubricant. Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
4	Check elastomer bearings of engine cover (1) and elastomer bearings (4) for damage.	If damage is present, ↓ Replace appropriate elastomer bearing.
5	Install in the reverse order.
