Remove/Install Fan Unit - AR20.40-P-5050OLA

Engine 264 in Model 213

Engine 264, 274.9, 642, 654 in Model 238

Shown on Model 238 with Engine 274.9

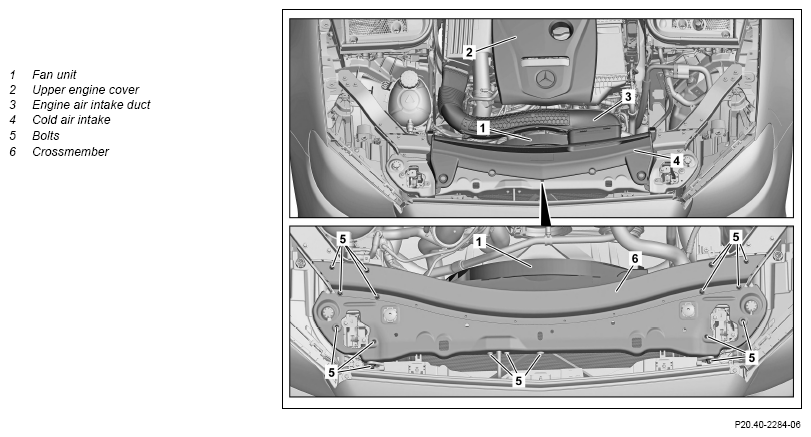

Fig 1: Fan Unit Components Location - Engine 264 In Model 213 (Shown On Model 238 With Engine 274.9)

Courtesy of MERCEDES-BENZ USA

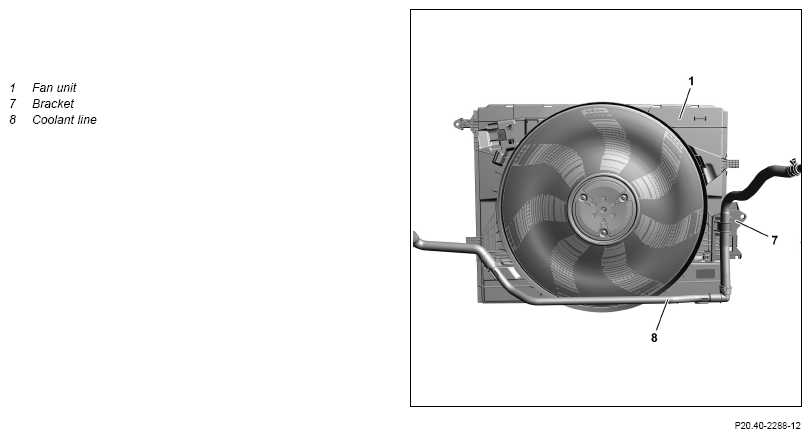

Shown on Model 238 with Engine 264 with codeB01 (48V technology)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on coolant		AH20.00-N-2080-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min.2 m).
2	Remove upper engine cover (2).	Engine 264 in Model 213 Engine 264, 642, 654 in Model 238
		Engine 654 in Model 238	AR01.10-P-2405OLC
		Engine 264 in Model 213, 238	AR01.10-P-2405MRH
3	Remove engine air intake duct (3).
4	Release and disconnect electrical connector from fan unit (1).
5	Unclip bleed line from cold air intake (4).	Engine 264 in Model 213, 238
6	Remove cold air intake (4).
7	Remove screws (5) and remove crossmember (6).	Bolt  , lock striker to cross member/front-module carrier	*BA62.30-P-1008-01H
		M6x1	*BA00.10-P-1002-04A
		M8x1	*BA00.10-P-1004-04A
8	Remove oil cooler from fan unit (1) and place to one side with connected lines.	Engine 274.9, 642 in Model 238 with transmission 725.0	AR27.55-P-1000OLD
9	Remove bracket (7) from fan unit (1).	Engine 264 in Model 213, 238 with code B01 (48V technology)
10	Remove lower center and front engine compartment lining.	Engine 274.9, 642, 654 in Model 238
			AR61.20-P-1105LWE
		Do not install center and lower front engine compartment lining until after leak test.
11	Unclip lower cold air guide on fan unit (1)	Engine 274.9, 642, 654 in Model 238
12	Unclip coolant line (8) from fan unit (1).	Engine 264 in Model 213, 238 with code B01 (48V technology)
13	Unclip top cold air guide from fan unit (1).
14	Slowly open cap of coolant expansion reservoir and relieve pressure in engine cooling system
15	Remove cooler vent line, catch escaping coolant using a suitable container and close off openings using suitable stop plugs		AR20.20-P-7441-01RQ
		Record plug	Fig 2
16	Unclip fan unit (1) from cooler mounts and remove upward.
17	Install in the reverse order.
18	Check coolant level and correct.	Coolant mixing ratio	*BF20.00-P-1001-04A
19	Calibrate Distance Pilot DISTRONIC controller unit.	Engine 264, 274.9, 642, 654 in Model 238 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO))
			AD00.00-P-2000-06LWO
20	Check engine cooling system for leak tightness.		AR20.00-P-1011OLC
21	Install lower center and front engine compartment lining.	Engine 274.9, 642, 654 in Model 238
			AR61.20-P-1105LWE

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
