Overview Of Interior Illumination (IBL) System Components - GF82.20-P-9997FR
Model 257, 290
up to model year 2021

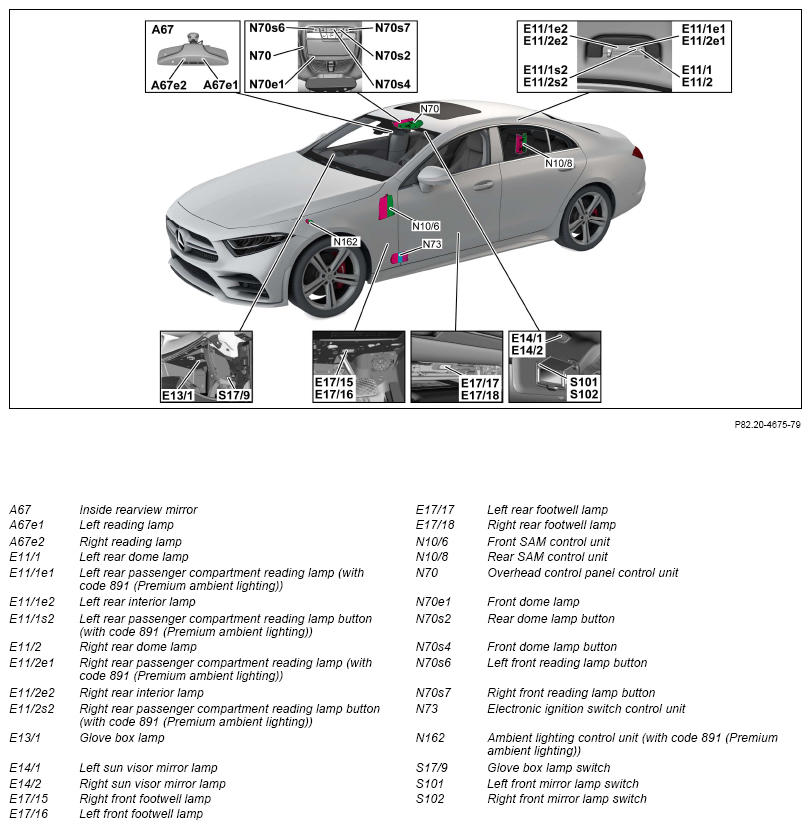

Manual interior lighting control, shown on model 257.3

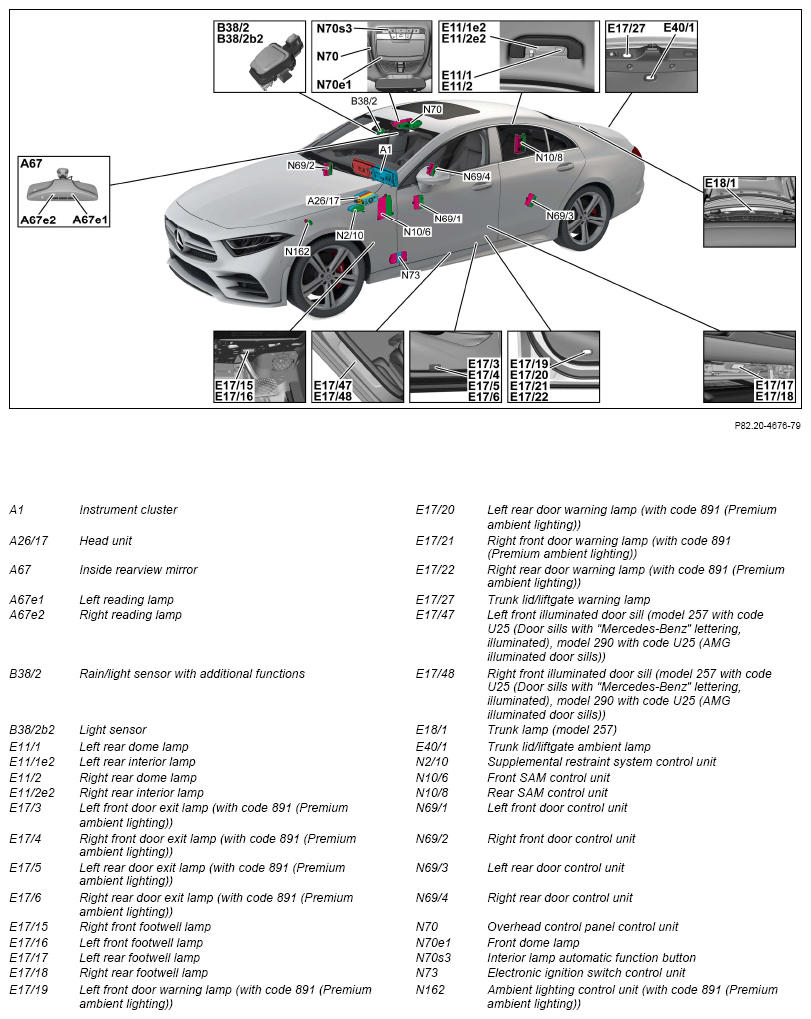

Automatic interior lighting control, shown on model 257.3
The following components in model 290 are not shown:
- Right load compartment lamp (E18/4)
- Left load compartment lamp (E18/5)

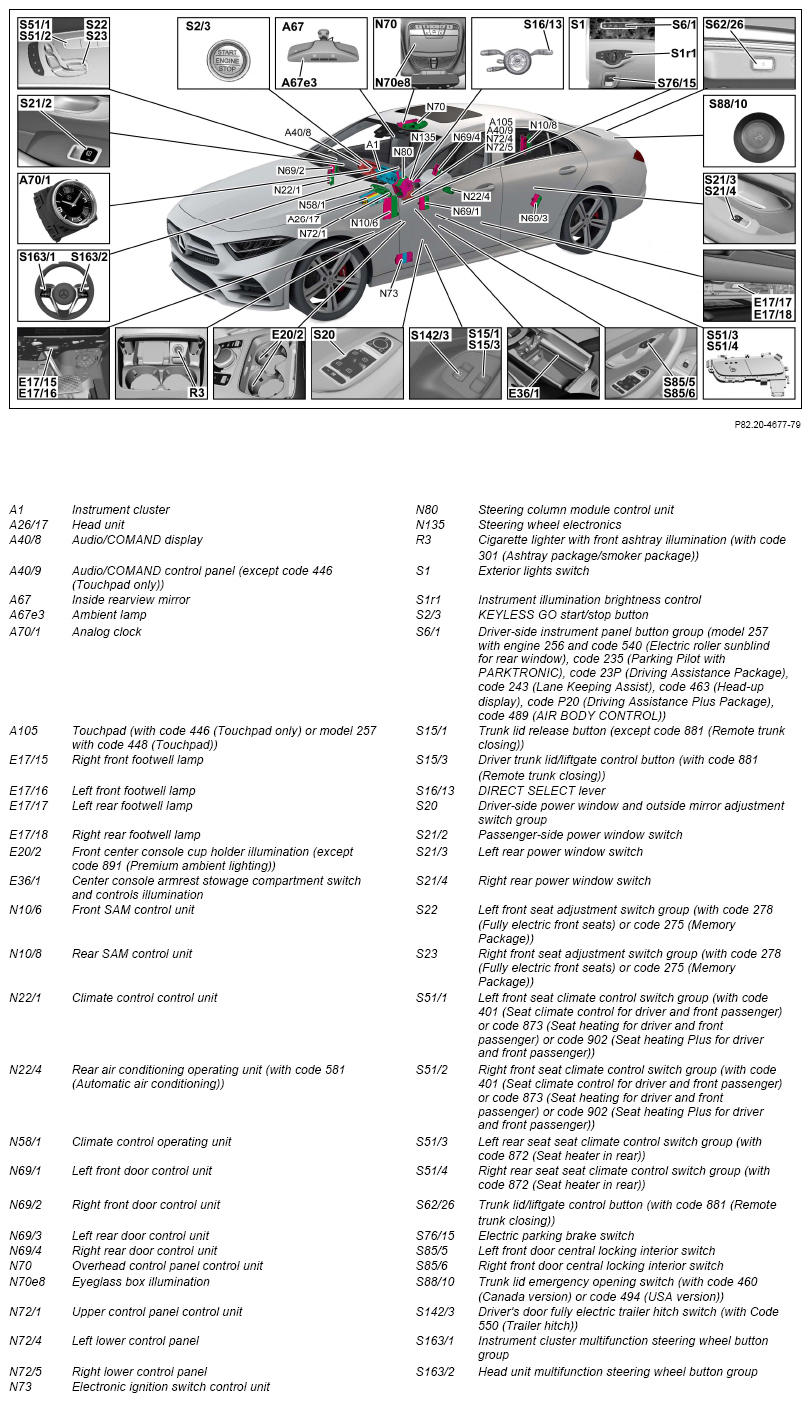

Switch and symbol illumination, shown on model 257.3

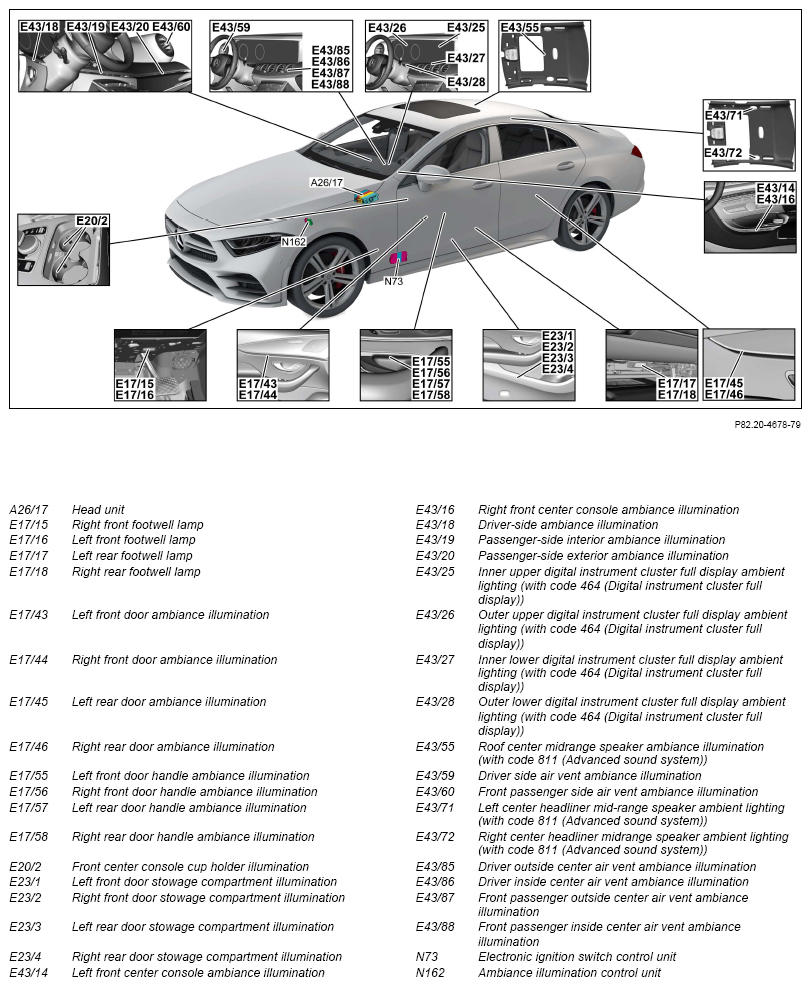

Ambient lighting (with code 891 (Premium ambient lighting)), shown on model 257.3
The following components in model 290 are not shown:
- Touchscreen (A105/3) (with code 224 (Design individual rear seat system))
- Left rear center console ambient lighting (E43/15)
- Right rear center console ambient lighting (E43/17)
- Left rear passenger compartment center console ambient lighting (E43/100) (with code 224 (Design individual rear seat system))
- Right rear passenger compartment center console ambient lighting (E43/102) (with code 224 (Design individual rear seat system))
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Head unit, component description | Model 257, 290 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRA | |
| Model 257, 290 up to model year 2021 with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FR | |
| Component description for Audio/COMAND control panel | Model 257, 290 up to model year 2021 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FR | |
| Touchpad, component description | Model 257, 290 up to model year 2021 with code 446 (Touchpad only) Model 257 up to model year 2021 with code 448 (Touchpad) A105 |
GF54.21-P-4511FR | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005FR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FR | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FR | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250FR | |
| Rear climate control operating unit, component description | Model 257, 290 up to model year 2021 with code 581 (Automatic air conditioning) N22/4 |
GF83.40-P-3050FR | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260FR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FR | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006FR | |
| Ambiance illumination control unit, component description | Model 257, 290 up to model year 2021 with code 891 (Premium ambiance illumination) N162 |
GF82.20-P-5161FR | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998FR |
