Rear Climate Control Operating Unit, Component Description - GF83.40-P-3050FR
Model 257, 290
up to model year 2021
with code 581 (Automatic air conditioning)

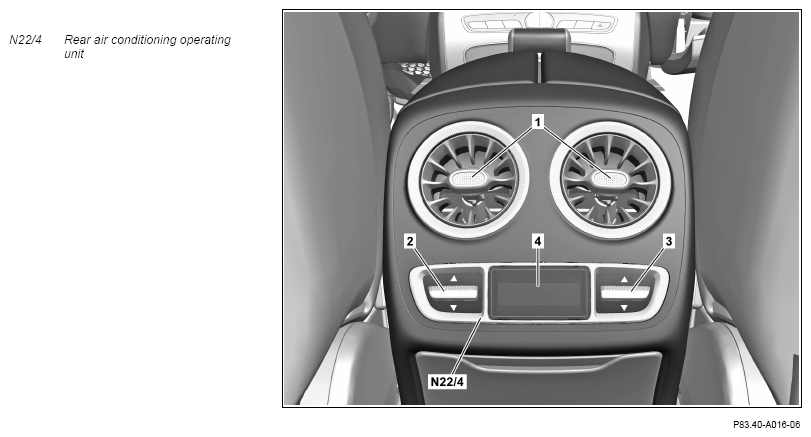

| Control element | Controllable function | Operating feedback |
|---|---|---|
| Air vents (1) | Open/close air outlet | - |
| Left temperature button (2) | Increase/reduce air temperature on left side | Display (4) |
| Right temperature button (3) | Increase/reduce air temperature on right side | Display (4) |
Location
The rear A/C system operating unit is located at the rear in the center console between the front seats.
Task
The climate control for the rear passenger compartment can be individually adjusted for the left and right side using the rear climate control operating unit. The rear climate control operating unit is networked through the air conditioning operating LIN (LIN B8-3) to the climate control control unit (N22/1) and it has the following tasks:
- Reading in of signals
- Transmitting signals
Reading in of signals
The rear climate control operating unit reads in the following signals over the air conditioning operating LIN:
- Circuit status
- Function feedback from control unit for climate control
Transmitting signals
The rear climate control operating unit also sends the following signals over the air conditioning operating LIN to the climate control control unit:
- Request for higher or lower specified temperature in rear
- Diagnostic data
| Wiring diagram for climate control control unit | PE83.40-P-2104-97XBA |
