Front Climate Control Operating Unit, Component Description - GF83.40-P-2260FR
Model 257, 290
up to model year 2021
With code 580 (Air conditioning), shown except code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Configuration of specified temperature at left | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button (N58/1s10) | Configuration of specified temperature at right | Audio/COMAND display (A40/8) |
| Climate control menu button (N58/1s12) | Open air conditioning menu | Audio/COMAND display (A40/8) |
| "SYNC" button (N58/1s15) | Accept settings of driver side for passenger side | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| "A/C" button (N58/1s16) | Cooling with air dehumidification ON/OFF | Integrated LED |
| Front blower button (N58/1s19) | Adjust blower setting, air conditioning system ON/OFF | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Air distribution button (N58/1s22) | Change air distribution | Audio/COMAND display (A40/8) |

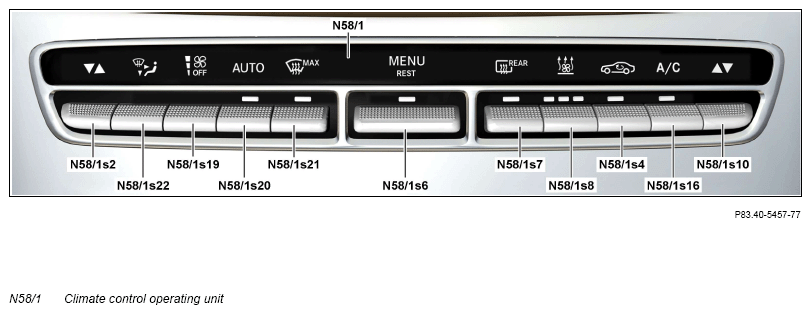

With code 580 (Air conditioning), shown with code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Configuration of specified temperature at left | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OF button (N58/1s6) | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 "Off"), otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Stationary heater button (N58/1s8) | Stationary heater on/off | Integrated LED |
| Right temperature selection button (N58/1s10) | Configuration of specified temperature at right | Audio/COMAND display (A40/8) |
| "A/C" button (N58/1s16) | Cooling with air dehumidification ON/OFF | Integrated LED |
| Front blower button (N58/1s19) | Adjust blower setting, air conditioning system ON/OFF | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Air distribution button (N58/1s22) | Change air distribution | Audio/COMAND display (A40/8) |

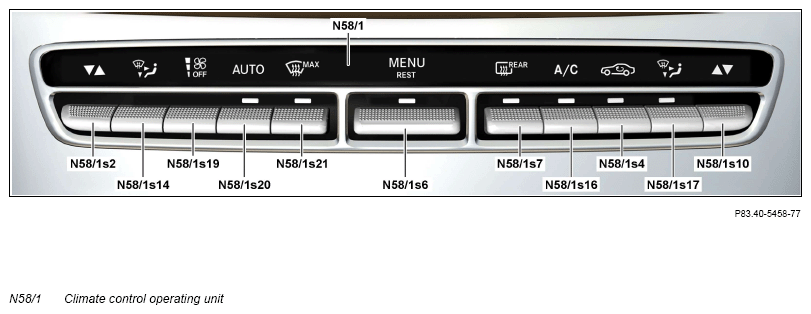

With code 581 (Automatic air conditioning), shown except code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Configuration of specified temperature at left | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OF button (N58/1s6) | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 "Off"), otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Right temperature selection button (N58/1s10) | Configuration of specified temperature at right | Audio/COMAND display (A40/8) |
| Left air distribution button (N58/1s14) | Change left air distribution | Audio/COMAND display (A40/8) |
| "A/C" button (N58/1s16) | Cooling with air dehumidification ON/OFF | Integrated LED |
| Right air distribution button (N58/1s17) | Change right air distribution | Audio/COMAND display (A40/8) |
| Front blower button (N58/1s19) | Adjust blower setting, air conditioning system ON/OFF | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |

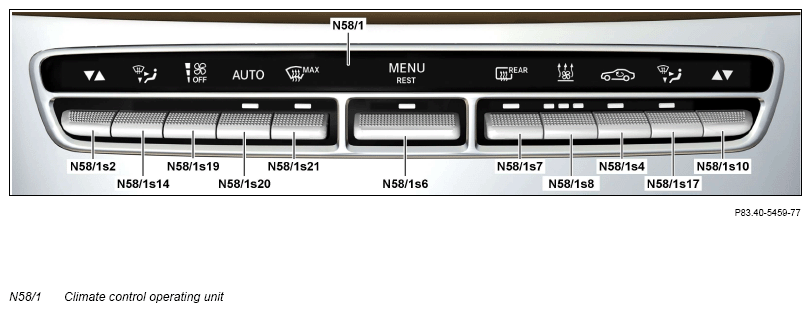

With code 581 (Automatic air conditioning), shown with code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left temperature selection button (N58/1s2) | Configuration of specified temperature at left | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OF button (N58/1s6) | Climate control menu and residual heat utilization On/Off | Integrated LED (only for residual heat with circuit 15 "Off"), otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Stationary heater button (N58/1s8) | Stationary heater on/off | Integrated LED |
| Right temperature selection button (N58/1s10) | Configuration of specified temperature at right | Audio/COMAND display (A40/8) |
| Left air distribution button (N58/1s14) | Change left air distribution | Audio/COMAND display (A40/8) |
| Right air distribution button (N58/1s17) | Change right air distribution | Audio/COMAND display (A40/8) |
| Front blower button (N58/1s19) | Adjust blower setting, air conditioning system ON/OFF | Audio/COMAND display (A40/8) |
| Front AUTO button (N58/1s20) | Automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Defrost mode ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
The air conditioning system can be switched off using the "A/C" button. If this button is not installed on a control panel, the air conditioning system can only be switched off through the menu in the head unit (A26/17).
The "SYNC" function can also be selected through the head unit irrespective of the climate control operating unit (even if the installed operating unit does not have a "SYNC button").
Location
The climate control operating unit is located in the center console.
Task
The climate control operating unit has the following tasks:
- Reception of signals and requests
- Transmission of signals and requests
Reception of signals and requests
The climate control operating unit receives requests for function feedback via the climate control LIN (LIN B8-3) for the following functions:
- Climate control
- Recirculated air mode
- Windshield defrost function
- Rear window heater
- Stationary heater (with CODE 228 (Stationary heater))
- Residual heat utilization (with code 228 (Stationary heater) or code 581 (Automatic air conditioning))
Transmission of signals and requests
The climate control operating unit sends function requests via the climate control LIN that can be selected via the following controls:
- Left temperature selection button
- Air recirculation mode button
- Climate control and residual heat ON/OFF menu button (with code 228 (Stationary heater) or code 581 (Automatic air conditioning))
- Rear window heater button
- Stationary heater button (with CODE 228 (Stationary heater))
- Right temperature selection button
- Climate control menu button (with code 580 (Air conditioning system) except code 228 (Stationary heater))
- Left air distribution button (with CODE 581 (Automatic air conditioning))
- "SYNC" button (with code 580 (Air conditioning system) except code 228 (Stationary heater))
- "A/C" button (with code 580 (Air conditioning) or code 581 (Automatic air conditioning) except code 228 (Stationary heater))
- Right air distribution button (with CODE 581 (Automatic air conditioning))
- Blower button, front
- AUTO button, front
- Defrosting button
- Air distribution button (with code 580 (Air conditioning system))
| Wiring diagram for climate control control unit | PE83.40-P-2104-97XBA |
