Remove/Install Automatic Transmission Fluid Cooler - Ar27.55-D-1000TS

Model 907 with engine 642, 651 with transmission 722.9

Shown with CODE HH9 (Semi-automatically regulated air conditioning, TEMPMATIC)

	Risk of burns and scalding when handling hot fluids and components they come into contact with. Risk of injury  to skin and eyes when handling hot fluids.	Wear protective gloves, protective clothing and safety glasses, if necessary. Pour hot fluids in suitable containers only.	AS00.00-Z-0033-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1.1	Remove condenser fan unit.	Model 907 with engine 642, 651 with transmission 722.9 with code HH4 (THERMOTRONIC automatic climate control) Model 907 with engine 642, 651 with transmission 722.9 with code HH9 (Air conditioner, automatic heater control)	AR83.30-D-0007TS
1.2	Remove radiator grille.	Model 907 with engine 642, 651 with transmission 722.9 except code HH4 (THERMOTRONIC automatic climate control) except code HH9 (Air conditioner, automatic heater control)	AR88.40-D-4001TS
2	Remove screw (1).
3	Unclip oil cooler (2) from holder (3).

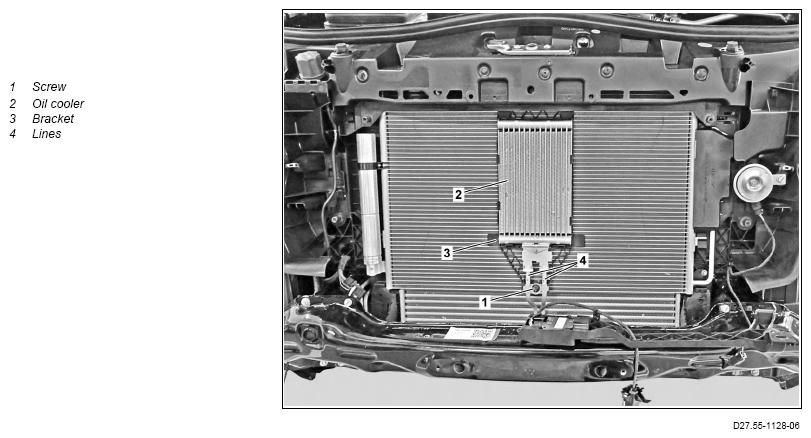

4	Remove oil cooler (2).	To do so, remove lines (4). Collect escaping transmission oil. Seal off lines (4). Commercially available devices/tools  Collecting pan	AR27.10-D-0501-03TSF
		Assembly cleaner	*BR00.45-Z-1028-04A
		Record plug	Fig 1
5	Install in the reverse order
	Check
6	Check oil level in automatic transmission.		AR27.00-D-0270TSR
7	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Check oil cooler (2) and the lines (4) for leak tightness with engine running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. Visual inspection only.	AS00.00-Z-0005-01A

Fig 1: Record Plug (129 589 00 91 00)
