Disconnect/Connect Transmission Oil Line - Ar27.10-D-0501-03TSF
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A |
Model 907 with transmission 722.9, 725.0
Repair materials
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
Detach oil line (1)
- Clean separating point and surrounding area thoroughly.
Ensure scrupulous cleanliness.
Even the smallest dirt particles in the hydraulic components can lead to malfunctions and total failure of the automatic transmission.

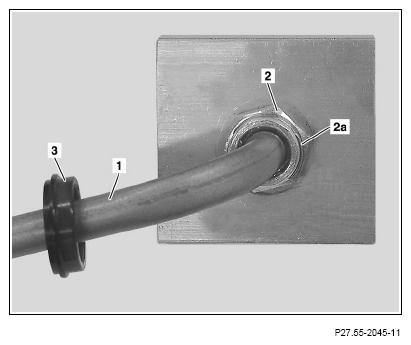

- Release dust cap (3) and push back along oil line (1) until connector (2) is accessible.

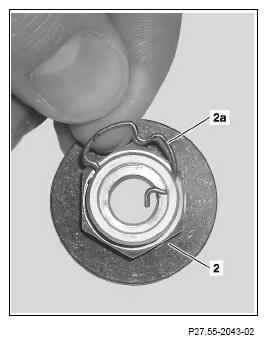

- Position using a suitable tool on one end of safety clip (2a) and detach safety clip (2a) from connector (2).
- Remove oil line (1) from connector (2) and seal connections with suitable
stop plugs.
Collect escaping transmission oil.
Collection bowl
- Pull off dust cap (3) from oil line (1).
Attach oil line (1)

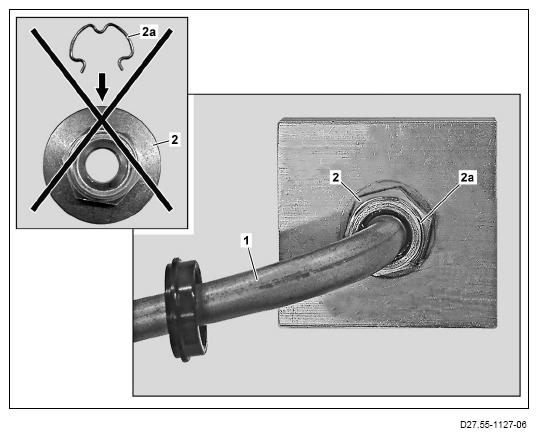

Otherwise, the safety clip (2a) is overstretched and correct sealing of the line connection is no longer guaranteed.
D27.55-1127-06

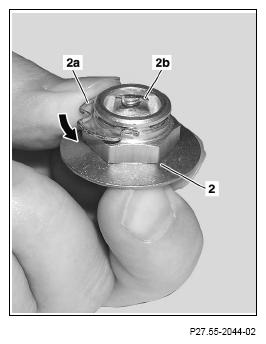

- Insert one end of new safety clip (2a) into a cutout (2b) of connector (2).
- Push securing clamp (2a) in direction of arrow until it fully engages in connector (2).
- Push dust cap (3) onto oil line (1).
- Remove

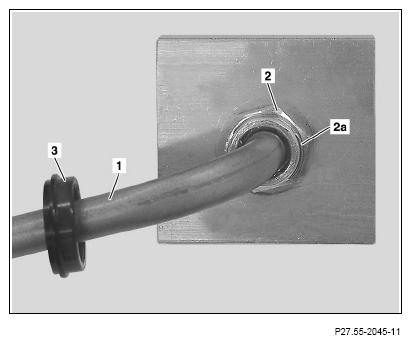

- Introduce oil line (1) straight into the connector (2) until it audibly and noticeable latches.
- Push dust cap (3) onto the connector (2) until it latches and can turn freely.
If the oil line (1) is not fully engaged in the connector (2) or the safety clip (2a) is overstretched, it will not be possible to push the dust cap (3) over the connection. This will result in leaks or soiling.
If oil line (1) is not correctly engaged or safety clip (2a) is overstretched,
↓
Replace safety clip (2a) and engage oil line (1) correctly.
