Removal/Install Automatic Transmission - Ar27.10-D-7031TSC
Transmission 725.0 in type 907
Modification notes
| 15.04.2021 | Remove lower engine compartment panel, added. | Step 2 |
| 15.04.2021 | Remove underbody panels, added. | Step 3 |
| Risk of death by slipping or tipping the vehicle off the lifting platform | Align the vehicle between the lifting platform columns and place the four support plates at the lifting platform support points prescribed by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Danger of injury to skin and eyes from handling hot or glowing objects | Wear protective gloves, protective clothing and, if necessary, protective goggles. | AS00.00-Z-0002-01A | |
| Risk of injury
on skin and eyes from handling gearboxes. Health hazard by swallowing gear oil |
Wear protective gloves, protective clothing and protective goggles. Do not pour gear oil into drinking containers. |
AS00.40-Z-0001-01A | |
| Risk of injury through cuts or scrapes on sharp-edged vehicle parts | Always wear protective gloves when working on or in the area of sharp, unburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on screw connections made using the angle-controlled tightening process | AH00.00-P-0020-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Removing, installing | |||
| 1 | Raise the vehicle. Instructions for lifting and jacking up | AH00.60-N-0100-01TS | |
| 2 | Remove the lower engine compartment trim. | Type 907 with code XM1 (noise control)Gearbox 725.0 in type 907 with code XM1 (noise control) |
AR61.20-D-1105TS |
| 3 | Remove underbody panels. | Gearbox 725.0 in type 907 with code XM1 (noise measures |
AR61.30-D-1001TS |
| 4 | Thoroughly clean the oil pan (34) and its surroundings. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 5 | Place a suitable collecting container under the gear unit. | ||

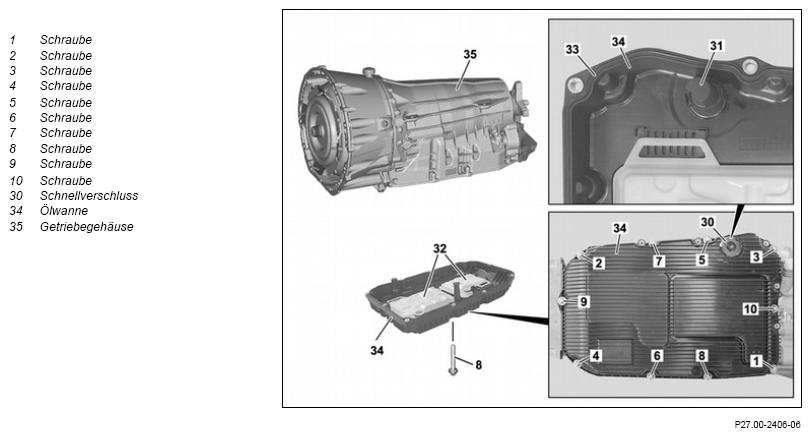

| 6 | Open the quick release fastener (30) with the socket wrench. | Fig 1 | |

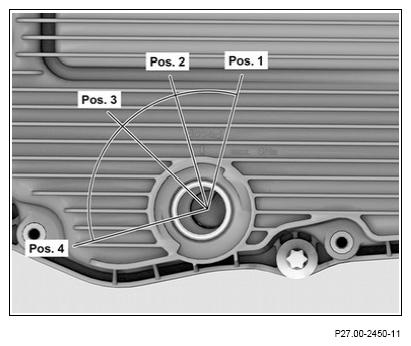

| 7 | Use the socket wrench to turn the overflow pipe to pos. 4 and drain the gear oil. | Fig 2 | |
| 8 | Remove heat shield on gearbox. | AR27.40-D-0700-02TSC | |
| 9 | Unscrew the screws (1 to 10). | *BA27.10-P-1010-04H | |
| 10 | Remove the oil pan (34) from the gearbox housing (35). | ||
| 11 | Clean the sealing surface on the gearbox housing (35). | Sealing compartment must be absolutely free of oil and grease. Otherwise there may be leaks. Assembly cleaner |
*BR00.45-Z-1028-04A |
| 12 | Install in reverse order. | ||
| 13 | Fill the transmission with oil. | It is essential to adhere to the work process and observe the operating material regulations. Otherwise the transmission will be damaged. |
AR27.00-D-0270TSC |
| Check | |||
| Burns, suffocation and Risk of poisoning when working on the exhaust system and related components. Choking hazard and Risk of poisoning by inhaling gaseous and solid components of the exhaust gas. Risk of poisoning through skin contact with solid components of the exhaust gas. | Wear protective clothing and goggles. Use suction. Remove people from the danger area. | AS49.00-Z-0001-01A | |
| Risk of accident by starting up automatically while the engine is running. Risk of injury due to bruises and burns when intervening during the starting process or with the engine running, carry out an engine test run and check the transmission for leaks and functionality. | AS00.00-Z-0005-01A | ||
| 14 | Secure the vehicle against starting by itself. Wear closed, close-fitting work clothing. Do not touch hot or rotating parts. |
| Number | Designation | Transmission 725.0/1 | ||
|---|---|---|---|---|
| BA27.10-P-1010-04H | Screw oil pan to gearbox housing | 1. Step | Nm | 4 |
| 2. Step | ∠° | 90 | ||
REPAIR PRODUCTS
| Number | Description | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
