Fill Automatic Transmission With Transmission Oil - Ar27.00-D-0270TSC

Transmission 725.0 in model 907

MODIFICATION NOTES

13.09.2017

Full amount

BF27.00-P-1001-01I

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Fill with transmission oil
1	Put transmission into neutral position.
2	Secure vehicle to prevent it moving away.
3	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle	Ensure that vehicle is level in longitudinal and transverse direction on vehicle lift.	AH00.60-N-0100-01TS
4	Position suitable oil receptacle under transmission.

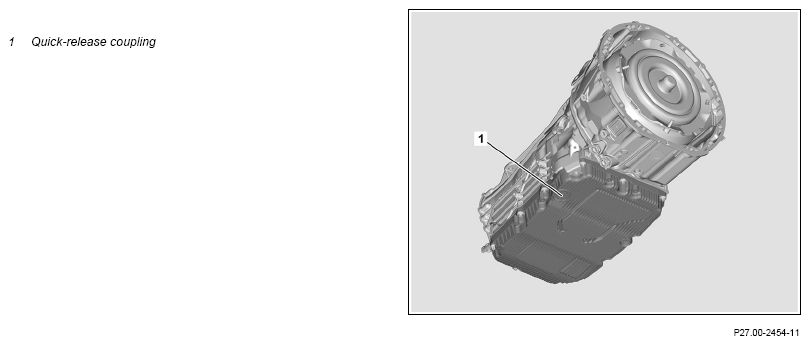

5	Remove quick-release fastener (1).	Socket wrench	Fig 1
6	Attach adapter and connect oil dispenser. 000 588 06 82 00 Oil dispenser	Adjust air pressure at oil dispenser to 2 bar at the highest before filling transmission. Otherwise the oil pan may be damaged.	WS18.00-P-0026B
		Adapter	Fig 2
7	Automatic transmission fluids (ATF) (specification 236.17)	If transmission oil was drained off, pour in the amount drained off + approx. 0.5 l of transmission oil. If no transmission oil was drained off, pump approx. 0.5 l of transmission oil into transmission.	BB00.40-P-0236-17A
		Filling capacity	*BF27.00-P-1001-01I
8	Disconnect adapter and oil dispenser and screw in quick-release fastener (1). 000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
		Socket wrench	Fig 1
		Adapter	Fig 2
9.1	Start test routine, check transmission oil level and correct if necessary.	Check with ultrasound unit.	AR27.00-D-0270-02TSC
	000 588 09 19 00 Oil level sensor		WS27.00-P-0188B
	000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
	Automatic transmission fluids (ATF) (specification 236.17)		BB00.40-P-0236-17A
		MB Plastilube brake paste (brownish)	*BR00.45-Z-1084-06A
		Socket wrench	Fig 1
		Socket wrench	Fig 3
		Adapter	Fig 2
9.2	Start test routine, check transmission oil level and correct if necessary.	Check without ultrasound unit.	AR27.00-D-0270-03TSC
	Automatic transmission fluids (ATF) (specification 236.17)		BB00.40-P-0236-17A
		Socket wrench	Fig 3
		Socket wrench	Fig 1
10	Lower vehicle.

Automatic transmission

Number	Designation		Transmission 725.0 (except 725.007/017/037/04 7)
BF27.00-P-1001-01I	Filling capacity	with complete refill Liter	-10
		Specifications for Operating Fluids, sheet	BB00.40-P-0236-17A

Fig 1: Socket Wrench (724 589 01 09 00)

Fig 2: Adapter (725 589 00 90 00)

Fig 3: Socket Wrench (725 589 00 09 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1084-06A	MB Plastilube brake paste (brownish)	A 002 989 37 51
