Remove/Install Heat Shield On Transmission - Ar27.40-D-0700-02TSC

Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.

AS00.00-Z-0017-01A

Transmission 725.0 in model 907

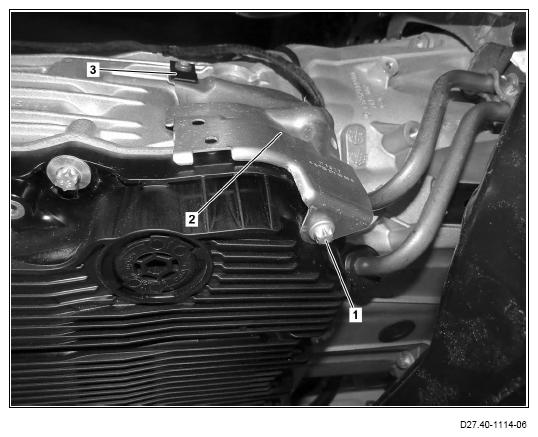

1. Unscrew screw (1) and remov heat shield (2) downward.

   : Push the heat shield (2) under the leaf spring (3).

2. Remove screw from leaf spring (3) and take off leaf spring (3)

   When replacing the transmission.

3. Install in the reverse order.
