Automatic Transmission Fluid & Oil Filter Change - AP27.00-D-2702TS

Transmission 722.9 in model 907

Modification notes

08.11.2018

Automatic transmission fluid ATF

Transmission 722.9

BF27.00-N-1001-01A

	Remove
1	Remove auxiliary oil pump.	With CODE MJ8 (ECO start/stop function)	AR27.57-D-0652TSR
2	Drain transmission oil from torque converter.		AR27.20-D-0200-03TS
		Drain screw to torque converter	*BA27.20-N-1001-01F
		Counterholder	Fig 2
		Counterholder	Fig 3
		Socket wrench bit	Fig 1

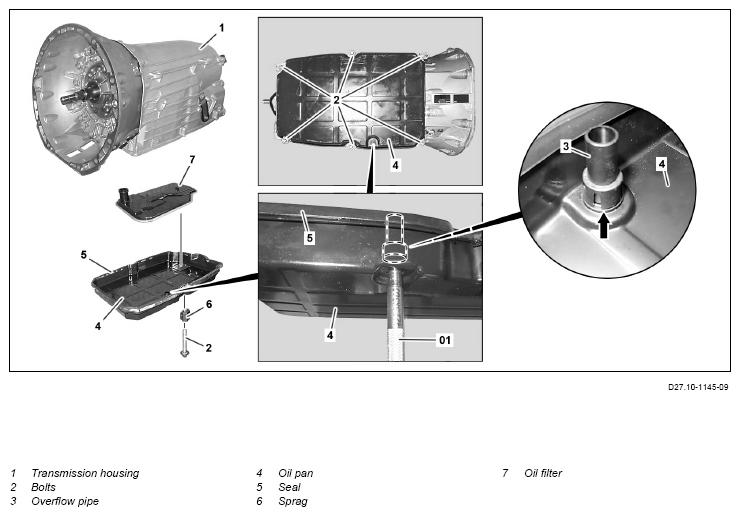

3	Remove oil pan (4).		AR27.10-D-7031TSR
4	Remove oil filter (7).
	Install
5	Install new oil filter (7).
6	Install oil pan (4).		AR27.10-D-7031TSR
		With CODE MJ8 (ECO start/stop function) Fill automatic transmission only after installation of auxiliary oil pump.
7	Install auxiliary oil pump.	With CODE MJ8 (ECO start/stop function)	AR27.57-D-0652TSR
		Automatic transmission fluid ATF	*BF27.00-N-1001-01A
8	Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB).

TORQUE CONVERTER

Number	Designation			Transmission 722.9
BA27.20-N-1001-01F	Drain screw to torque converter	M8	Nm	10
		M10	Nm	15

AUTOMATIC TRANSMISSION

Number	Designation				Transmission 722.9
BF27.00-N-1001-01A	Automatic transmission fluid ATF	Filling capacity - complete refill		Liter	10,0
		Filling capacity - oil change		Liter	9,0
		Filling capacity, transmission oil change	with torque converter	Liter	9,0
		Filling capacity, transmission oil change	without torque converter	Liter	5,5
			Sheet		BB00.40-P-0236-15A
			Sheet		-
			Sheet		-
			Sheet		-
			Sheet		-

Fig 1: Socket Wrench Bit (001 589 65 09 00)

Fig 2: Counterholder (651 589 00 40 00)

Fig 3: Counterholder (651 589 08 40 00)
