Drain Gear Oil From Torque Converter - Ar27.20-D-0200-03TS

Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil

Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.

AS00.40-Z-0001-01A

Model 907 with transmission 722.9

TORQUE CONVERTER

Fig 1: Socket Wrench Bit (001 589 65 09 00)

Fig 2: Counterholder (651 589 00 40 00)

Fig 3: Counterholder (651 589 08 40 00)

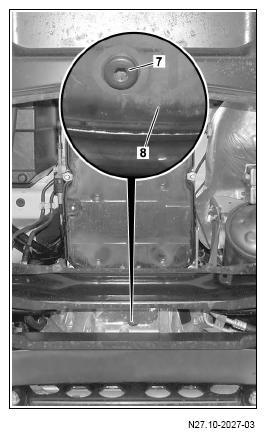

1. Crank engine at crankshaft until drain screw (7) on torque converter (8) is accessible through opening in transmission.

   Model 907 with transmission 722.9 with code H08 (Roof-mounted air conditioning system, reinforced) Use counterholder 651 589 00 40 00 to crank the engine.

   Model 907 with transmission 722.9 except code H08 (Roof-mounted air conditioning system, reinforced) Use counterholder 651 589 08 40 00 to crank the engine.

2. Remove drain screw (7) and drain transmission oil from torque converter (8).

   Commercially available devices/tools

   Collecting pan

3. Screw in drain screw (7)

   Replace seal.

   N27.10-2027-03
