Check Poly-V Belt For Wear And Damage - Ar13.22-D-1351TSR
Engine 642 in model 907
Engine 651 in model 907

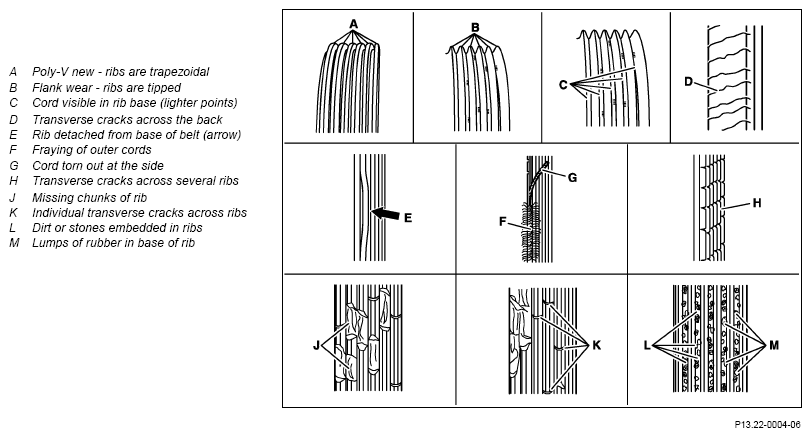

Damage profiles
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Check | |||
| 1 | Check condition of the poly-V-belt in the visible area. | If there is a problem, ↓ replace poly-V belt. |
|
| Engine 642 in model 907 | AR13.22-D-1202TSV | ||
| Engine 642 in model 907 | AR13.22-D-1302TSV | ||
| Engine 651 in model 907 | AR13.22-D-1202TSR |
