Remove/Install Fan Poly-V Belt - Ar13.22-D-1302TSV
Engine 642 in model 907
| Remove | |||
| 1 | Remove fan from hub (4) and place in fan shroud | AR20.40-D-6800TSV | |
| 2 | Remove screw/bolts (2) | ||

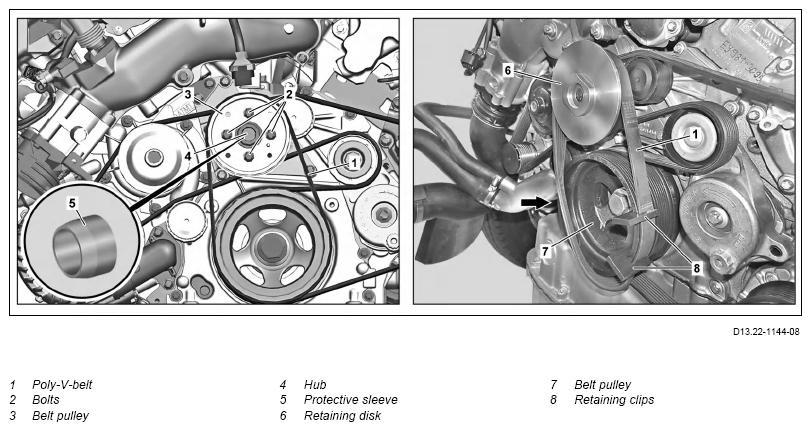

| 3 | Screw on protective sleeve (5) to thread of hub (4) in counterclockwise manner | Fig 1 | |
| 4 | Remove the poly-V belt (1) | ||
| 5 | Unscrew protective sleeve (5) | Fig 1 | |
| Check | |||
| 6 | Check poly-V belt (1) for wear and damage | If wear or damage are present, ↓ Replace poly-V-belt (1). |
AR13.22-D-1351TSR |
| Install | |||
| 7 | Install belt pulley (3) with screws (2) onto hub (4) | ||
| 8 | Screw retaining disk (6) onto thread of hub (4) in counterclockwise manner | Fig 2 | |
| 9 | Mount poly-V-belt (1) on belt pulley (3) and attach on belt pulley (7) as shown | ||
| 10 | Secure poly-V-belt (1) using retaining clips (8) on left side of belt pulley (7) when viewed in direction of travel | Fig 2 | |
| 11 | Install poly-V belt (1) | wsm://04_ 201800_59 |
|
If necessary, ↓ Turn belt pulley (7) further in direction of engine rotation and check seat of poly-V-belt (1). |
Fig 2 | ||
| 12 | Unscrew retaining disk (6) | Fig 2 | |
| 13 | Tighten screw/bolts (2) | *BA13.20-N-1001-01TSV | |
| 14 | Install fan | AR20.40-D-6800TSV | |
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform an engine test run and check poly-V belts (1) for correct movement |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA13.20-N-1001-01TSV | Screw, belt pulley to mechanical fan motor hub | Nm | 10 |
