Install, Remove Exhaust Gas RECIRCULATION - Ar14.20-D-1050TSV

Engine 642 in model 907

Shown with code KL5 (Fuel filter with water separator)

Shown with code KL5 (Fuel filter with water separator)

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove ground line of battery.		AR54.10-D-0029TS
2	Drain off coolant.		AR20.00-D-1142TSR
3	Unscrew screws (1) or exhaust gas recirculation line.	Replace seal.
		Bolt, exhaust gas recirculation line to exhaust gas recirculation bypass flap	*BA14.20-N-1005-01TSV
		Set of flexible head wrenches	Fig 2
4	Lower vehicle.
5	Remove the coolant expansion reservoir.		AR20.30-D-4949TS
6	Remove exhaust gas recirculation line at front		AR14.20-D-1063TSV

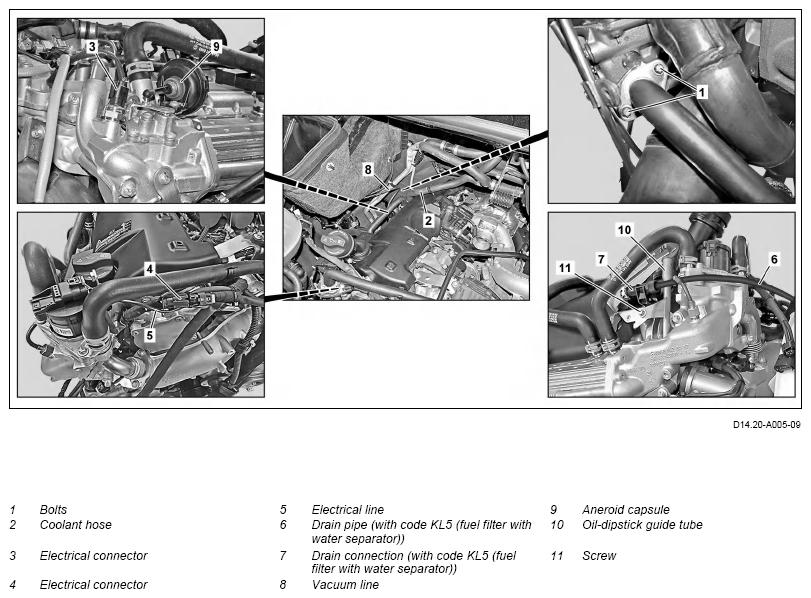

7	Remove coolant hose (2) from bypass flap of the exhaust gas recirculation (21).	Collect coolant which flows out. Commercially available devices/tools  Collecting pan Check clamps.
		Hose clamp pliers Depending on the findings, ↓ replace the affected clamp.	Fig 1
8	Disconnect electrical connector (3).
9	Disconnect electrical connector (4).
10	Expose electric line (5).
11	Remove drain line (6) from drain connection (7) and remove it from working area.	Engine 642 in model 907 with code KL5 (Fuel filter with water separator)
12	Remove vacuum line (8) from diaphragm capsule (9).
13	Remove oil-dipstick guide tube (10) and press it to one side.	To do so, remove screw/bolt (11). M6	*BA00.10-N-1002-01A
14	Remove bracket (12).	To do so, remove screw/bolt (13). Screw/bolt, bracket to cylinder head cover	*BA01.20-N-1004-01O
15	Remove pressure lines (14) from bracket (15).	To do this, remove screw (16). M6	*BA00.10-N-1002-01A
16	Remove bracket (15).	M6	*BA00.10-N-1002-01A

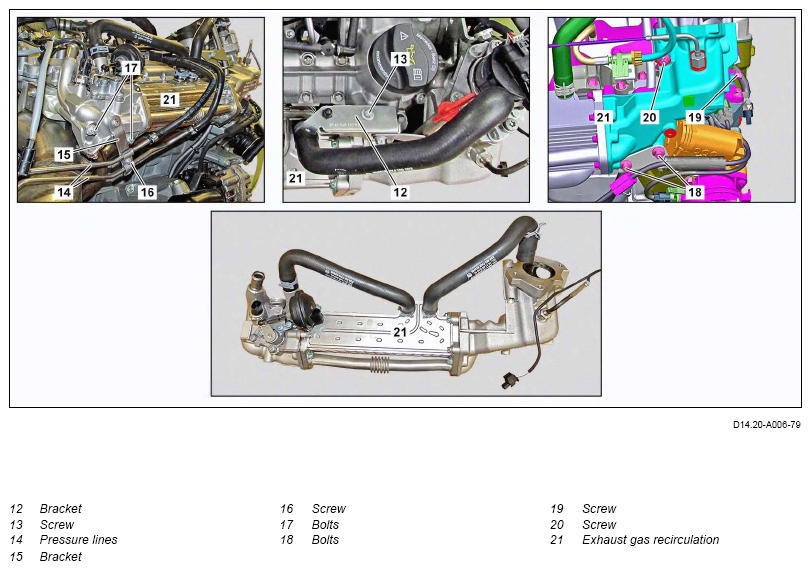

17	Remove screws (17).	Bolt, exhaust gas recirculation bypass flap to bracket	*BA14.20-N-1011-01TSV
		Set of flexible head wrenches	Fig 2
18	Remove screws (18).	Bolt, housing of exhaust gas recirculation valve to holder	*BA14.20-N-1010-01TSV
		Set of flexible head wrenches	Fig 2
19	Remove screw (19).	The screw (19) cannot be removed.
		Bolt, housing of exhaust gas recirculation valve to holder	*BA14.20-N-1010-01TSV
		Set of flexible head wrenches	Fig 2
20	Unscrew the screw (20) and remove the exhaust gas recirculation (21) upwards.	Before placing the EGR (21), insert the screw (19) into the bores on the flange of the EGR (21).
		Bolt, housing of exhaust gas recirculation valve to holder	*BA14.20-N-1010-01TSV
		Set of flexible head wrenches	Fig 2
	Clean
21	Clean the sealing surfaces of the EGR (21).	Assembly cleaner	*BR00.45-Z-1028-04A
22	Install in the reverse order.
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
23	Check for leaktightness when engine is running.	Visual inspection only.
