Drain/Pour In Coolant - Ar20.00-D-1142TSR

Engine 642 in model 907

Engine 651 in model 907

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
	Notes on coolant level		AH20.00-P-1142-01CW
	Drain off
1	Remove cap of the coolant expansion reservoir.	Turn cap of coolant expansion reservoir counterclockwise by a half revolution, release overpressure, then unscrew cap.
2	Raise vehicle.		AR00.60-D-1000-04TS
2	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
3	Remove bottom engine compartment lining.	Model 907 with code XM1 (Noise abatement measures)	AR61.20-D-1105TS

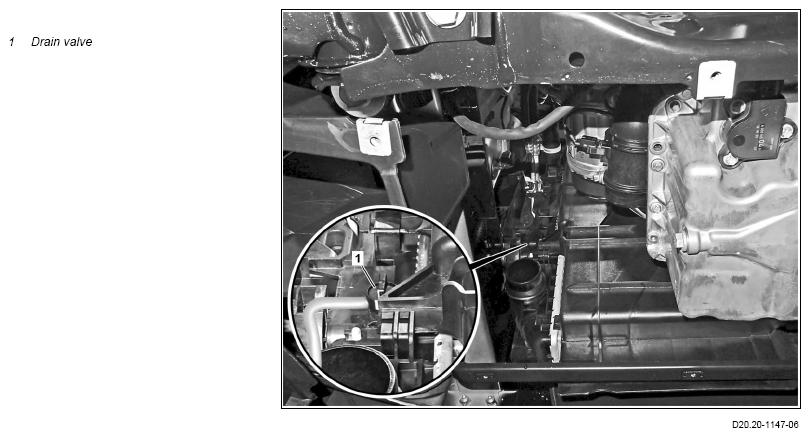

4	Attach drain hose at drain valve (1).	Cooler vacuum filling device	Fig 2
5	Open drain valve (1) and drain off coolant.
6	Close drain valve (1).
7	Remove drain hose.	Cooler vacuum filling device	Fig 2
	Pour in
8	Fill in coolant.		AR20.00-D-1142-03TSR
		Model 907 van, model 907 bus Coolant	*BF20.00-N-1001-01TS
		Test cap	Fig 1
		Cooler vacuum filling device	Fig 2
9	Install lower engine compartment lining.	Model 907 with code XM1 (Noise abatement measures)	AR61.20-D-1105TS
10	Install cap of coolant expansion reservoir.

ENGINE COOLING

Number	Designation			Engine 642 in model 907 except code H12 (Auxiliary hot-water heater) except code H13 (Additional heat exchanger) except code HZ9 (Heater booster) Transporter	Engine 642 in model 907 except code H12 (Auxiliary hot-water heater) except code H13 (Additional heat exchanger) except code HZ9 (Heater booster) Bus
BF20.00-N-1001-01TS	Coolant	Total filling capacity	Liter	≈ 11,6	≈ 11,6
		Anti-corrosion protection/antifreeze down to -37 °C	Liter	≈ 5,8	≈ 5,8
		Anti-corrosion protection/antifreeze down to -45 °C	Liter	≈ 6,4	≈ 6,4
		Sheet		BB00.40-P-0310-01A	BB00.40-P-0310-01A
		Sheet		BB00.40-P-0326-05A	BB00.40-P-0326-05A
		Sheet		BB00.40-P-0326-06A	-

ENGINE COOLING

Number	Designation			Engine 642 in model 907 with code H12 (Auxiliary water heater) or with code H13 (Real additional heat exchanger) or with code HZ9 (Heater booster) van	Engine 642 in model 907 with code H12 (Auxiliary water heater) or with code H13 (Rear additional heat exchanger) or with code HZ9 (Heater booster) bus
BF20.00-N-1001-01TS	Coolant	Total filling capacity	Liter	≈ 14,4	≈ 14,4
		Anti-corrosion protection/antifreeze down to -37 °C	Liter	≈ 7,2	≈ 7,2
		Anti-corrosion protection/antifreeze down to -45 °C	Liter	≈ 7,9	≈ 7,9
		Sheet		BB00.40-P-0310-01A	BB00.40-P-0310-01A
		Sheet		BB00.40-P-0326-05A	BB00.40-P-0326-05A
		Sheet		BB00.40-P-0326-06A	-

ENGINE COOLING

Number	Designation			Engine 651 in model 907 except code H12 (Auxiliary hot-water heater) except code H13 (Additional heat exchanger) except code HZ9 (Heater booster) Transporter	Engine 651 in model 907 except code H12 (Auxiliary hot-water heater) except code H13 (Additional heat exchanger) except code HZ9 (Heater booster) Bus
BF20.00-N-1001-01TS	Coolant	Total filling capacity	Liter	≈ 9,8	≈- 9,8
		Anti-corrosion protection/antifreeze down to -37 °C	Liter	≈ 4,9	≈- 4,9
		Anti-corrosion protection/antifreeze down to -45 °C	Liter	≈ 5,4	≈ 5,4
		Sheet		BB00.40-P-0310-01A	BB00.40-P-0310-01A
		Sheet		BB00.40-P-0326-05A	BB00.40-P-0326-05A
		Sheet		BB00.40-P-0326-06A	-

ENGINE COOLING

Number	Designation			Engine 651 in model 907 with code H12 (Auxiliary water heater) or with code H13 (Rear additional heat exchanger) or with code HZ9 (Heater booster) van	Engine 651 in model 907 with code H12 (Auxiliary water heater) or with code H13 (Rear additional heat exchanger) or with code HZ9 (Heater booster) bus
BF20.00-N-1001-01TS	Coolant	Total filling capacity	Liter	≈ 12,2	≈ 12,2
		Anti-corrosion protection/antifreeze down to -37 °C	Liter	≈ 6,1	≈ 6,1
		Anti-corrosion protection/antifreeze down to -45 °C	Liter	≈ 6,7	≈ 6,7
		Sheet		BB00.40-P-0310-01A	BB00.40-P-0310-01A
		Sheet		BB00.40-P-0326-05A	BB00.40-P-0326-05A
		Sheet		BB00.40-P-0326-06A	-

Fig 1: Test Cap (210 589 00 91 00)

Fig 2: Cooler Vacuum Filling Device (285 589 00 21 00)
