Remove/Install 12 V Socket - Ar54.10-D-1009TS

Model 907

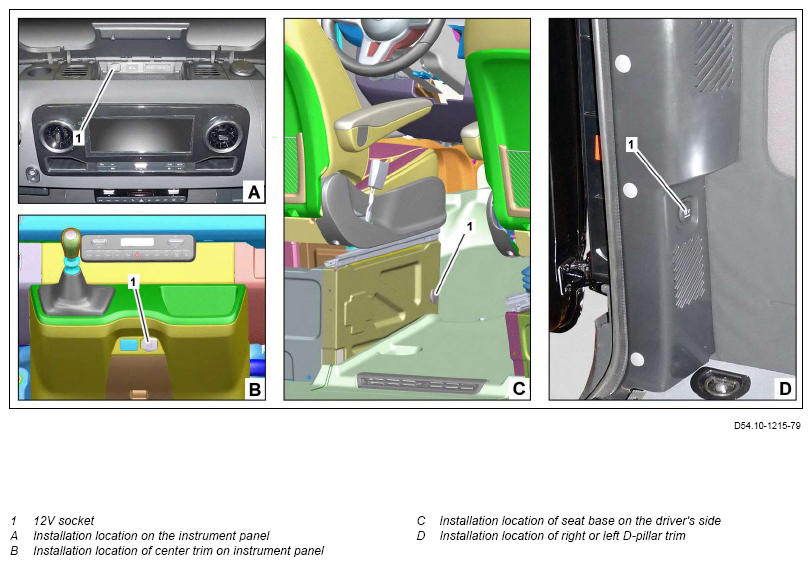

Shown on left D-pillar

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2.1	Remove driver seat.	Model 907 with code SB3 (Suspension seat, comfort version, driver's seat) Model 907 with code SR8 (Swivel base for driver' seat) For the removal of the 12 V socket (1) in the seat base on the driver's side.	AR91.10-D-1000TS
2.2	Set driver's seat in the rearmost and topmost position.	Model 907 except code SB3 (Suspension seat, comfort version, driver's seat) except code SR8 (Swivel base for driver' seat For the removal of the 12 V socket (1) in the seat base on the driver's side.
2.3	Release stowage tray on the instrument panel and remove until the electrical connector of the 12 V socket (1) is accessible.	Model 907 with code ES5 (Charging package, dashboard) except code FJ1 (Hinged lid for stowage compartment) For the removal of the 12 V socket (1) in the stowage tray on the instrument panel.	AR68.10-D-0003TS
2.4	Release lockable center stowage compartment on the instrument panel and remove until the electrical connector of the 12 V socket (1) is accessible.	Model 907 with code ES5 (Charging package, dashboard) with code FJ1 (Hinged lid for stowage compartment) For the removal of the 12 V socket (1) in the lockable center stowage compartment on the instrument panel.	AR68.10-D-1518TS
2.5	Loosen left or right D-pillar trim and remove until the electrical connector of the 12 V socket (1) is accessible.	Model 907.6/7 with code V36 (Panelling under roof) For the removal of the 12 V socket (1) in the left or right D-pillar trim.	AR68.30-D-4497TSR
2.6	Remove cover (3).	For the removal of the 12 V socket (1) in the D-pillar. Clip remover	Fig 1
2.7	Remove lower center stowage compartment from instrument panel.	For the removal of the 12 V socket (1) in the center trim at the instrument panel.	AR68.10-D-1513TS
3	Loosen seat base cover and remove from working area.	For the removal of the 12 V socket (1) in the seat base on the driver's side.
4	Disconnect electrical connector of the 12 V socket (1).
5	Open flap of 12 V socket (1).
6	Release 12 V socket (1) using pliers (2) and pull out from the respective installation location.	The studs of the pliers (2) must engage into the cutouts on the 12 V socket (1) housing (arrow D). Pliers	Fig 2
7	Install in the reverse order.
	Check
8	Perform function test of corresponding 12 V socket (1).

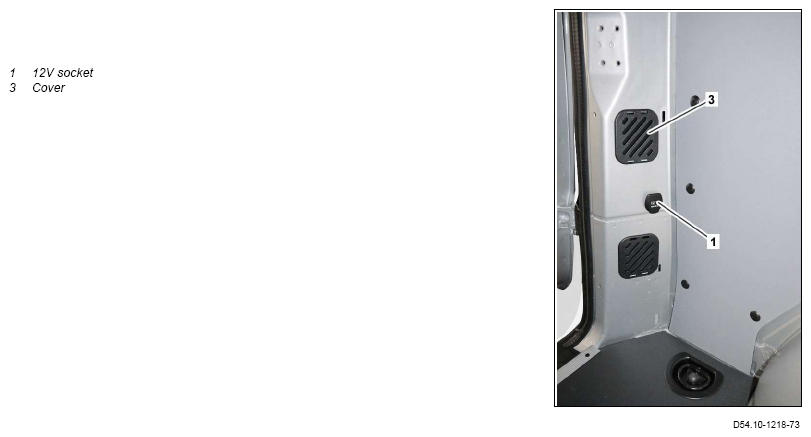

Fig 1: Clip Remover (452 589 01 63 00)

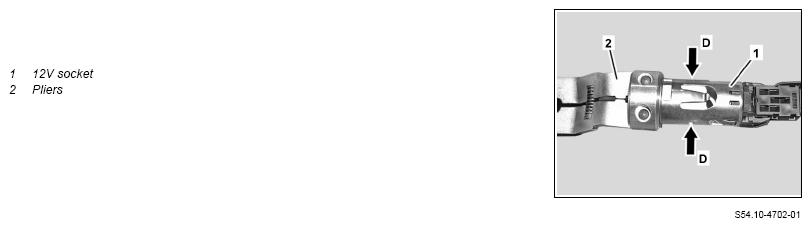

Fig 2: Pliers (169 589 00 37 00)
