Remove/Install Stowage Tray On Instrument Panel - Ar68.10-D-0003TS

Model 907

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Remove ashtray from mount of stowage tray	Model 907 with code V85 (Package SMOKER) The number of ashtrays can vary.
3	Remove side covers of stowage tray (1)		AR68.10-D-0004TS
4	Remove center cover of stowage tray (1)		AR68.10-D-0005TS

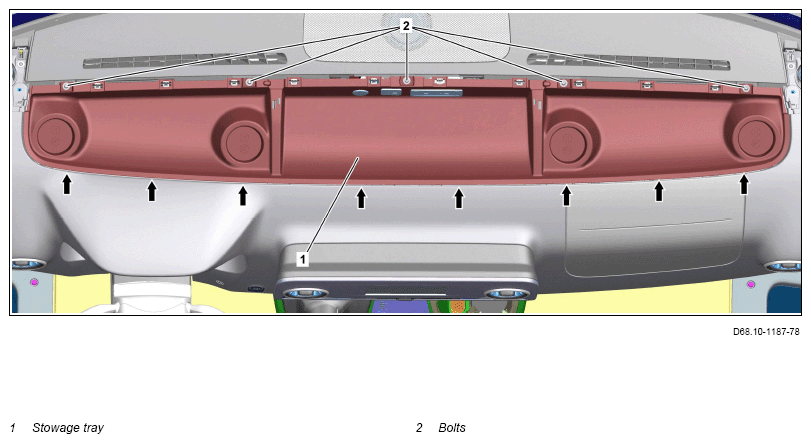

5	Unscrew bolts (2)
6	Unclip stowage tray (1) (arrows) and release from instrument panel	Clip remover	Fig 1
7	Disconnect electrical connectors (3) at rear of stowage tray (1)	If installed. The number of electrical connectors (3) may vary depending on the vehicle equipment involved.
8	Remove stowage tray (1)
9	Install in the reverse order
	Check
10	Perform function test of all components integrated in stowage tray (1)	If installed.

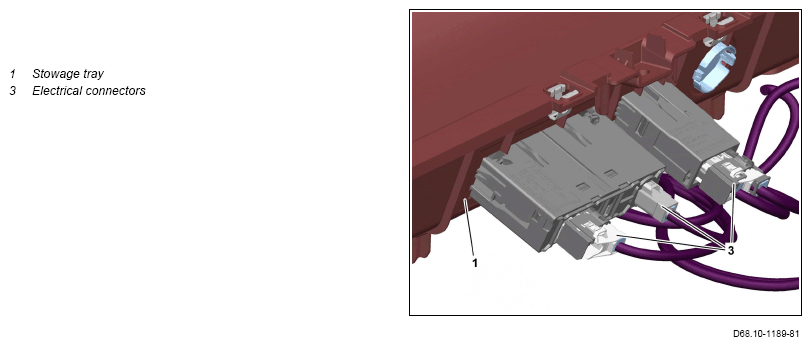

Fig 1: Clip Remover (452 589 01 63 00)
