Remove/Install Center Lockable Stowage Compartment On Instrument Panel - Ar68.10-D-1518TS
Model 907
Shown with CODE HH4 (THERMOTRONIC automatic air conditioning)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2.1 | Remove side stowage trays at instrument panel | Model 907 except code FJ5 (Folding cover for left and right stowage compartments) |
|
| AR68.10-D-0006TS | |||
| 2.2 | Remove side lockable stowage compartments | Model 907 with code FJ5 (Folding cover for left and right stowage compartments) |
|
| AR68.10-D-1516TS | |||
| 3 | Remove center air vents in instrument panel | Model 907 with code HH4 (THERMOTRONIC automatic climate control) Model 907 with code HH9 (Air conditioner, automatic heater control) |
|
| AR83.10-D-4512TS | |||
| 4 | Open stowage compartment (1) | ||
| 5 | Unscrew bolts (2) | ||

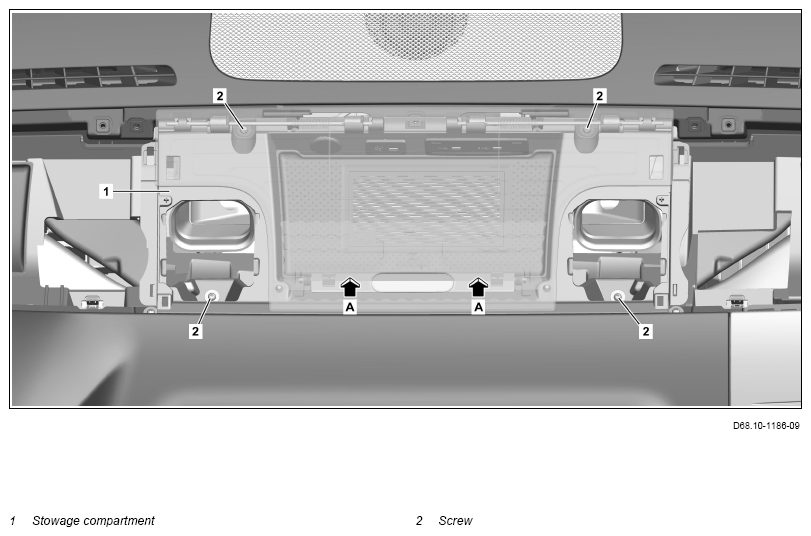

| 6 | Unclip stowage compartment (1) in rear area from instrument panel in direction of arrow (arrows A) | Fig 1 | |

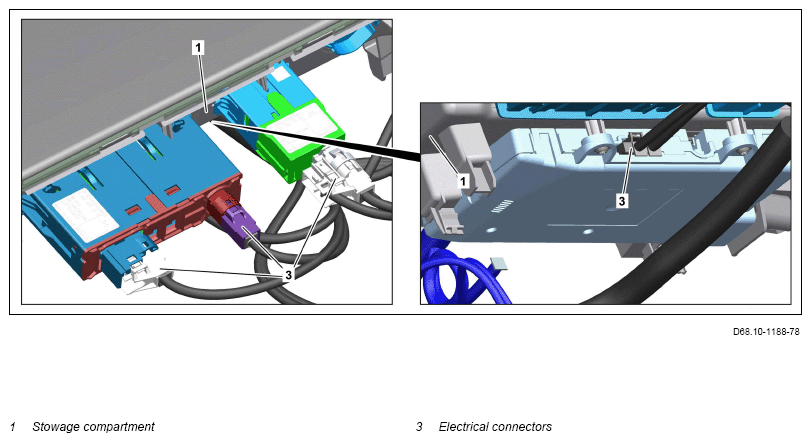

| 7 | Disconnect electrical connectors (3) at rear of stowage compartment | If installed. |
|
| 8 | Remove stowage compartment (1) | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check lid of stowage compartment (1) for correct opening and closing | ||
| 11 | Perform function test of all components integrated in stowage compartment (1) | If installed. |
