Remove/Install Display Trim On Instrument Panel - Ar68.10-D-0601TS
Model 907
Shown with code EJ9 (COMAND Online)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove center air vents | AR83.10-D-4505TS | |

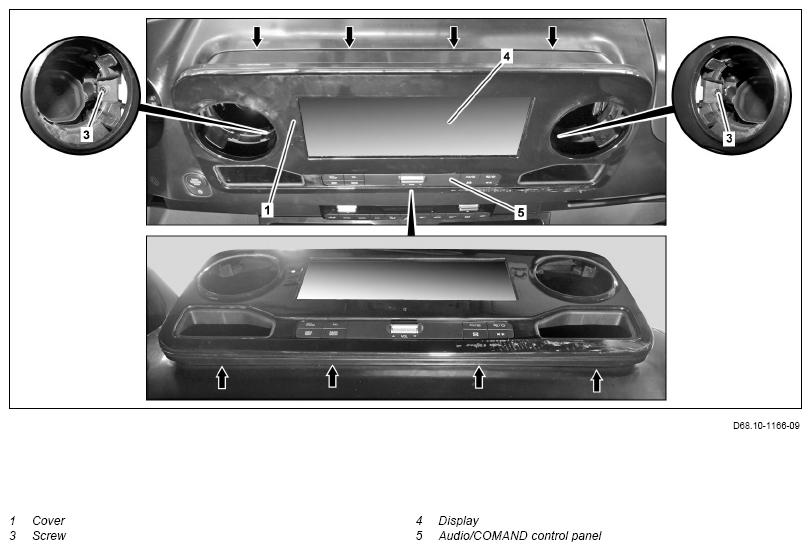

| 3 | Remove bolts (3) | ||
| 4 | Unclip trim (1) from instrument panel (arrows) | Fig 1 | |

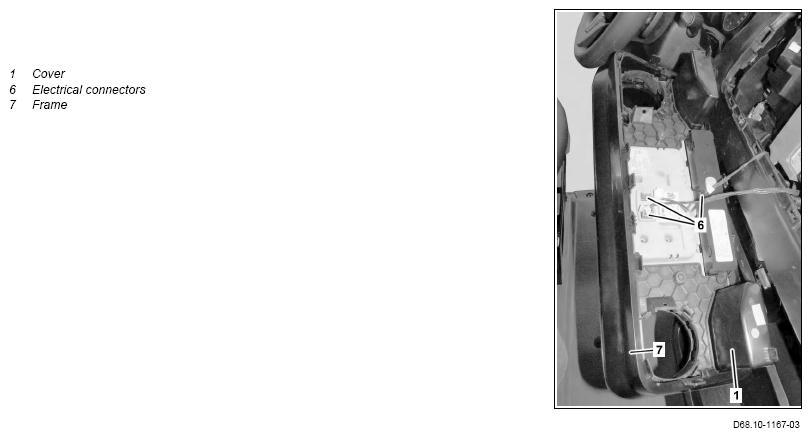

| 5 | Remove trim (1) from the instrument panel until the electrical connectors (6) are accessible | ||
| 6 | Disconnect electrical connectors (6) and remove trim (1) with frame (7), display (4), and Audio/COMAND control panel (5) | ||
| 7 | Remove frame (7) | When replacing trim (1). | |
| 8 | Remove display (4) from trim (1) | When replacing trim (1). | AR82.60-D-7722TS |
| 9 | Remove Audio/COMAND control panel (5) from trim (1) | When replacing trim (1). | |
| AR54.21-D-0504TS | |||
| 10 | Install in the reverse order | ||
| Check | |||
| 11 | Perform function test of display (4) | ||
| 12 | Perform function test of Audio/COMAND control panel (5) |
