Remove/Install Radio Display - Ar82.60-D-7722TS
Model 907

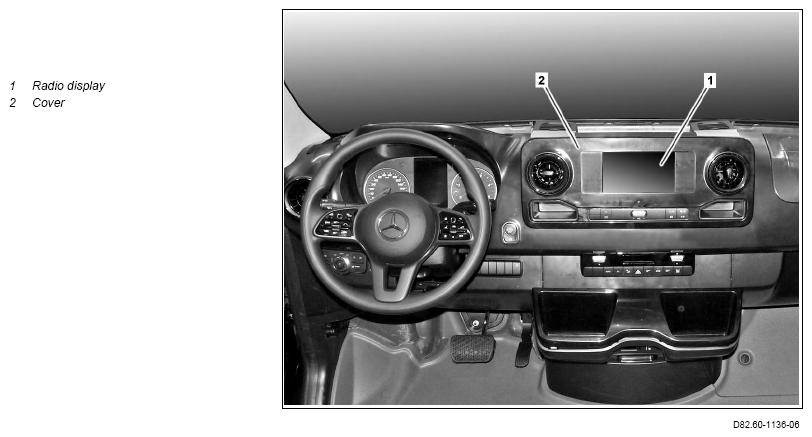

Shown on model 910 with code E1C (Audio 25)
Shown with code E1C (Audio 25)
Shown with code E1C (Audio 25) and removed Audio/COMAND control panel
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Commission radio display (1) using diagnostic system. | If replacing the radio display (1). | |
| AD00.00-D-2000-06TS | |||
| 2 | Remove trim (2). | AR68.10-D-0601TS | |
| 3 | Unscrew bolts (3). | ||

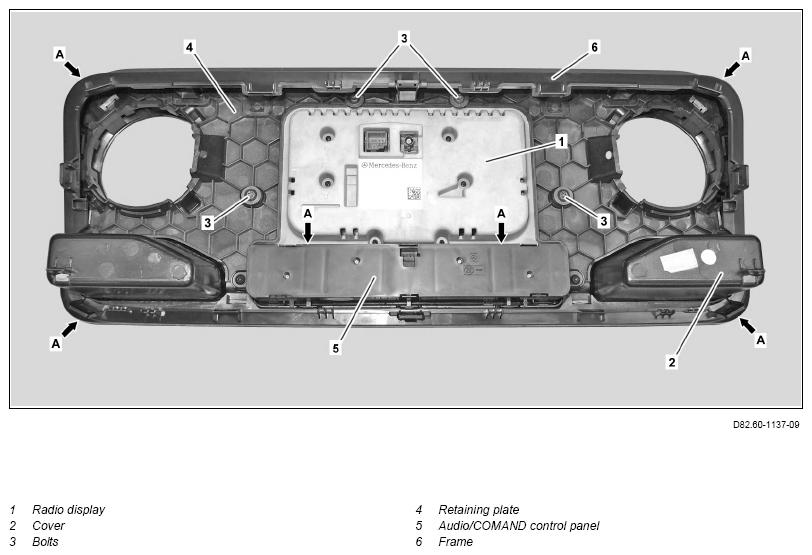

| 4 | Unclip retaining plate (4) from trim (2) (arrows A) and remove. | ||
| Fig 1 | |||

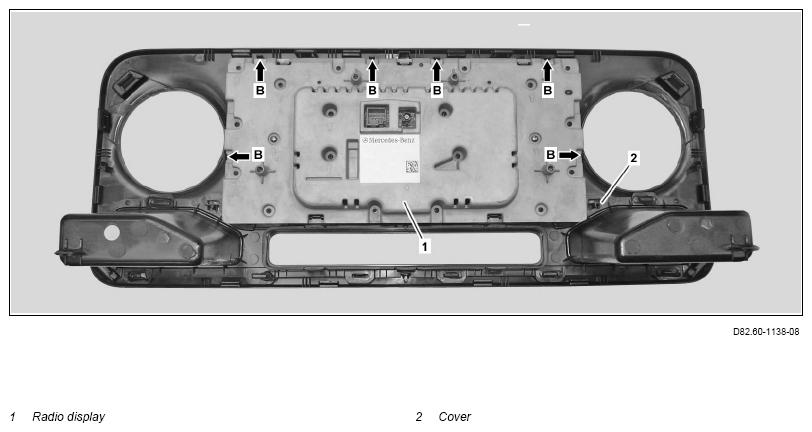

| 5 | Release radio display (1) at retaining tabs (arrows B) and remove from trim (2). | ||
| 6 | Install in the reverse order. |
