Remove/Install Audio/COMAND Control Panel - Ar54.21-D-0504TS
Model 907
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 |
Perform initial startup of Audio/COMAND control panel (1) using vehicle diagnosis system | When replacing Audio/COMAND control panel (1). | AD00.00-D-2000-06TS |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove panel (2) | AR68.10-D-0601TS | |

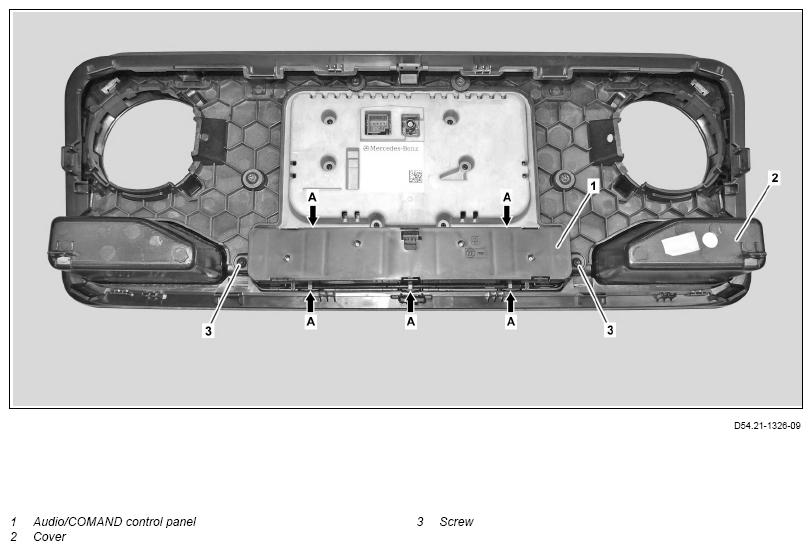

| 4 | Remove bolts (3) | ||
| 5 | Release and remove Audio/COMAND control panel (1) at catch hooks (arrows A) using a suitable tool | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Perform function test of the Audio/COMAND control panel (1) |
