Remove/Install Bottom Section Of Outer Corner Pillar Paneling - Ar64.30-D-5705TS

Model 907.6/7

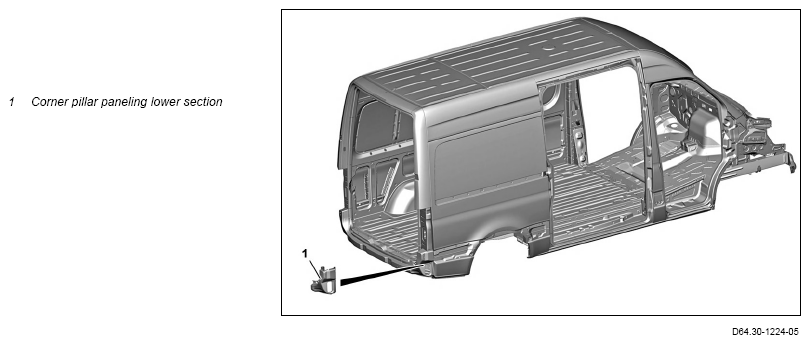

Shown on model 907.633 with code D03 (Roof and rear-end doors, high version), right side of vehicle

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	General information on body repair		AH60.00-N-0001-01A
	Remove
1	Remove all detachable parts in area of repair point.
2	Cover detachable parts that remain in vehicle with welding protection blankets.	Commercially available devices/tools  Welding protection blanket
3	Remove respective corner pillar paneling lower section (1).		AR64.30-D-5705-05TS
		Commercially available devices/tools  Body power jigsaw Rotary wire brush Spot weld milling machine Wet and dry vacuum cleaner 1K-zinc dust paint	*BR00.45-Z-1056-07A
4	Prepare respective corner pillar paneling lower section (1) for installation.		AR64.30-D-5705-06TS
		Commercially available devices/tools  Body power jigsaw Rotary wire brush Hole punching pliers 6 mm Wet and dry vacuum cleaner 1K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
5	Install respective corner pillar paneling lower section (1).		AR64.30-D-5705-08TS
	Measures for preventing damage to vehicles or components when performing electric welding work		AH00.00-N-0005-01A
	000 588 01 84 00 Welder		WS60.00-P-0021K
	000 588 02 84 00 Welder	Commercially available devices/tools  Clamping pliers (Standard) Rotary wire brush Wet and dry vacuum cleaner	WS60.00-P-0022K
6	Clean weld joint and sheet metal flanges with rotary wire brush.	Commercially available devices/tools  Rotary wire brush
7	Remove welding protection blankets.	Commercially available devices/tools  Welding protection blanket
8	Clean repair area.	Commercially available devices/tools  Wet and dry vacuum cleaner
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
9	Prime repair area with a primer filler. Notes on paintwork repairs	Use only primer filler approved by Daimler AG: http://xentryportal.mercedes-benz.com	AH98.00-P-9408-02A
10	Seal seam after repair.	Supplement standard seals with sealant.	AR97.10-D-4000TS
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
11	Paint repair area and adjacent surfaces. Notes on paintwork repairs	Use only paints approved by Daimler AG: http://xentryportal.mercedes-benz.com	AH98.00-P-9408-02A
12	Supplement cavity preservation		AR97.20-D-1500TS
13	Install all detachable parts in area of repair point.
