Install Corner Pillar Paneling Outer Bottom Section - Ar64.30-D-5705-08TS

	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Measures for preventing damage to vehicles or components when performing electric welding work		AH00.00-N-0005-01A
	000 588 01 84 00 Welder		WS60.00-P-0021K
	000 588 02 84 00 Welder		WS60.00-P-0022K

Model 907.6/7

The following operation steps are shown on model 907 for the right side of the vehicle and must be similarly performed on the left side of the vehicle in the event of damage.

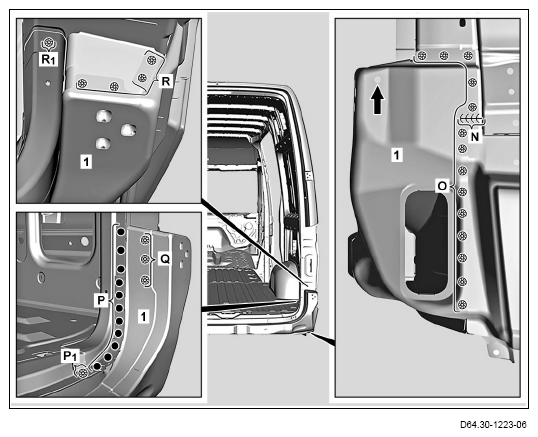

1. Install, fit and fix in place corner pillar paneling lower section (1).

   Align corner pillar paneling lower section (1) with hole (arrow).

2. Corner pillar paneling lower section (1) (area P).
3. Corner pillar paneling lower section (1) (areas R, R₁ , P 1, Q and O).

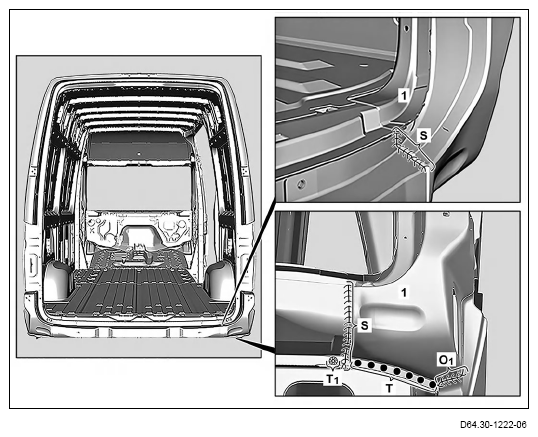

4. Corner pillar paneling lower section (1) (area N).
5. Corner pillar paneling lower section (1) (area T).
6. Corner pillar paneling lower section (1) (areas S, O₁ ).
7. Corner pillar paneling lower section (1) (area T₁ ).
8. Clean weld joints.
9. Remove shavings.
